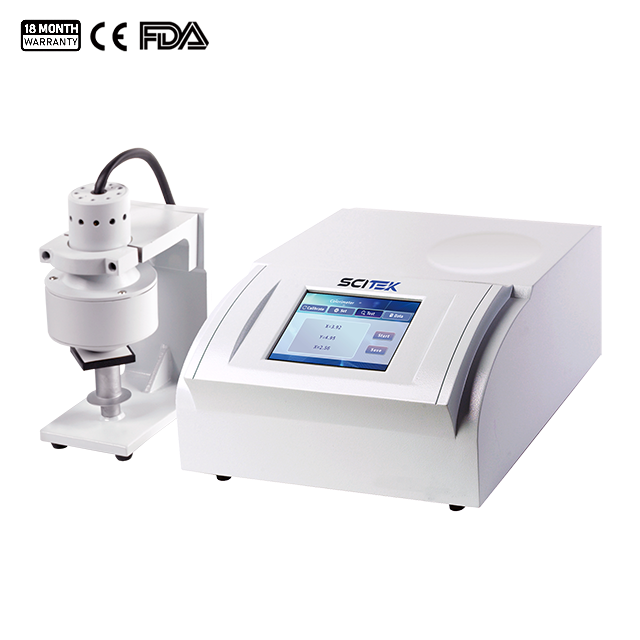

Benchtop Colorimeter CM-B2S

Model : CM-B2S

Stability : Ah(y)s0.2
Display : 7 inch color touch LCD
Interface : USB , U disk
Data storage : 1000 sets
The benchtop colorimeter is suitable for color testing of liquids, solids, coatings, textiles and many other materials.
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop Colorimeter Feature:

  1. The colorimeter is a widely congested and easily operated colorimeter, which is suitable for measuring

  2. The reflected color of various objects, and can test the whiteness, chromaticity and color difference between two objects.

  3. Color touch screen with printing output, upper computer output, U disk output, data storage, data check function.

  4. This series of instruments can be widely used in textile, dye, printing and dyeing, paper making,

  5. Building materials, enamel, food, printing etc.

Benchtop Colorimeter Specifications:

ModelCM-B2S
lluminant0/d
Spectrum conditionsThe overall response is equivalent to tri-stimulus values X, Y, and Z calculated in corre sponding functions under CIE standard illuminant D65 and 10°view of field.
Color representationsColor: X, Y, Z; Y, x, y; L*, a*, b*; L, a, b; L*, U*, v*; L*, C*, h
Color difference: Δ E (L*a*b*); ΔE (L a b); ΔE (L*u*V*); ΔL*, ΔC*, ΔH*
White:
(a) Ganz whiteness: Binary linear whiteness recommended by CIE.
(b) Blue-light whiteness: W＝B
(c) Tabble whiteness: It is recommended by ASTM (American Society for Testing and Mate rials); W＝4B-3G
(d) Hunter whiteness: (GB/T 5950-1996) Wh=100-[(100-L)2+a2+b2]0.5
Yellow index: Yi=100(1.3013X-1.1498Z) (ASTM E 313)
Repeata bilitys(Y)≤0.3; s (x), s (y) ≤0.001; ΔE(L*a*b*)≤0.2
StabilityAh(y)s0.2
Display7 inch color touch LCD
InterfaceUsB, U disk
Data storage1000 sets
Power supply220V+22V, 50Hz+1Hz, 30W
Shipping Size (WxDxH)(mm)500x440x420
N.W/G.W. (kg)7.8/9.5
