Features:
1. Channel independence: The channels are completely independent, and each channel can choose different specifications of hoses, set different working modes, liquid volume, speed, time, etc
2. Working modes: flow mode, timing and quantitative mode, timing and speed mode, quantitative and speed mode
3. Channel closure: Any channel can be closed through the interface, and once closed, the channel cannot be set or controlled
4. Calibration function: Each channel is independently calibrated and calibration parameters are stored
5. Online speed regulation: adjustable speed and flow rate during operation
6. Reminder function: Real time display of Max flow available for hoses of different specifications;
Dynamically display the operating parameters of each channel
7. External control start stop: External control level signal or pulse signal is used to achieve independent start stop control of each channel
8. Communication control: RS485/USB optional, touch settings for address and baud rate
9. Status output: Each channel independently outputs start stop and direction status

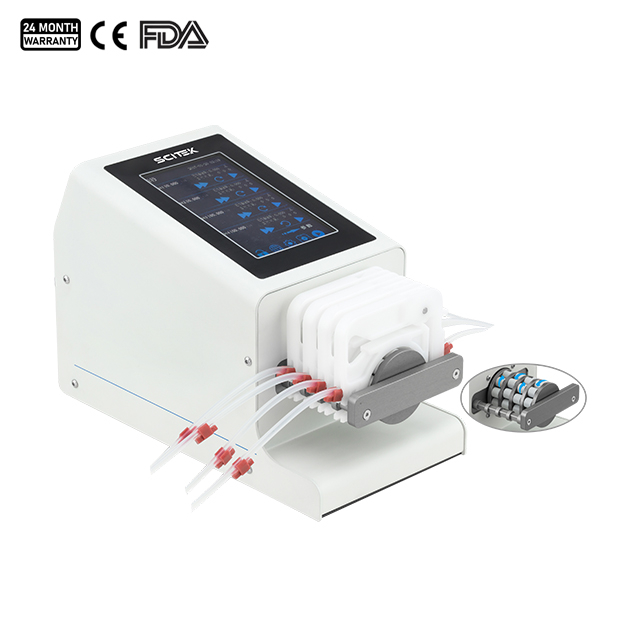

Basic Perstaltic Specifications:
Model | DPP-102CP | DPP-103CP | DPP-104CP |
Channel | 2 | 3 | 4 |
Speed Range | 0.1-150rpm Resolution: 0.01rpm | 0.1-150rpm Resolution:0.01rpm | 0.1-150rpm Resolution:0.01rpm |
Quantitative Range | 0.1L~9999.999L | 0.1L~9999.999L | 0.1L~9999.999L |
Timing Range | 0.1s~999.9hr | 0.1s~999.9hr | 0.1s~999.9hr |
Number of Cycles | 0~65535, 0 represents infinite loop | 0~65535,0 represents infinite loop | 0~65535,0 represents infinite loop |
External Size | 252.5x126x165 (mm) | 252.5x126x165 (mm) | 252.5x126x165 (mm) |
Applicable Power Supply | AC 100~240V 50/60Hz 65W | AC 100~240V 50/60Hz 65W | AC 100~240V 50/60Hz 65W |
Working Environment | Temperature 0-40°C, humidity 20%-80% | Temperature 0-40°C, humidity 20%-80% | Temperature 0-40°C, humidity 20%-80% |
Protection Level | IP31 | IP31 | IP31 |
Net Weight | 2.30Kg/5kg | 3.30Kg/6kg | 4.35Kg/7kg |
Package Size | 380x230x270 | 380x230x270 | 380x230x270 |
Applicable Hoses (inner diameter and wall thickness)( mm) | 0.5*0.8 | 1*1 | 2*1 | 3*1 |
Reference Flow Range | 0.0013~2ml/min | 0.006~9ml/min | 0.022~33ml/min | 0.032~48ml/min |
