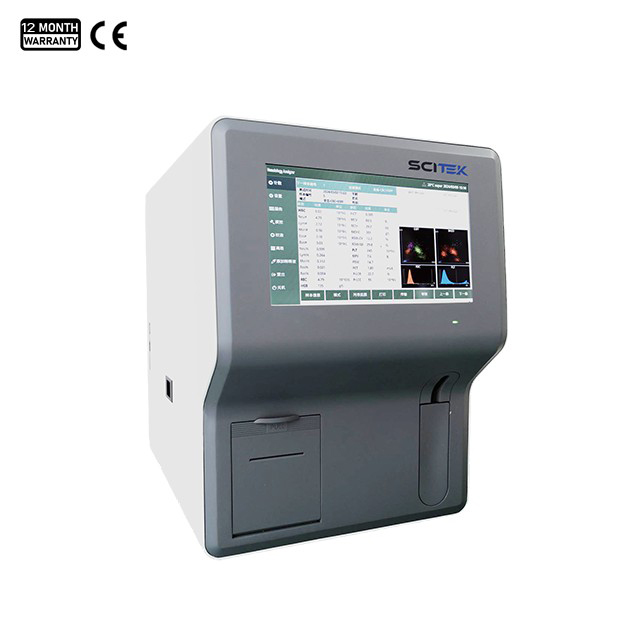

Automatic 5-Part Hematology Analyzer

HA-6560 integrates cutting-edge flow cytometry optics and intelligent anti-interference algorithms with exceptional cost-efficiency, enabling comprehensive screening of 25 parameters and precise 5-part white blood cell differentiation. It is widely used in primary care settings and private clinics for infection differentiation, anemia and platelet evaluation, as well as for allergy & parasitic infection screening.

Automatic Hematology Analyzer Feature:

1. Large 10.1-inch touchscreen and built-in printer, supports simultaneous connection of an external keyboard, mouse, and PC.

2. Unique fluid path design eliminates wasteful residual diluent and lysing agent, saving on consumable costs.

3. Long-life cylindrical platinum electrodes and designed for a minimal hardware failure rate, ensuring stable, long-term operation.

4. Semiconductor laser scattering technology precisely captures the size and internal characteristics of white blood cells.

5. Advanced optical methodology directly and independently measures basophils, ensuring highly reliable 5-part white blood cell differential results.

6. Ultra-small ruby ​aperture/focused flow cell, significantly enhances the sensitivity of capturing minute photoelectric signals, ensuring high detection rates for anomalous or trace samples.

7. Intelligent adaptive scatter plot classification technology combined with floating landmark technology, enables precise segmentation of cell populations, reducing the need for manual review.

8. Digital filtering algorithms and cell overlap correction technology enable multi-segment replicate counting, effectively eliminating interference from bubbles and debris, ensuring test repeatability.

9. Fully automated startup/shutdown sequence, including scheduled automatic cleaning of the fluid paths.

10. Integrates one-touch intelligent anti-clogging and unclogging technology (utilizing high-pressure cauterization, back-flushing, and soaking) to enable automatic recovery with a single command.

Semiconductor Laser Scattering Technology	Dual-Sheath Hydrodynamic Focusing Technology

Automatic Hematology Analyzer Specification:
