Availability: | |
---|---|
Quantity: | |
Model | HA-6550 |
---|---|
Principles | Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical staining method for WBC differention |
Impedance method for WBC, RBC and PLT test | |
Cyanide free colorimetry for HGB test | |
Parameters | 25 reportable parameters: WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
4 research parameters: ALY#, ALY%, LIC#, LIC% | |
3 histograms for WBC, RBC and PLT | |
One 3D scattergram and three 2D scattergrams for WBC differention | |
Sample Volume | 20μL |
Consumables | DIL-A: 20L |
LYA-1: 500ml | |
LYA-2: 500ml | |
LYA-3: 1L | |
CLE-P: 50ml | |
Language | Chinese, English, Spanish, French, Russian, Portuguese |
Linearity Range | WBC: 0.00-30Ox10^9/L RBC: 0.00-8.5x10^12/L HGB: 0-250g/L PLT: 0-3000x10^9/L HCT: 0-67% |
Repeatability | WBC≤2.5% (4.0-15.0×10^9/L RBC≤1.5% (3.5-6.0×10^12/L) HGB≤1.5% (110-180g/L) MCV≤1% (70-120fL) PLT≤6.0% (100-149×10^9/L) |
PLT≤4.0%(150-500×10^9/L) | |
Communication | LAN port supports HL7 protocol |
Support bi-directional LIS | |
Sample Mode | Whole blood, capillary whole blood and pre-diluted modes |
Throughput | Up to 90 tests per hour |
Printout | External printer,compatible with multiply laser /inkjet printers, compatible with various formats and user-defined formats |
Storage | Up to 100,000 records |
Power Supply | 100V-240V, 50/60Hz, ≤200VA |
Sizes(W×D×H)(mm) | 650mmx550x610 |
Shipping Size (W×D×H)(mm) | 870x840x770 |
N.W./G.W. (kg) | 58/85 |

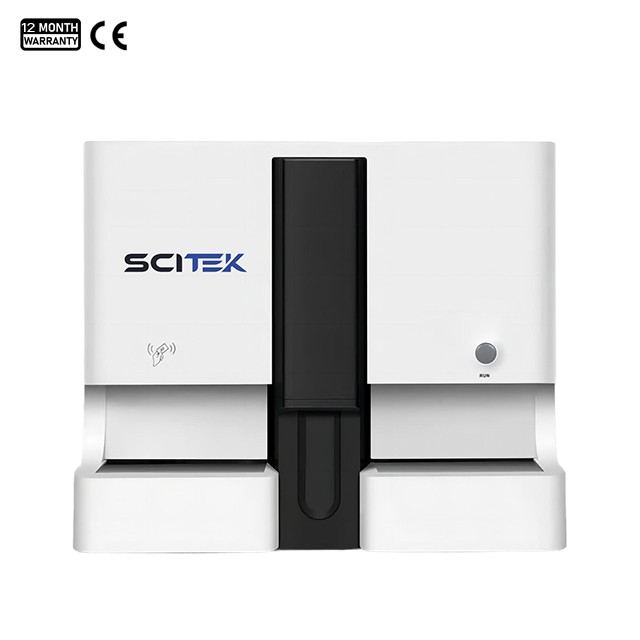

The HA-6550 is an advanced hematology analyzer dedicated to the field of hematology for diagnosing and monitoring a wide range of blood-related diseases. The hematology analyzer combines the latest technology with innovative features designed to provide accurate, reliable and efficient measurement of blood parameters.
The HA-6550 blood test result analyzer can measure multiple blood parameters simultaneously, including hematocrit, hemoglobin concentration, platelet count, erythrocyte distribution width, etc., providing doctors with comprehensive information on blood conditions.
The excellent analysis speed of the blood test result analyzer delivers results in a short period. It also features automatic sample processing and mixing functions to improve test accuracy.
Large storage capacity supports the storage of 100,000 test records for long-term monitoring and case studies.
29 parameters, including 25 reportable parameters
3D scatter plot for accurate identification and pathological sample labeling
Supports bi-directional LIS
