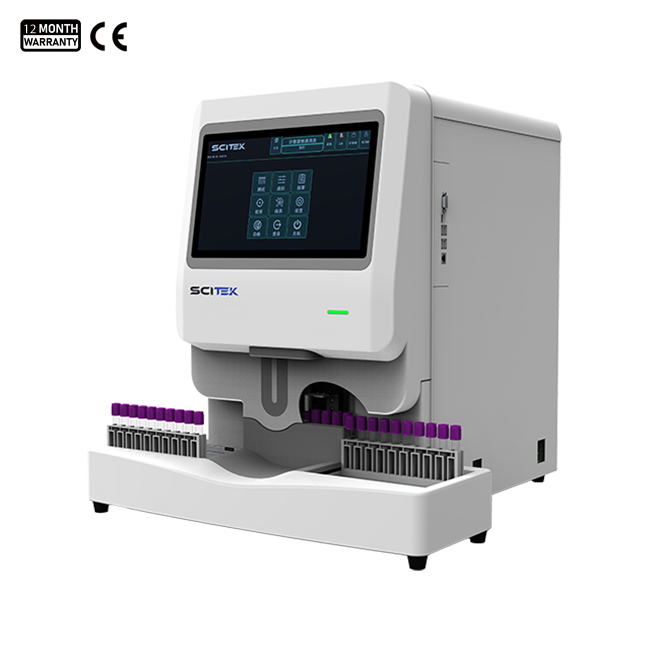

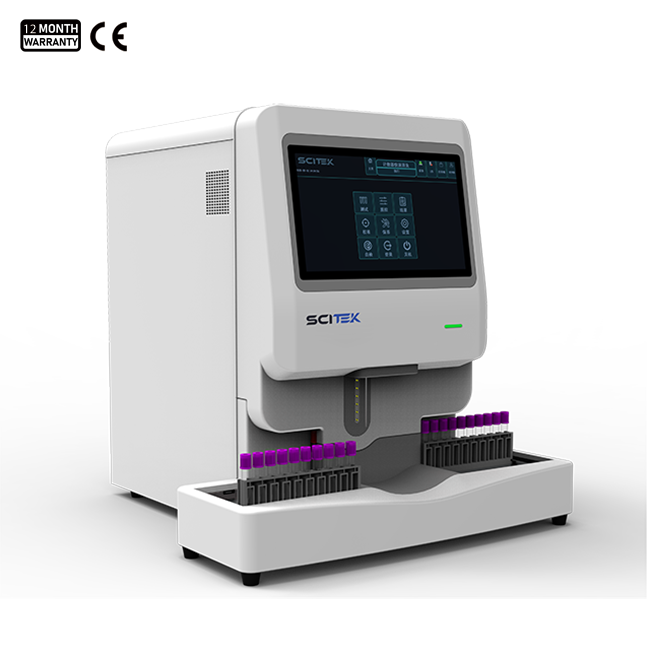

5-Part Auto Hematology Analyzer HA-6590

Model : HA-6590

Throughout : ≥90 sample per hour
Operation Model : 14 inch colorful touch screen
Sample Type : Whole Blood, Peripheral Blood, Predilute
Sample Volume : Whole Blood≤10μL, Predilute≤20uL

Our 5-Part auto hematology analyzer allows for economical, efficient and maintenance-free hematology analysis.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

5-Part Auto Hematology Analyzer Specifications:

Model	HA-6590
29 Parameters	WBC, LYIH, MON#, NEU#, EOS#, BAS#, LYI%, MON%, NEU%, EOS%, BAS%, RBC HGB, MCV, HCT, MCHMCHC, RDW-SD, RDW-CV PLT, MPV, PDW, PCT, P-LCC, P-LCR, LX, LY, NX, NYALY#,ALY%,LIC#,LIC%,NIL#,NIL%
Research Parameters	ALY#,ALY%,LIC#,LIC%,NIL#,NIL%
Result Display	Combined scatter chart, ≥ 4 histograms
Analysis Methods	CBC, CBC+DIFF, HGB, RBC, WBC
Throughout	≥90 sample per hour
Operation Model	14 inch colorful touch screen, keyboard/mouse
Languages	English, Chinese, Support customization of other language
Sample Type	Whole Blood, Peripheral Blood, Predilute
Sample Volume	Whole Blood≤10μL, Predilute≤20uL
Quality Control	Various quality control, L-J quality control chart, floating quality control for various requirements
Auto Sampler	Sample capacity: 50,supports emergency analysis
Printout	External laser printer, inkjet printer, various printout formats and user-defined formats
Data Transportation	USBx4, RS232, LAN, HDMl, Duplex LIS
Storage Capacity	More than 200,000 analysis results, including numeric and graphical information The test data can be exported to excel format through USB interface
Other Function	360°rotating bar code scanning
Power Supply	AC100-240V, 50/60Hz
Sizes(W×D×H)(mm)	710x640x670
Shipping Size(W×D×H)(mm)	825x740x885
N.W./G.W. (kg)	57/76

5-Part Auto Hematology Analyzer Features:

Automatic Hematology Analyzer with Auto Sampler
5 part differentiation, 29 parameters
1 Scattergrams, 4 Histograms
Up to 90 samples per hour"
Auto sample for option
Optical solid state LASER scattering
Original reagent, control and calibration
Optical solid state LASER scattering Wide angle light scatter. High efficient light collector (patented) Electrical Impedance. Double hydrodynamic focusing


Laser scattering combined with histological techniques for classification Using semiconductor lasers, the laser flow cytometry technology combined with impedance and cytochemical techniques can provide information on cell size, nuclear, and cytoplasmic granularity and complexity, leading to more accurate classification and counting. High-efficiency laser energy focusing technology Utilizing high-efficiency laser energy focusing, combined with Fresnel lens to focus the laser signal, effectively avoiding interference from other scattered light signals, while also achieving stronger and more stable signals to ensure accurate classification.

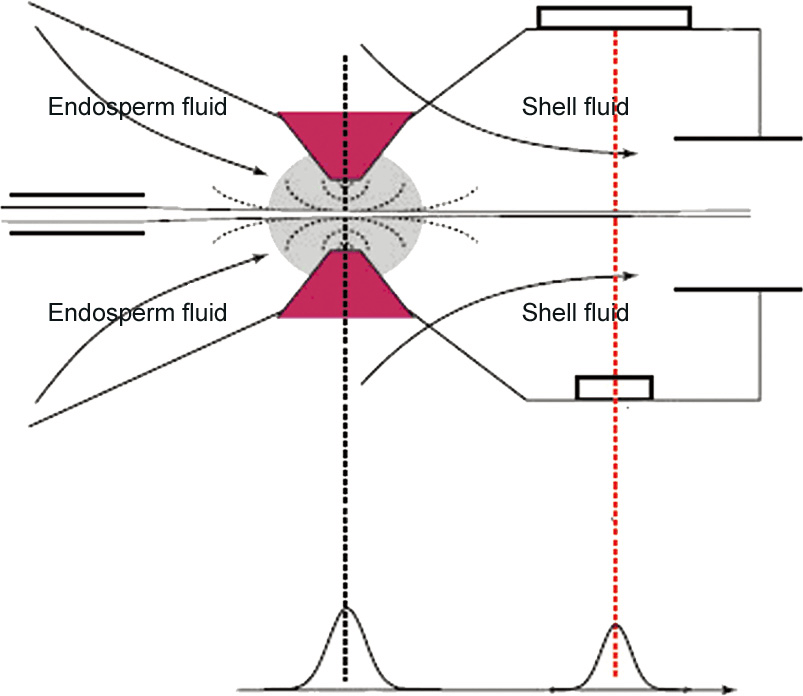

Unique double sheath flow focusing fluid technology The sheath stream tightly envelops the cells, arranging the blood cells along the axis of the sheath stream, and individually passing through from the center of the detection channel under the action of hydrodynamic forces. The unique jacket flow device ensures that cells are quickly removed after passing through the counting channel, preventing the formation of eddies, thus making the cell signals more reliable.
Float Classification Technology White blood cells of the same type have a high degree of similarity, showing a clear clustering pattern, with a relatively fixed position on a scatter plot. However, due to individual differences among the population, their positions on the scatter plot may fluctuate. Floating classification technology can automatically adapt to changes in the scatter plot, effectively identifying the boundaries of various cell types, and obtaining more accurate results for white blood cell classification. Excellent abnormal cell alarm function Fragmentation, Plasmodium, erythrocyte tolerance, platelet aggregation and nucleated red blood cells, atypical lymphocytes and basophils, monocytes, promyelocytes, hypochromic red blood cells, immature cells, undetermined leukocytes, abnormal scatter plots, and customized parameters for alarms.

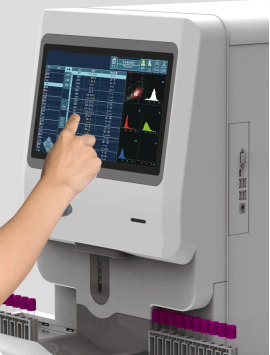

Outstanding human-computer interaction and data management system ● High-definition screen display touch screen. ● Rich exception sample alarm prompts, supporting user-defined alarms ● Parameters and ranges Rich and flexible quality control applications, L-J quality control, floating quality control satisfies each Seeds quality control application requirements. ● Customizable printing templates can be added with parameters as needed. ● Supports bidirectional LIS communication, supporting wireless transmission via WiFi, Bluetooth, etc. According to, it realizes wireless printing, LIS connection, and laboratory local area network. ● When an open proof, the flow lamp prompts the user to prevent hands and safer.
Full-automatic intelligent technology ● Compatible with both automatic and manual open loading sample modes, automatic model It supports continuous and uninterrupted appending, and emergency samples can be inserted at any time First detect. No need to press the start button, automatically recognize and activate intelligent analysis. ● Fully automatic sample injection simulates the manual sample inversion and mixing method. ● Intelligent WBC floating boundary technology, the floating classification technology can be self- Adaptively adjust to changes in scatter plots, effectively identifying the edges of various cells The world, to obtain more accurate white blood cell classification results. ● Automatic detection of clogged holes and unclogging. ● 360° rotating tube design for barcode scanning, automatic barcode reading, throughout No human intervention required.
