Model | HA-5000 |
---|---|
21 Parameters | WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
Histogram | Histogram for WBC, RBC, PLT |
Method | Coulter principle |
Colorimetry hamoglobin determination | |
Throughput | 60 tests/hour |
Display | 10.4″ color touch screen display |
Language | English, Chinese, Portuguese, Hindi, Spanish, French, Thai, Russian, Vietnamese |
Sampler Volume | Predilute 20μl |
Whole blood 10μl | |
Intelligent Reagent Management Function | Reagent information and residual display |
Carryover | WBC≤1.5% |
RBC, HGB<1.0%, PLT≤2% | |

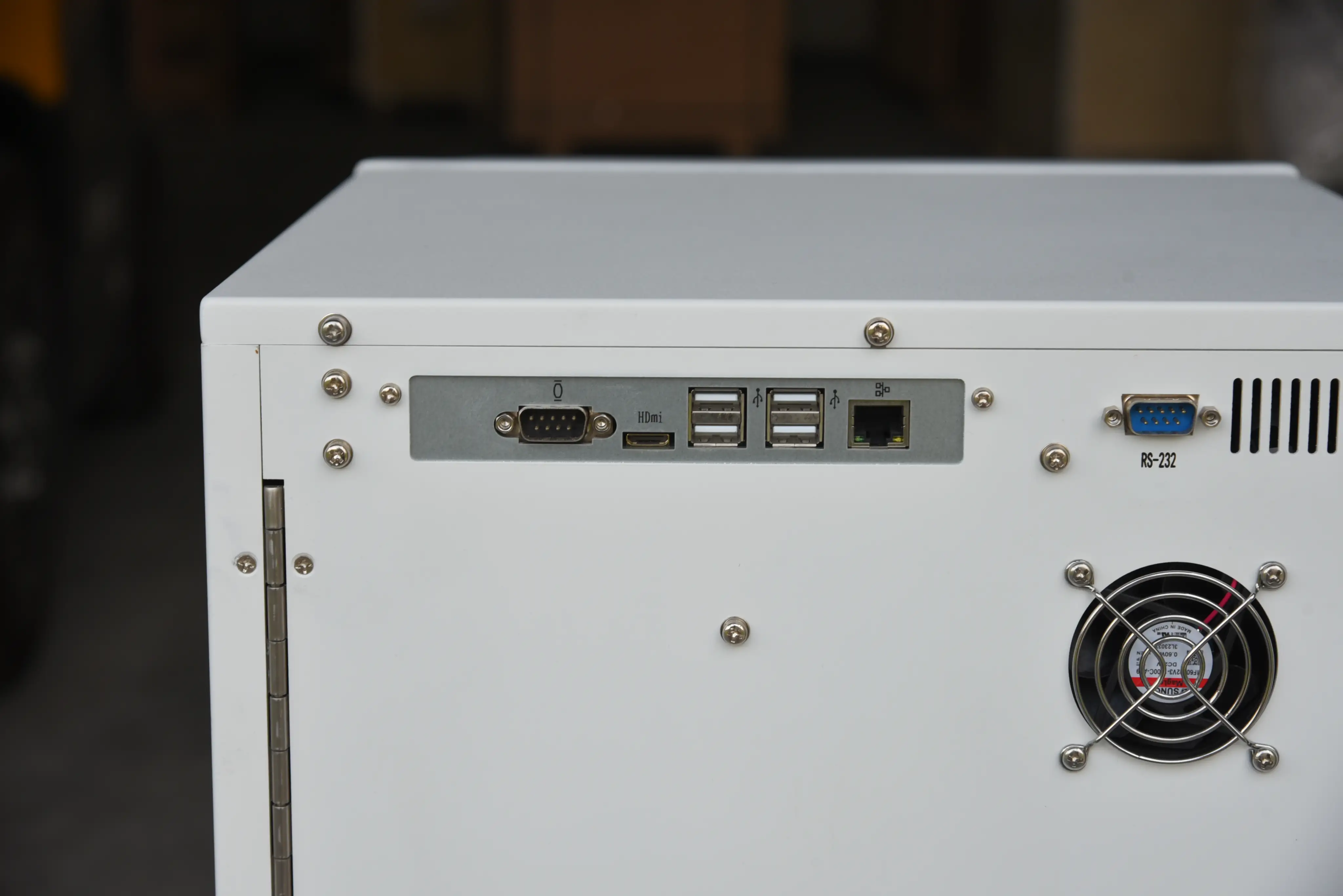

Input and Output | 1 RS232, keyboard, Mouse |
4USB, LAN | |
Printout | External thermal printer |
Option | Barcode scanner, LIS |
Operating Environment | Temperature 10-35℃ |
Humidity ≤90% | |
Data Storage | Over 200,000 sample results (with histograms) |
Power Supply | AC100-240V, 50/60Hz |
Sizes(W×D×H)(mm) | 354x430x440 |
Shipping Size (W×D×H)(mm) | 550x600x650 |
N.W./G.W. (kg) | 17/27 |
Performance | ||
---|---|---|
Parameter | Linearity Range | Precision(CV%) |
WBC(109/L) | 0.0-100.0 | 2.0(4.0-10.0) |
RBC(1012/L) | 0.00-9.99 | 1.5(3.50-5.50) |
HGB(g/L) | 0-300 | 1.0(110-160) |
PLT(109/L) | 0-1000 | 5.0(100-300) |

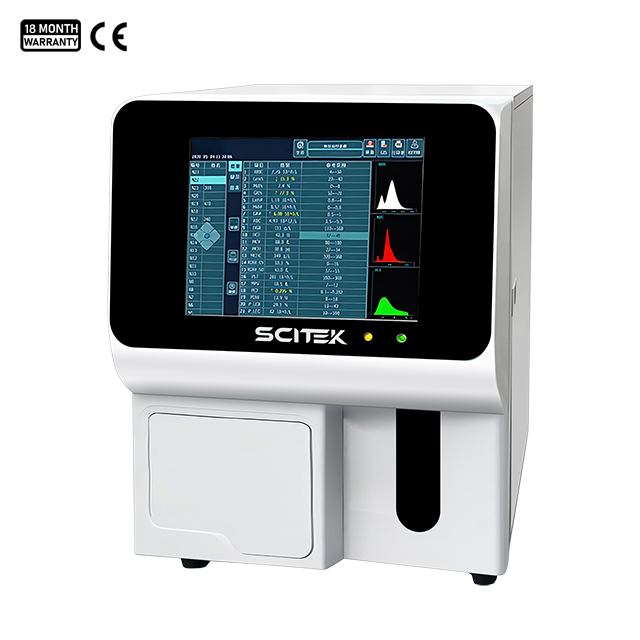

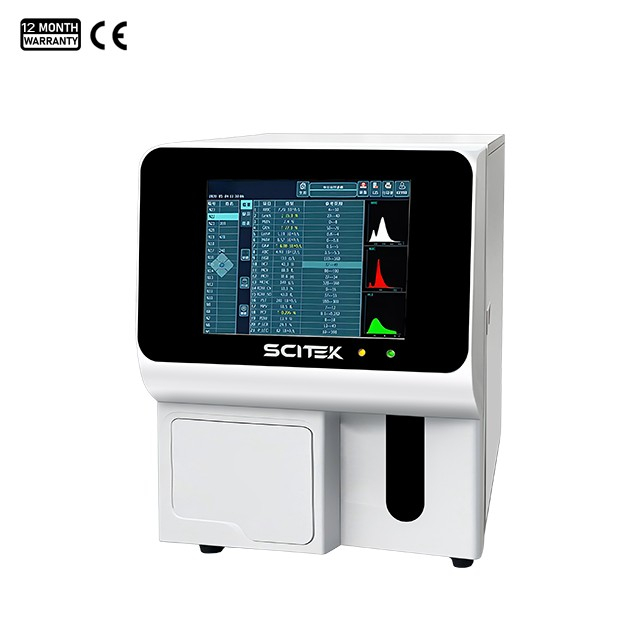

The HA-5000 auto hematology analyzer is a medical laboratory instrument designed for the rapid and accurate analysis of blood samples, particularly for determining various blood cell parameters.
Complete Blood Count (CBC): The HA-5000 hematology analyzer provides a comprehensive CBC, which includes the quantification of various blood cell types, such as red blood cells, white blood cells, and platelets.
High Throughput: It offers efficient and high-throughput testing, making it suitable for laboratories with a high sample load. It can process a large number of blood samples in a relatively short time. Up to 60 samples/hour.
3-Part Differential: Many HA-5000 hematology analyzer provide a 3-part white blood cell differential count, which categorizes white blood cells into neutrophils, lymphocytes, monocytes, eosinophils, and basophils.
The hematology analyzer accurately measures hemoglobin levels in blood, providing essential information for diagnosing anemia and other blood disorders.

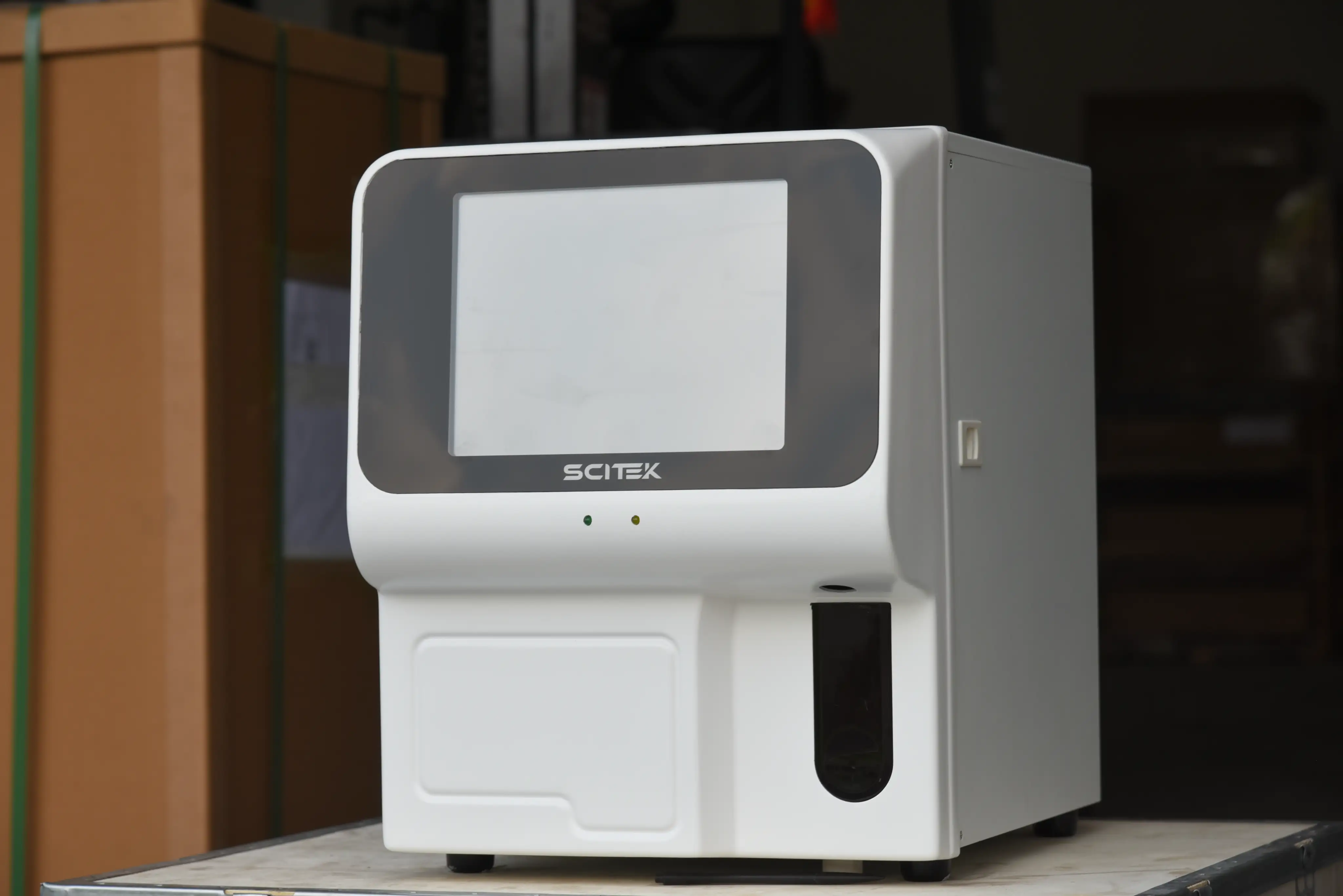

HA-5000 3-Part auto hematology analyzer with a high-definition display for more intuitive operation and searching of test results
Quality control features to ensure the accuracy and reliability of test results.
Barcode scanning capabilities for accurate sample identification, reducing the risk of errors.
HA-5000 3-Part auto hematology analyzer include automated cleaning and maintenance routines to simplify upkeep and prevent cross-contamination.
