Temperature : 1000 ℃ Tray Material : 304 stainless steel Consumption : 10.5 kW, Three-phase current. Temperature Control : K-type thermocouples Quantity : 6 pcs with a pitch of 125 mm Ashing calcining can use for heating during processes such as quenching, annealing and tempering.

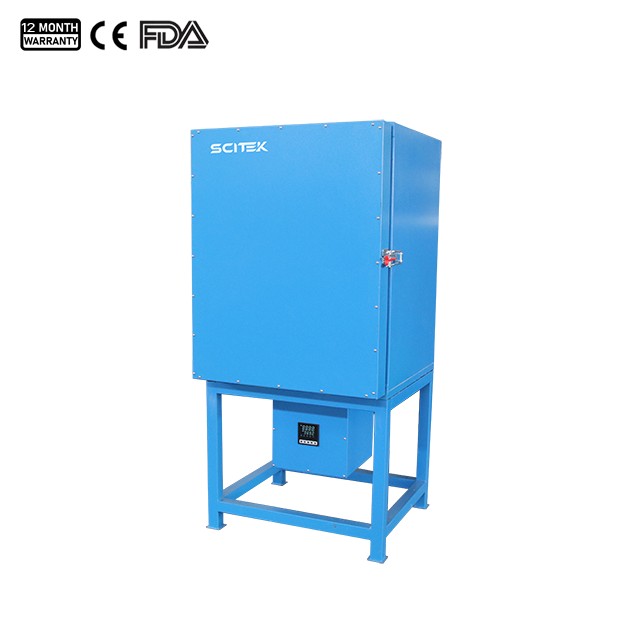

Ashing calcining and roasting furnace is available in a range of sizes. It can be used for elemental analysis and determination in laboratories, industrial and mining enterprises, scientific research and other institutions and heating during quenching, annealing, tempering and other heat treatment.
Ashing Calcining and Roasting Furnace Feature:
1. Annealing with steel insulated cathodes.
2. Large capacity.
3. Adaptation to industry standards.
4. Easy to maintain and operate.
5. The chamber is built with refractory brick with high-temperature refractory mortar. It has the characteristics of less heat storage, less pollution and less heat dissipation. Compared with traditional refractory clay materials, it has the advantages of light weight and fast temperature rise.
Ashing Calcining and Roasting Furnace Specification:
Model
RF-50
Construction
Cabinet
2 mm stainless steel grade 304, lined with fire bricks door
covered vermiculite insulation
Exterior
Outer blue color Hammerdin enamel, installed on the floor
of porcelain tiles 51×51×2.6 mm. dimensions
Inner Size (W×D×H)
600×600×810 mm
Heating Element
Elements
“A1” Kanthal spiral elements laid in the recesses of the furnace walls.
The elements consume
Consumption
10.5 kW, Three-phase current.
Temperature Control
Electronic automatic control 1000 ℃, K-type thermocouples.
Solid State Relays with Proportional-Integral-Derivative (PID) regulation.
Countdown timer for 24 hours
Racks
Material
Made of a 25×25×3 mm 304 stainless steel corner
Quantity
6 pcs with a pitch of 125 mm
Tray
Material
Made of 2 mm sheet
304 stainless steel
Size
500×500×50 mm (W×D×H)
Overall Size (W×D×H)
800×840×1700 mm
Power Supply
AC 380 V, 50/60 Hz
Package Size (W×D×H)
1030×1100×1930 mm, 450 kg
Ashing calcining and roasting furnace is available in a range of sizes. It can be used for elemental analysis and determination in laboratories, industrial and mining enterprises, scientific research and other institutions and heating during quenching, annealing, tempering and other heat treatment.
Ashing Calcining and Roasting Furnace Feature:
1. Annealing with steel insulated cathodes.
2. Large capacity.
3. Adaptation to industry standards.
4. Easy to maintain and operate.
5. The chamber is built with refractory brick with high-temperature refractory mortar. It has the characteristics of less heat storage, less pollution and less heat dissipation. Compared with traditional refractory clay materials, it has the advantages of light weight and fast temperature rise.
Ashing Calcining and Roasting Furnace Specification:
Model
RF-50
Construction
Cabinet
2 mm stainless steel grade 304, lined with fire bricks door
covered vermiculite insulation
Exterior
Outer blue color Hammerdin enamel, installed on the floor
of porcelain tiles 51×51×2.6 mm. dimensions
Inner Size (W×D×H)
600×600×810 mm
Heating Element
Elements
“A1” Kanthal spiral elements laid in the recesses of the furnace walls.
The elements consume
Consumption
10.5 kW, Three-phase current.
Temperature Control
Electronic automatic control 1000 ℃, K-type thermocouples.
Solid State Relays with Proportional-Integral-Derivative (PID) regulation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
