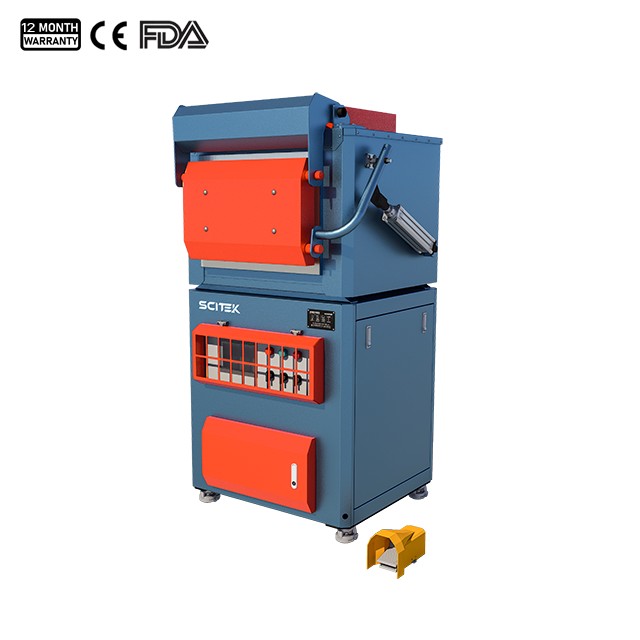

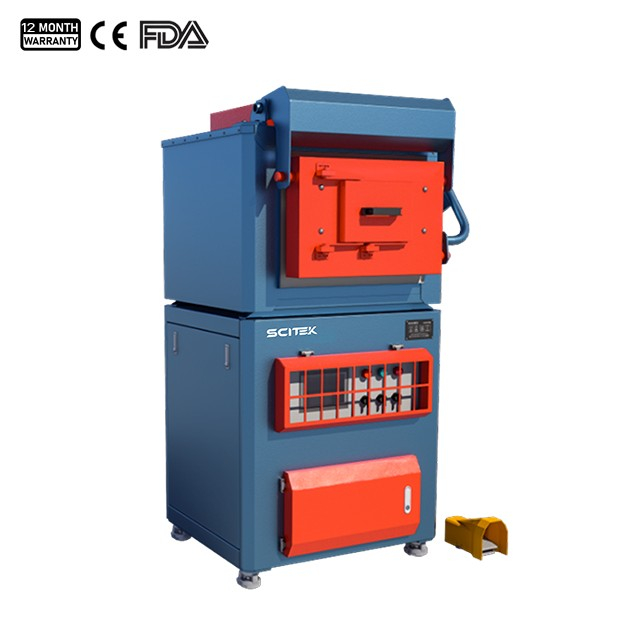

Cupellation Furnace

Experiments and production in fields such as electronics, ceramics, metallurgy, glass, and new materials development are mainly used for ash blowing refining in pyrometallurgical assays.

Cupellation Furnace Feature:

1. Cabinet is zinc anneal sheet steel, lined with fire bricks and backed with Vermiculite Insulation board. The furnace is mounted on a console fabricated from Zinc Anneal sheet and the external surface is electrostatic spraying.

2. Refractory Lining: Hot face of alumina fire-brick backed with insulating fire-brick.

3. Temperature Control: Electronic, Automatic control 1200 °C, k-Type Thermocouple.

4. Electrical Requirements: The furnace is fitted with a 10 AMP single phase cord and plug top.

5. Electrical load: 5 AMPS.

6. Door Operation: Pneumatic rising,  operated by foot control.

Cupellation Furnace Specification:
