Thermal Couple : K type Pre-Vacuum Degree : -0.1 MPa Shaking Mode : Convolution Flow Meter Range : 0.16–1.6 cubic meters/hour Short-Term Maximum Temperature : 1100 ℃ Chamber Material : 310S high-temperature stainless steel Designed for heating (sintering) products in a pre-vacuum atmosphere, and also for use without pre-vacuuming, using a protective gas washing furnace to heat products under an atmosphere.

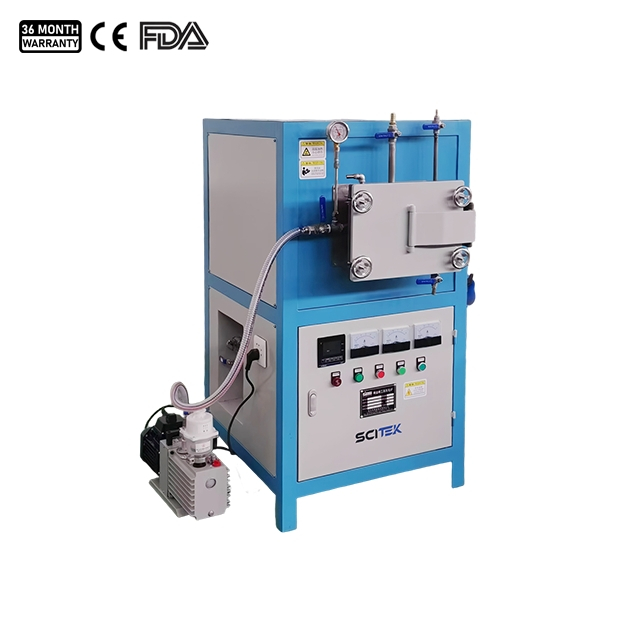

This vacuum atmosphere furnace can be used for heating (sintering) products under the protection of a pre-vacuum atmosphere. It can also be used without pre-vacuuming and directly using a protective gas washing furnace to heat under the protection of an atmosphere. Mainly used for clean heating treatment of products in a protective atmosphere or the user's product has corrosive substances such as acidic and alkaline atmosphere, water, carbon and hydrocarbons, etc. during the heating process.
2. The system is equipped with a vacuum pressure gauge,a 304 stainless steel two-piece ball valve,vacuum hoses, rigid pipes, clamp-type quick-release seals, an exhaust filter, an exhaust oil mist filter, and a vacuum pump.
3. Standard vacuum pump is a ZX-2 two-stage,direct-coupled vacuum pump with an oil-return mechanism. The ultimate vacuum degree is 6×10-2 Pa.
4. The furnace mouth is equipped with a water cooling device,and the cooling water is inlet and outlet from the bottom.
5. The furnace tank and furnace body adopt a detachable structure,which is convenient for maintenance of the electric furnace.
6. Temperature control instrument: PID adjustable, 30-segment programmable, intelligent instrument temperature control.
7. Safety & Environmental Protection: The temperature control system has multiple safety protection measures such as short circuit, overcurrent protection, broken couple, overtemperature alarm and automatic power cut-off protection; the vacuum system has leakage protection, short circuit protection, overcurrent protection, motor overload protection and exhaust port oil mist filtration.
Vacuum Atmosphere Furnace Specification:
Model
MF-10-7P
Short-Term Maximum Temperature
1100 ℃
Heating Element
Resistance wire (0Gr25Al7Mo2)
Shaking Mode
Convolution
Thermal Couple
K type
Chamber Material
310S high-temperature stainless steel
Thermal Control Accuracy
±1 ℃(After steady state)
Flow Meter Range
0.16–1.6 cubic meters/hour
Pre-Vacuum Degree
-0.1 MPa
Furnace Size (W×D×H)
400×250×160 mm
Furnace Tank (Vacuum Liner) size (W×D×H)
300×200×120 mm
Power Supply
AC 380 V, 50/60 Hz
Power
10 kW
Shipping Size (W×D×H)
1000×800×1300 mm
G.W.
230 kg
This vacuum atmosphere furnace can be used for heating (sintering) products under the protection of a pre-vacuum atmosphere. It can also be used without pre-vacuuming and directly using a protective gas washing furnace to heat under the protection of an atmosphere. Mainly used for clean heating treatment of products in a protective atmosphere or the user's product has corrosive substances such as acidic and alkaline atmosphere, water, carbon and hydrocarbons, etc. during the heating process.
2. The system is equipped with a vacuum pressure gauge,a 304 stainless steel two-piece ball valve,vacuum hoses, rigid pipes, clamp-type quick-release seals, an exhaust filter, an exhaust oil mist filter, and a vacuum pump.
3. Standard vacuum pump is a ZX-2 two-stage,direct-coupled vacuum pump with an oil-return mechanism. The ultimate vacuum degree is 6×10-2 Pa.
4. The furnace mouth is equipped with a water cooling device,and the cooling water is inlet and outlet from the bottom.
5. The furnace tank and furnace body adopt a detachable structure,which is convenient for maintenance of the electric furnace.
6. Temperature control instrument: PID adjustable, 30-segment programmable, intelligent instrument temperature control.
7. Safety & Environmental Protection: The temperature control system has multiple safety protection measures such as short circuit, overcurrent protection, broken couple, overtemperature alarm and automatic power cut-off protection; the vacuum system has leakage protection, short circuit protection, overcurrent protection, motor overload protection and exhaust port oil mist filtration.
