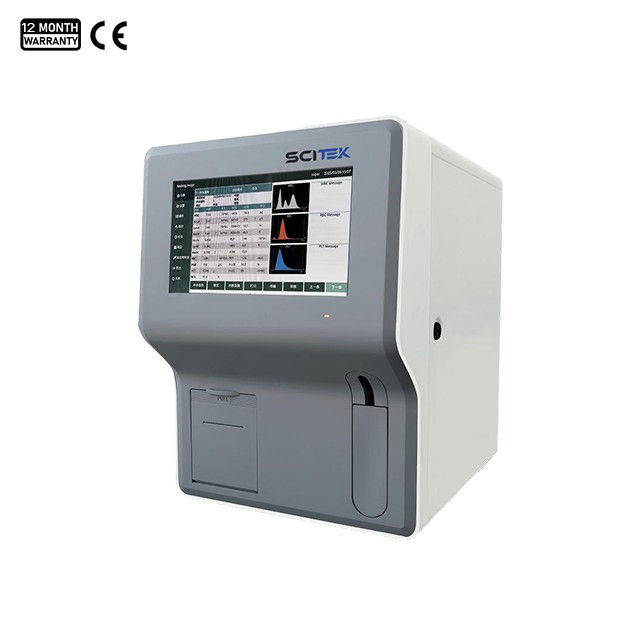

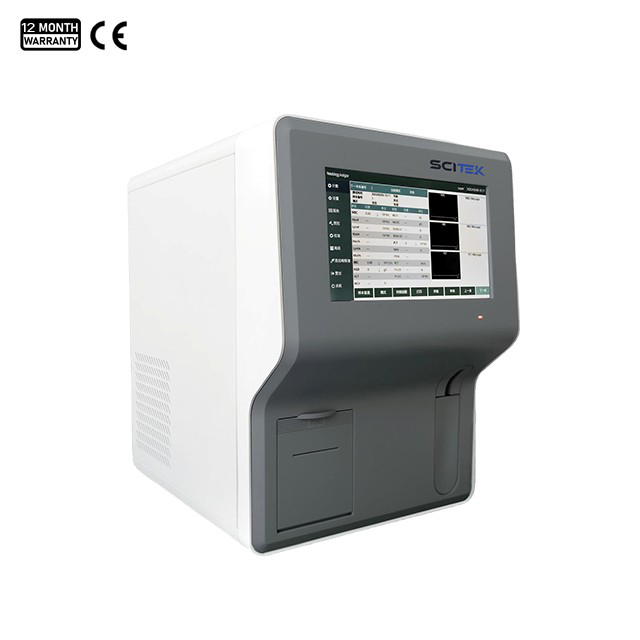

HA-3000 incorporates a dual-reagent system combined with a unique flow path, resulting in lower consumable costs. Featured with intelligent alarms and automatic maintenance, ensuring stable operation and simple maintenance.Addresses routine testing requirements for outpatient care, health check-ups, chronic disease follow-ups, and routine pediatric and obstetric examinations.
Auto Hematology Analyzer Feature:
1.Large 10.1-inch touchscreen and built-in printer, supports simultaneous connection of an external keyboard, mouse, and PC.
2.Highly cost-effective dual-reagent system requiring only one diluent and one lysing agent for daily operation.
3.Unique fluid path design eliminates wasteful residual diluent and lysing agent, saving on consumable costs.
4.6 μL micro-sample of blood, ideal for children, the elderly, and patients with difficult venous access, while significantly reducing the cost per test.
5.Optimized fluid path design and includes scheduled automatic cleaning and maintenance functions.
6.Intelligent anomaly alerts to minimize risk, featuring 21 parameters and 3 histograms.
7.Linear fitting and floating threshold technologies, achieving a lower detection limit of 2 fL for platelets to ensure greater accuracy.
8.Dual-channel measurement enables a processing speed of up to 60 samples per hour, meeting the daily workload demands of primary care facilities and laboratories.
Auto Hematology Analyzer Specification:
Model | HA-3000 |
|---|
21 Parameter | WBC, NEU#, MXD#, LYM#, NEU%, MXD%, LYM% |
RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT |
PLT, MPV, PDW, PCT, P-LCR, P-LCC |
Histogram | Histogram for WBC, RBC, PLT |
Method | Enhanced Coulter Principle |
Cyanide-free Colorimetry |
Throughput | 60 tests/hour |
Display | 10.1 inch color touch screen display |
Sample | Whole blood, pre-diluted blood, capillary whole blood |
Sampler Volume | 6 μL for whole blood |
20 μL for pre-diluted |
Counting Mode | Whole blood mode, pre-diluted mode |
Data Storage | 10,000 sample results, including patient demographics, test info, and histograms. |
Data Search | Query by sample ID, patient info, comprehensive history, or daily results; supports data export and offline review. |
QC | L-J Quality Control, X-B Quality Control, Floating Mean; unlimited QC files across multiple levels |
Calibration | Manual calibration, calibrator calibration, and fresh blood calibration. |
Maintenance | One-click Maintenance |
Data Transmission | LIS connection supported, RS232 serial port, 2×USB ports |
Printout | Supports both built-in and external printer |
Languages | English, Spanish, Russian, French, Chinese |
Optional Accessory | Barcode scanner |
Power Supply | 220±22 V, 50±1 Hz |
Consumption | 60VA |
Extenal Size (W×D×H) | 328×425×446 mm |
Shipping Size (W×D×H) | 585×485×605 mm |
N.W./G.W. | 18/25 kg |
