Economic -25°C Freezer

Model : FZ-25V100; FZ-25V270E; FZ-25V280W; FZ-25V330E; FZ-25V360; FZ-25V530; FZ-25V1000

Capacity : 100L / 268L / 278L / 328L / 358L / 528L / 936L
Internal Size (mm) : 410x410x670 / 508x455x1137 / 480x415x1460 / 508x455x1393 /
466x636x625 / (651x631.5x635)x2 / 1000x700x1335
Shelves / Drawers (Qty) : 3 Shelves & 4 Drawers / 3 Shelves / 7 Drawers / 4 Shelves /
4 Shelves & 12 Drawers / 4 Shelves & 18 Drawers / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : -10~-25, adjustable
Versatile and sized for economical lab ultra cold freezer.
Availability:
Quantity:

-25°C Upright Ultra Low Temperature Freezer Specification:

Model FZ-25V100 FZ-25V270E FZ-25V280W FZ-25V330E FZ-25V360 FZ-25V530 FZ-25V1000
Capacity (L) 100 268 278 328 358 528 936
Size (WxDxH)(mm) Internal 410x410x670 508x455x1137 480x415x1460 508x455x1393 466x636x625 (651x631.5x635)x2 1000x700x1335
External 540x540x880 673x676x1630 659x600x1694 673x676x1886 720x830x1870 900x818x1875 1304x1000x2017
Temperature Range (℃) at RT.10~32℃ -10~-25 -10~-25 -10~-25 -10~-25 -10~-25 -10~-25 -10~-25
Sensor NTC NTC NTC NTC NTC NTC PTC
Controller Microprocessor
Cooling System Refrigerant ( CFC Free) R600a R290 R290 R290 R290 R290 R404A
Defrost Manual Manual Manual Manual Manual Manual Manual
Compressor (Qty) KY55C45G/1 CUBIGELN/1 DONPERN/1 CUBIGELN/1 CUBIGEL/2 MEIZHI/2 SECOP/2
Display Digital display
Audible & Visible Alarm Standard High/Low temperature, sensor error, door ajar
High Ambient Temperature / / / / Standard
Abnormal Voltage / / / / / / Standard
Power Failure Backup System (Alarm) 8h 8h / 8h 8h 8h 72h
Material Internal HIPS Electro-galvanized steel with antimicrobial powder coating Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port / / / / Standard
Casters / Standard
Data Logger Optional
Remote Alarm Port / Standard / Standard
Test Hole (Qty) / Φ (mm) / 1/25 1/25 1/25 2/25 2/25 1/18
Shelves / Drawers (Qty) Shelves/3, Shelves/3 Drawers/7 Shelves/4 Shelves/4, Drawers/12 Shelves/4, Drawers/18 Shelves/3
Drawers/4
Sound Emission (dB) 50 46 46 46 49 55 50
Electricity Voltage / Frequency AC 110/220V & Plusmn; 10%, 50/60Hz
Consumption (W) 150 180 180 180 310 260 1000
N.W./G.W. (kg) 40/43 98.5/115 105/115 113/131 138/178 160/180 378/413
Shipping Size (WxDxH) (mm) 590x590x900 770x770x1804 710x678x1770 770x770x2040 780x920x1990 921x960x1950 1350x1080x2150

Upright Ultra Low Temperature Freezer Features:

  1. Clear LED screen and control panel support easy display and operation.

  2. Lockable universal caster wheels.

  3. Inner doors or drawer design makes separated storage possible.

  4. Eco friendly CFC-free refrigerant also save energy.

  5. Coil evaporator for better performance & easy maintenance.


Reliability

  1. Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, sensor error, door ajar, thermostat failure alarm.

  2. Safety password protected control panel prevents unauthorized system modification.

  3. Door lock for storage safety.


Ergonomic Design

  1. Upright door with limit door hinge prevents collision when door opens.

  2. Controller password protected to avoid unauthorized system modification.

Ultra Low Temperature Freezer Detail:

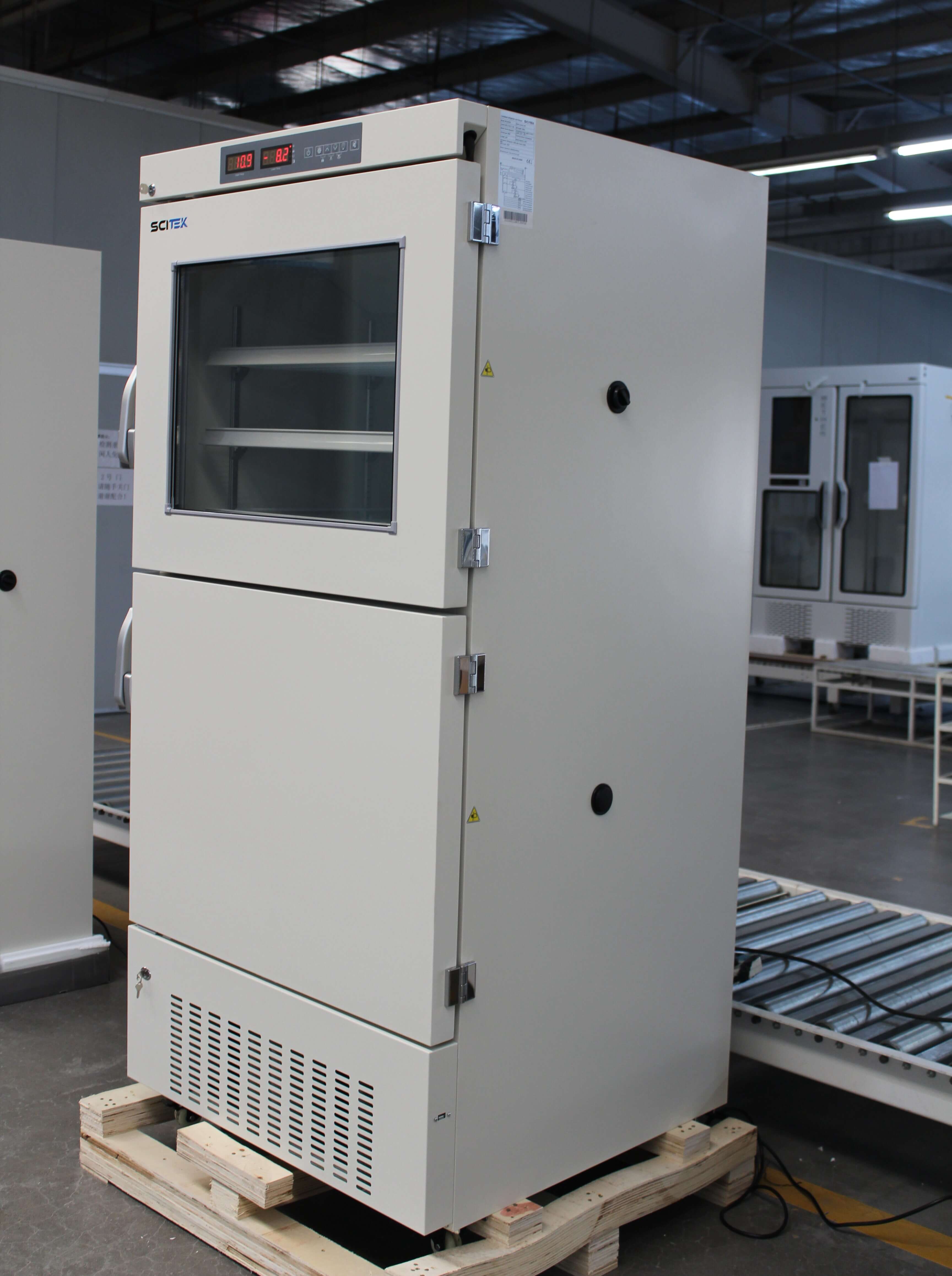

Ultra Low Temperature Freezer


ultra low freezer

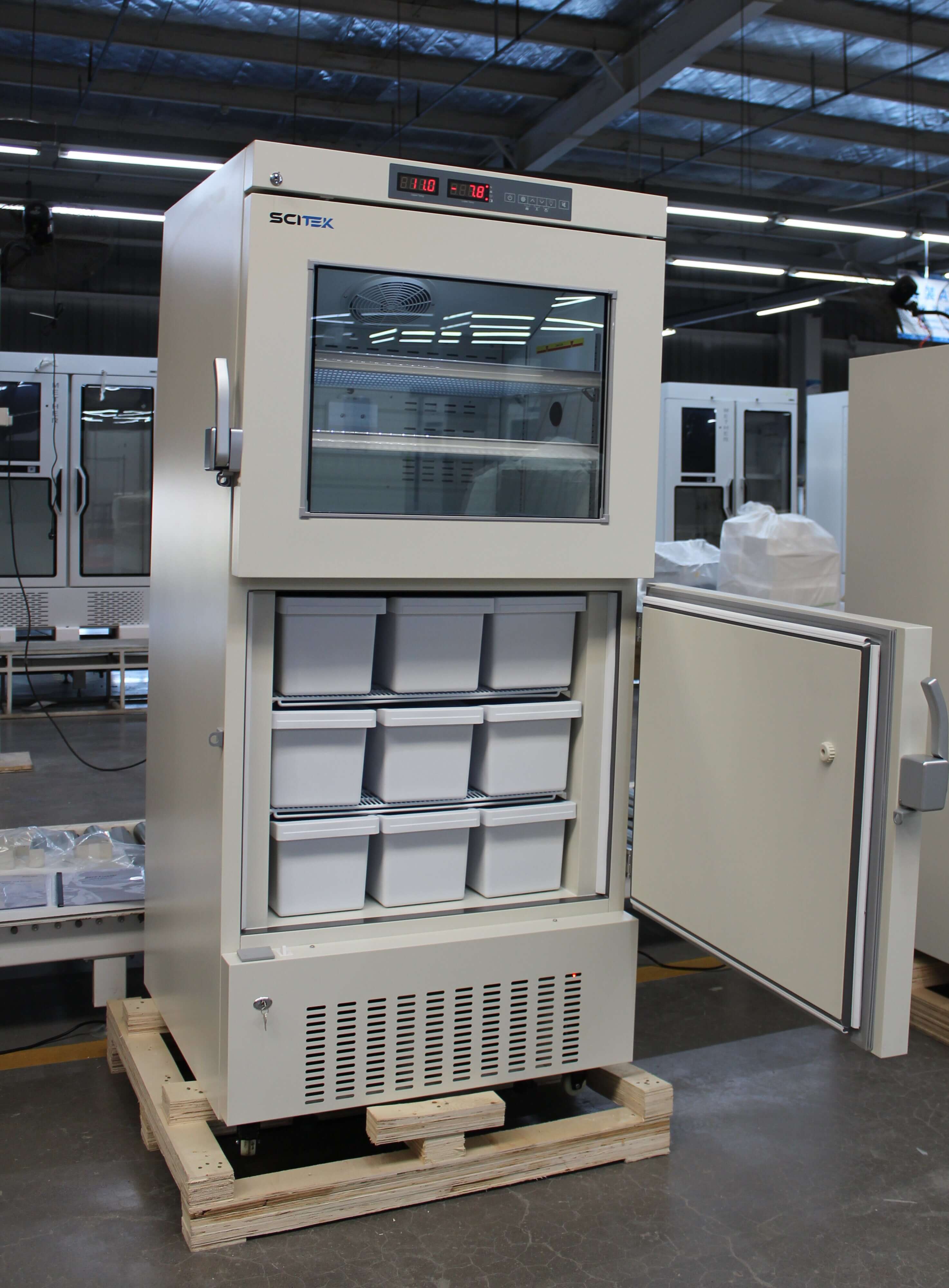

ultra low clod freezer

(Model FZ-25V530)
The interior space is divided into upper and lower levels, making full use of the space, making the storage items more compact and orderly, and effectively improving the space utilisation of the ultra low temperature freezer.


IMG_3455

IMG_3506

Ultra low temperature freezer upper & lower display

WHY SCITEK

  1. 3 years for the whole machine warranty

  2. Offer 24/7 online support.

  3. Certificate support: CE, FDA

  4. Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
