Double Door Laboratory Refrigerator

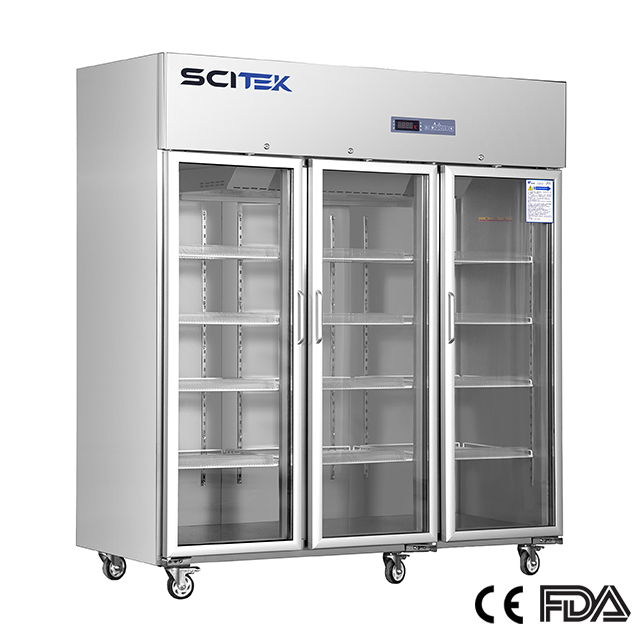

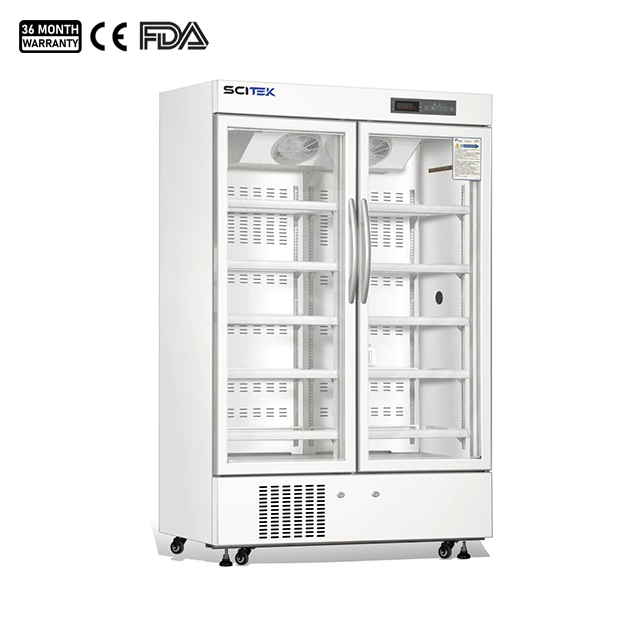

Model : MR-5V660; MR-5V1000; MR-5V1500

Capacity (L) : 656 / 1006 / 1500
Internal Size : 1100×454×1325 / 1100×684×1325 / 1680×595×1312
Shelves / Drawers (Qty) : 10 Shelves / 10 Shelves / 12 Shelves
Temperature Range (℃) at RT.10~32℃ : 2~8（Optional 2~10 ; 2~14）

High performance pharmaceutical/laboratory refrigerators are designed for the most rigorous life science research applications.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Double Door Laboratory Refrigerator Specifications:

Model		MR-5V660	MR-5V1000	MR-5V1500
Capacity (L)		656	1006	1500
Size (WxDxH)(mm)	Internal	1100×454×1325	1100×684×1325	1680×595×1312
Size (WxDxH)(mm)	External	1240×630×1895	1220×860×1885	1800×775×1965
Temperature	Range (℃) at RT.10~32℃	2~8(Optional 2~10; 2~14)	2~8(Optional 2~10; 2~14)	2~8(Optional 2~10; 2~14)
	Sensor	NTC	NTC	NTC
	Controller	Microprocessor	Microprocessor	Microprocessor
Cooling System	Refrigerant	R290 (CFC Free)	R290 (CFC Free)	R134a (CFC Free)
	Defrost	Auto	Auto	Auto
	China Compressor Qty	1	1	1
Display		Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/low temperature, power failure, thermostat failure, door ajar
Audible & Visible Alarm	Power Failure Backup System (Alarm)	8h	8h	8h
Material	Internal	Color sprayed steel		304 stainless steel
Material	External	Color sprayed steel		304 stainless steel
Accessories	USB Port	Optional	Optional	Optional
	Casters	Standard	Standard	Standard
	Chart Recorder	Optional	Optional	Optional
	Data Logger	Optional	Optional	Optional
	Remote Alarm Port	Optional	Optional	Optional
	Test Hole (Qty) / Φ (mm)	1/25mm	1/25mm	Optional
Shelves / Drawers (Qty)		10 Shelves	10 Shelves	12 Shelves
Sound Emission (dB)		52	53	55
Electricity	Voltage / Frequency	220/50Hz/60Hz, 110/60Hz
Electricity	Consumption	403W/2.39	400W/2.15	1040W/5.4
N.W./G.W. (Kg)		166/184	189/250	245/280
Shipping Size (WxDxH) (mm)		1280x670x1950	1330x970x1250	1940×880×2035

Double Door Laboratory Refrigerator Features:

Forced-air cooling system with electrical heat compensation controlled by microprocessor.
Auto-defrost system ensure no moisture on cooling surface.
Hollow Insulation designed double-layer toughened glass door.
Clear LED screen and control panel support easy display and operation.
Leveling feet for easy fixation.

Reliability

Lockable doors and password protected microprocessor parameter setting.
Build-in backup battery up to 8 hours to display temperature and operate audible and visual alarm systems.
Inner doors monitor to turn on/off cooling fan to prevent cold air from leaking out.
Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Separated inner acrylic doors ensure less affection on each space when the other door opened.

Ergonomic Design

Safety lock prevents unauthorized access.
Detachable and separated basket for maximum safety storage and use.
Automatic ON/OFF light also controlled from control panel.
Standard 25mm test hole for connecting temperature monitoring systems.
Lockable universal castor wheels.
5 adjustable steel wire shelves for easy storing.

Details of Double Door Laboratory Refrigerator:

Double Door Laboratory Refrigerator

Model	MR-5V660	MR-5V1000	MR-5V1500
Capacity (L)	656	1006	1500
Size (WxDxH)(mm)	Internal	1100×454×1325	1100×684×1325	1680×595×1312
External	1240×630×1895	1220×860×1885	1800×775×1965
Temperature	Range (℃) at RT.10~32℃	2~8(Optional 2~10; 2~14)	2~8(Optional 2~10; 2~14)	2~8(Optional 2~10; 2~14)
Sensor	NTC	NTC	NTC
Controller	Microprocessor	Microprocessor	Microprocessor
Cooling System	Refrigerant	R290 (CFC Free)	R290 (CFC Free)	R134a (CFC Free)
Defrost	Auto	Auto	Auto
China Compressor Qty	1	1	1
Display	Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/low temperature, power failure, thermostat failure, door ajar
Power Failure Backup System (Alarm)	8h	8h	8h
Material	Internal	Color sprayed steel	304 stainless steel
External	Color sprayed steel	304 stainless steel
Accessories	USB Port	Optional	Optional	Optional
Casters	Standard	Standard	Standard
Chart Recorder	Optional	Optional	Optional
Data Logger	Optional	Optional	Optional
Remote Alarm Port	Optional	Optional	Optional
Test Hole (Qty) / Φ (mm)	1/25mm	1/25mm	Optional
Shelves / Drawers (Qty)	10 Shelves	10 Shelves	12 Shelves
Sound Emission (dB)	52	53	55
Electricity	Voltage / Frequency	220/50Hz/60Hz, 110/60Hz
Consumption	403W/2.39	400W/2.15	1040W/5.4
N.W./G.W. (Kg)	166/184	189/250	245/280
Shipping Size (WxDxH) (mm)	1280x670x1950	1330x970x1250	1940×880×2035
