Model | ELMR-110 |
---|---|
Lamp | DC12V 22W tungsten halogen lamp |
Optical Path | 8 channel vertical light path system |
Wavelength Range | 400-900nm |
Filter | Default configuration 405, 450, 492, 630nm, can be installed up to 10 filters. |
Reading Range | 0-4.000Abs |
Resolution | 0.001Abs |
Accuracy | ≤±0.01Abs |
Stability | ≤±0.003Abs |
Repeatability | ≤0.3% |
Vibration Plate | Three kinds of linear vibration plate function, adjustable 0-255 seconds |
Display | 7 inch color LCD screen, display the entire board information, touch screen operation |
Software | Professional software, can store 500 groups program, 100000 sample results, more than 10 kinds of curve fitting equation |
Power Supply | Use the power adapter design AC100-240V 50-60Hz |
Sizes(W×D×H)(mm) | 400x260x200 |
Shipping Size (W×D×H)(mm) | 570x440x480 |
N.W./G.W. (kg) | 8/15 |

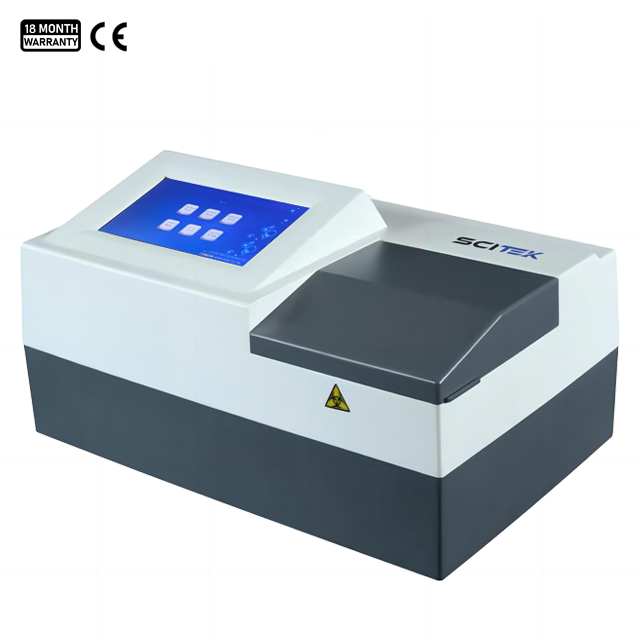

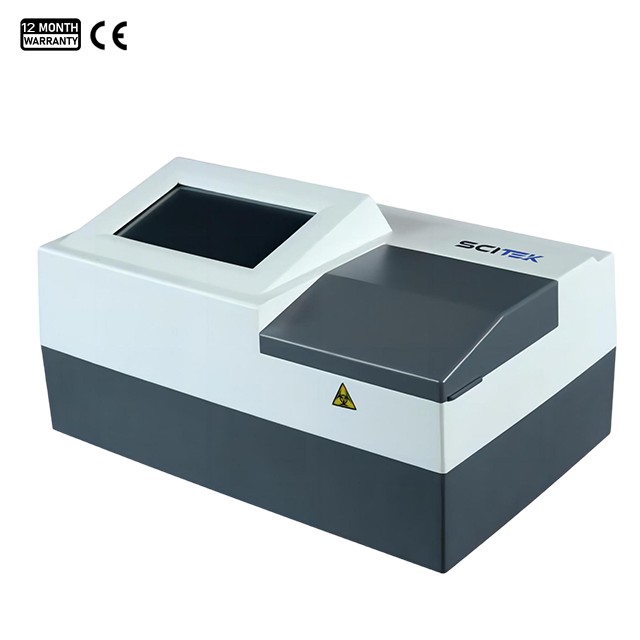

The ELMR-110 is a popular elisa plate reader capable of sensitively measuring absorbance signals on microtiter plates, accurately detecting and analyzing the concentration and activity of biomolecules.
7-inch high-resolution touch screen, simple operation and easy to view the results.
Endpoint method, kinetic method, inhibition rate, and single/dual wavelength measurement to achieve fast readout and accurate detection.
Wide voltage design, global network power supply applicable
The elisa plate reader's wavelength range of 400-900 nm can meet a variety of applications;
Compact design, simple operation, easy to carry
Light source energy-saving design maximizes the extension of the service life of the light source.
The software includes program generation and storage, as well as a test data storage function with a large storage capacity.
Powerful curve fitting, kinetic analysis and reporting functions;
Model | ELMR-110 |
---|---|
Lamp | DC12V 22W tungsten halogen lamp |
Optical Path | 8 channel vertical light path system |
Wavelength Range | 400-900nm |
Filter | Default configuration 405, 450, 492, 630nm, can be installed up to 10 filters. |
Reading Range | 0-4.000Abs |
Resolution | 0.001Abs |
Accuracy | ≤±0.01Abs |
Stability | ≤±0.003Abs |
Repeatability | ≤0.3% |
Vibration Plate | Three kinds of linear vibration plate function, adjustable 0-255 seconds |
Display | 7 inch color LCD screen, display the entire board information, touch screen operation |
Software | Professional software, can store 500 groups program, 100000 sample results, more than 10 kinds of curve fitting equation |
Power Supply | Use the power adapter design AC100-240V 50-60Hz |
Sizes(W×D×H)(mm) | 400x260x200 |
Shipping Size (W×D×H)(mm) | 570x440x480 |
N.W./G.W. (kg) | 8/15 |
The ELMR-110 is a popular elisa plate reader capable of sensitively measuring absorbance signals on microtiter plates, accurately detecting and analyzing the concentration and activity of biomolecules.
7-inch high-resolution touch screen, simple operation and easy to view the results.
Endpoint method, kinetic method, inhibition rate, and single/dual wavelength measurement to achieve fast readout and accurate detection.
Wide voltage design, global network power supply applicable
The elisa plate reader's wavelength range of 400-900 nm can meet a variety of applications;
Compact design, simple operation, easy to carry
Light source energy-saving design maximizes the extension of the service life of the light source.
The software includes program generation and storage, as well as a test data storage function with a large storage capacity.
Powerful curve fitting, kinetic analysis and reporting functions;
