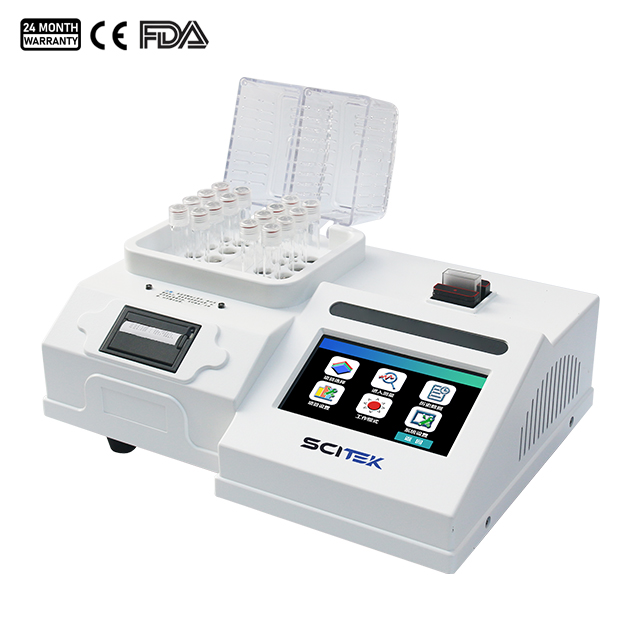

Touch Screen Multiparameter Water Quality Meter

Model : MWQ-T700

Wavelength range : 400-750nm
Batch processing sample : 8x2 pieces/batch
Size(WxDxH)(mm) : 400x280x180
Availability:
Quantity:

Test tube rack, cooling rack, prefabricated reagent, solid reagent, reaction tube, colorimetric dish rack, semi-automatic liquid dispenser, etc

Touch Screen Multiparameter Water Quality Meter Specifications:

ModelMWQ-T700
Wavelength range400-750nm
Error range≤ ±5%
Number of curves100
Batch processing sample8x2 pieces/batch
Anti chlorine interference{cl-}<1200mg/l; {cl-}<4000mg/l
Temperature control rangeRT -200 ℃
Dissolving temperature165/123 ± 0.5 ℃
Dissolving time10/30 minutes
Size(WxDxH)(mm)400x280x180
Working power supplyAC/220V ± 10%/50Hz
Whole machine weight5KG


Technical Index:

Users can choose 7 measurement items based on the following criteria

Test itemMeasuring range
CODColorimetric dish color comparison: 5-50mg/L; 50-6000mg/L (Segmented)
Test tube color comparison: 5-200mg/L; 200-6000mL (Segmented)
Ammonia nitrogen0.01-200mg/L (Segmented)
Total phosphorus0.01-16mg/L (Segmented)
Total nitrogen0.01-10mg/L (Segmented)
Turbidity5-200NTU
Chroma0-400 degrees
Copper0-2.5mg/L
Nickel0-5mg/L
Hexavalent chromium0-2mg/L
Iron0-5mg/L
SS0-200mg/L
Cyanide0-1.5mg/L
Zinc0-1mg/L
Total chromium0-2mg/L
Permanganate index0-10mg/L
Formaldehyde0-4mg/L
Sulfide0-1mg/L
Sulfate8-150mg/L
Nitrite nitrogen0-0.2mg/L
Residual chlorine0-3mg/L
Total chlorine0-3mg/L
Aniline0-2mg/L
Fluoride0-1.5mg/L

Touch Screen Multiparameter Water Quality Meter Features:

  1. Adopting a 7-inch full touch color screen, integrating digestion and measurement methods

  2. Supports both colorimetric dishes and tubes (optional)

  3. Easy to operate, measurement items can be freely switched, and users can customize 7 indicators according to their needs

  4. The memory has 100 curves, 15 standard curves, and 85 extended curves that can be freely applied in different environments, wastewater, and other conditions

  5. The temperature is set between room temperature and 200 ℃, and users can adjust it according to their needs, making it more compatible

  6. The instrument can calculate the storage curve based on standard samples

  7. Built in printer, capable of printing current data and querying historical data

  8. Cold light source, narrowband interference, light source lifespan up to 100000 hours

  9. Dual temperature zone digestion, power automatically adjusts with the number of loads, intelligent constant temperature control, delay protection

  10. Temperature and time can be adjusted and saved freely

  11. Adopting rear mounted spectroscopic technology to avoid external light interference, the test data is more stable and reliable
