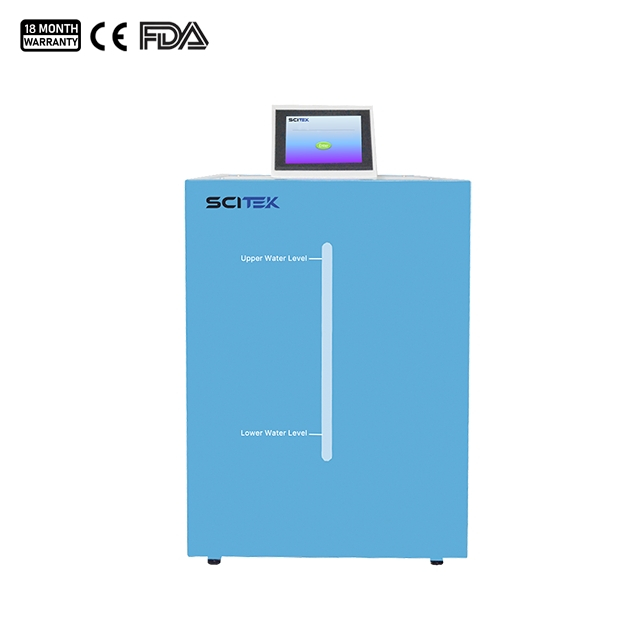

Vacuum degasser, VD-35

Model: VD-35

Capacity: 35 L
Temperature Range: RT-50.0 ℃
Temperature Rccuracy: ±0.2 ℃
Vacuum Range: 0.01-0.085 Mpa
Vacuum Resolution: 0.01 Mpa
Sizes (W×D×H) : 550×580×850 mm
The vacuum degasser has vacuum, temperature and flow calibration function, and operates in two modes: manual degassing and automatic degassing. It can be applied in various fields such as materials science, pharmaceuticals and healthcare.
Availability:
Quantity:

Application:

The vacuum degasser integrates the three methods of heating, circulation and degassing, thereby achieving efficient degassing of the solution. It can be applied in various fields such as materials science, pharmaceuticals and healthcare.


Advantage:

1. It has two working modes: manual degassing and automatic degassing, which can realize the functions of liquid filling, heating, stirring and degassing with one button.

2. The vacuum degasser adopts a 7-inch operating system, which integrates the three-in-one degassing method of heating, circulation and degassing.

3. It has fault self-diagnosis function, and automatically prompts abnormal phenomena during operation.

4. It has memory storage function, which can save user setting results.

5. It has pre-heating function, which can quantitatively inlet and outlet liquid.

6. It has vacuum, temperature and flow calibration function.

7. With one-button cleaning function for pipelines, the chamber can be easily disassembled and cleaned, eliminating the risk of bacteria proliferation during long-term storage.

8. Single-chip microcomputer control, high degree of automation.

9. Added ultraviolet sterilization device, with sterilization function.



Specification:

Model

VD-35

Processing Solution Volume

35 L

Temperature Range

RT-50.0 ℃

Temperature Resolution

0.1 ℃

Temperature Rccuracy

±0.2 ℃

Vacuum Range

0.01-0.085 Mpa

Vacuum Resolution

0.01 Mpa

Quantitative Inlet and Outlet Liquid Accuracy

±10%

Power Supply

AC 220 V ±10%; 50 Hz; 1500 W

Dimensions (WxDxH)

550×580×850 mm

Shipping Size(WxDxH)

760×740×930 mm

N.W. (kg)

45
