Diaphragm Vacuum Pump, DA Series

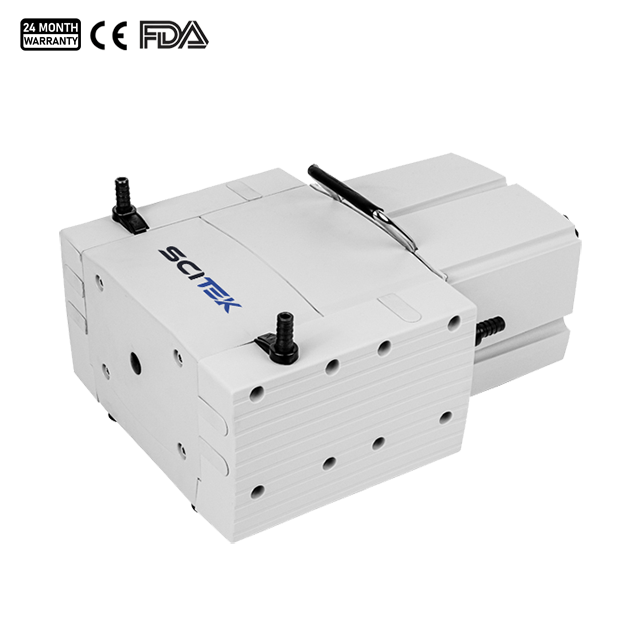

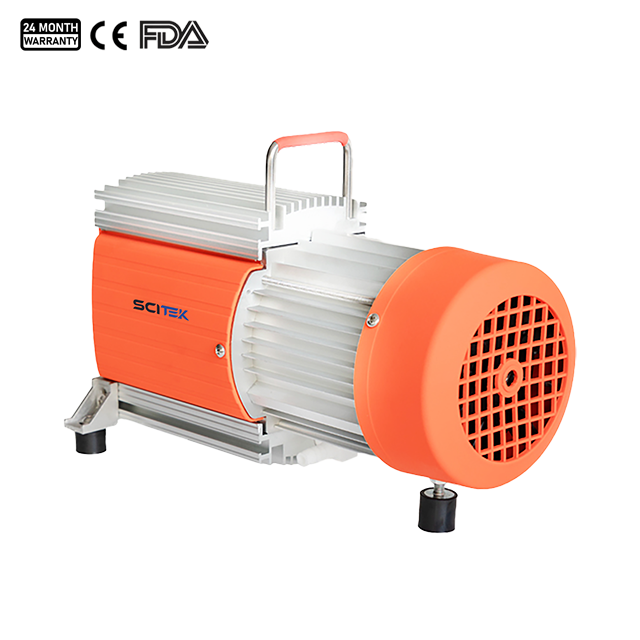

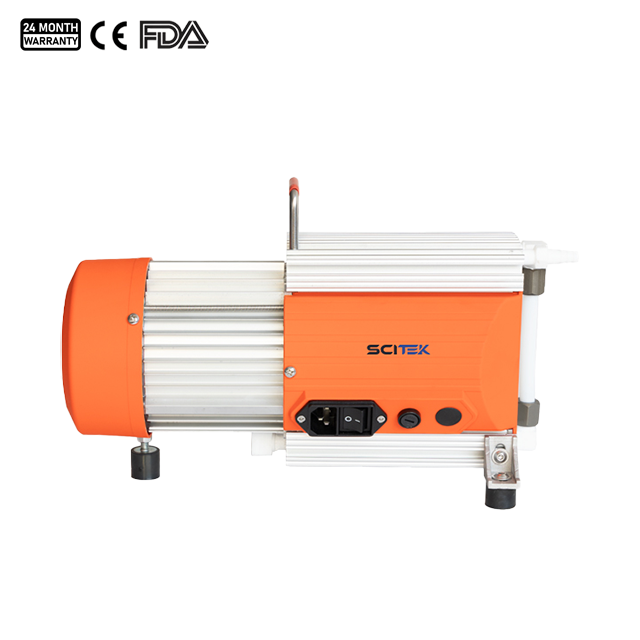

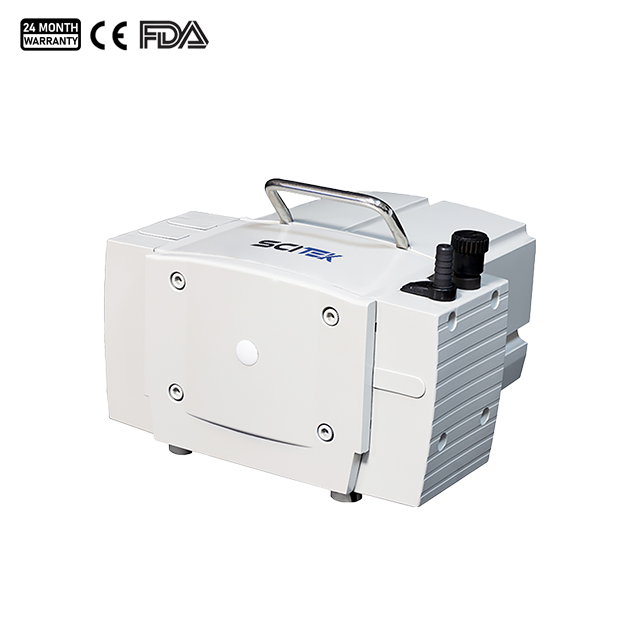

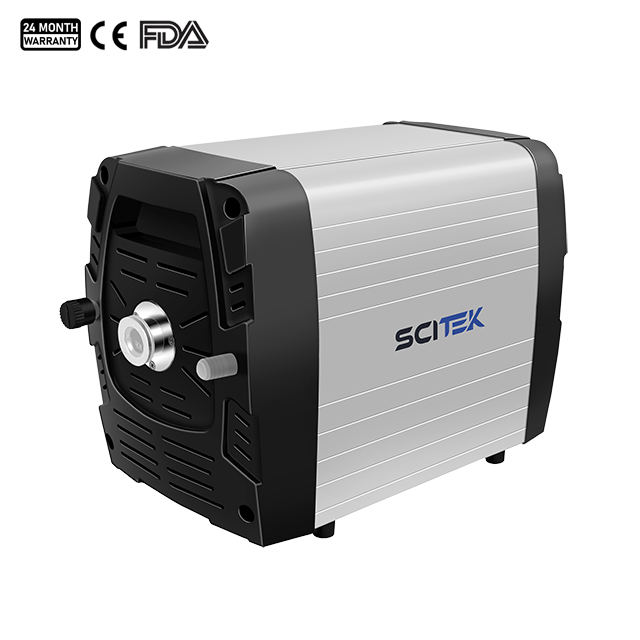

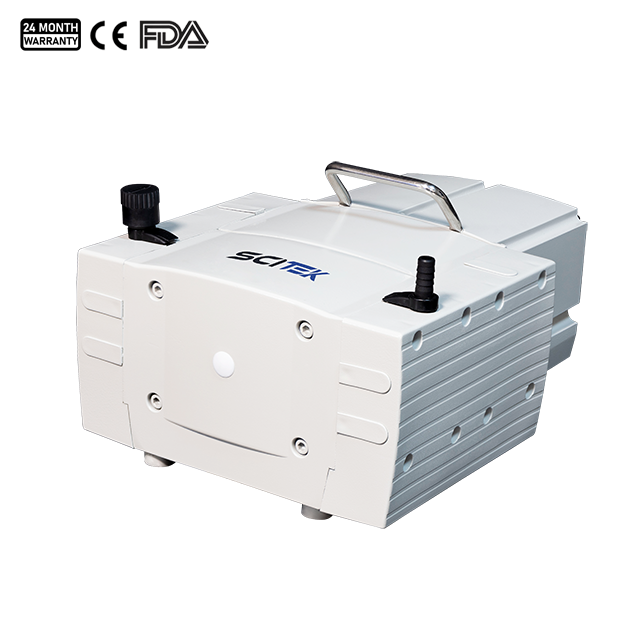

Model : VP-D1A/VP-DH1A; VP-D2A; VP-D5A; VP-DP2A; VP-D12A; VP-DH2A; VP-D10A; VP-D8A; VP-D16A

Frequency conversion : Rated at 1400
Components : Wetted parts
Displacing valve : FFKM
Diaphragm : "Sandwich Configuraticn" PTFE
Availability:
Quantity:
Inquiry Add to Inquiry List

Diaphragm Vacuum Pump Features:

  1. Original imported accessories, stable and reliable

  2. Small size and light weight

  3. Easy maintenance and repair

  4. Complete resistance to chemical corrosion

  5. Vacuum stability, easy to control pumping speed

  6. Can work continuously for a long time

Scope of application:

  1. Vacuum drying

  2. Vacuum distillation

  3. Vacuum concentration

  4. Centrifugal acceleration

  5. Rotary evaporation

  6. Solid phase extraction

Diaphragm Vacuum Pump Specifications:

ModelVP-D1A/VP-DH1AVP-D2AVP-D5AVP-DP2AVP-D12AVP-DH2AVP-D10AVP-D8AVP-D16A
Pumping Speed (m³/h)1.224212210816
UItimate pressure (mbar)≤2≤3≤8≤2≤8≤2≤1≤0.5≤30≤150
Frequency conversionRated at 1400
Safety functionDual-walue capacitcr moterVariable trequencypermanentmagnetmotor motor automatie protection
Pumping head111211111
Power supply(w)80180360360600360600400400
Size(WxDxH)(mm)330x143x202330x143x212245x252x185335x252x185335x252x185467x234x319335x252x185467x234x319375x200x310375x200x310
Weight(kg)7810102310232020
ComponentsWetted parts
Displacing valveFFKM
Diaphragm"Sandwich Configuraticn"PTFE
Inlet/OutletPTFE
FittingPTFE, PDVF
Inlet plateCarbon fber reinforced ECTFE
Cavity/Diaphragm clamping discHaii and teflon
