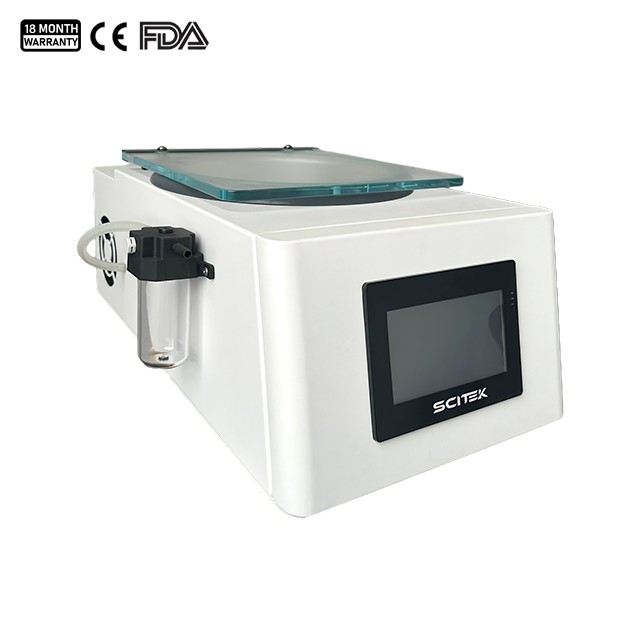

Vacuum Centrifugal Concentrator

Model : VCC-A

Maximum Centrifugal Force : 590×g
Ultimate Vacuum : ≤7pa
Noise : ≤60dB(A)
Diaphragm Pump : Built-in

Availability:
Quantity:
Inquiry Add to Inquiry List

Vacuum Centrifugal Concentrator Specifications:

ModelVCC-A
Speed Range0 rpm~2000 rpm
Maximum Centrifugal Force590×g
Ultimate Vacuum≤7pa
Noise≤60dB(A)
Temperature Control RangeRT.~100℃
Temperature Control Accuracy±1℃
Diaphragm PumpBuilt-in
Timing Range0~99h59min
Sample Chamber Pre-Cooling FunctionYes
Centrifugation Imaging FunctionOptional
Power SupplyAC220V, 50/60Hz
Consumption800W
Shipping Size(W×D×H)(mm)750x450x380
G.W. (kg)58

VCC-A integrated vacuum centrifugal concentrator adopts an integrated design, which is three-dimensional and saves space. It is suitable for evaporating solvent samples with a small size and medium boiling point. The vacuum centrifugal concentrator has the function of quickly and safely evaporating water and organic solvents in the sample. EP tubes, glass test tubes, various centrifuge tubes, chromatographic bottles, centrifuge bottles or 96-well plates are suitable use in it.

Vacuum Centrifugal Concentrator Features:

  1. VCC-A adopts an integrated design.

  2. Equipped with internationally renowned diaphragm pump, high pumping speed.

  3. Quick-insert rotor, integrally molded.

  4. Resistant to chemical corrosion centrifugal chamber, resistant to acids and alkalis.

  5. Maintenance-free induction motor with AC variable frequency drive, electromagnetic drive centrifuge system

  6. One-button start function

  7. Equipped with 32 different programs internally.

  8. Five-level temperature control design for sample chamber, effectively ensuring sample safety


Previous:
Next:
Get Quotation/Become Distributor

Related Products

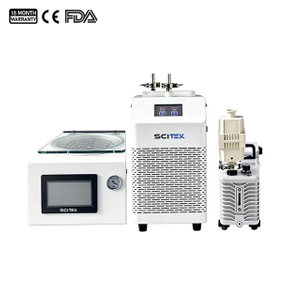

Vacuum Freezing Centrifugal Concentrator, 96-well Plates
