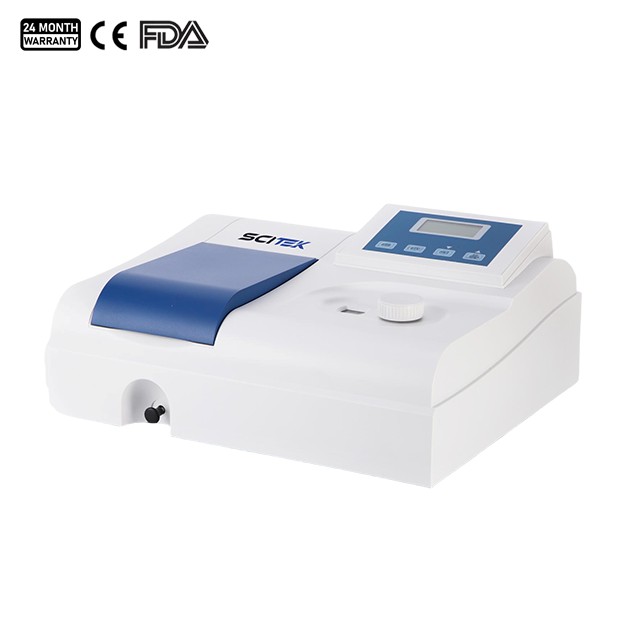

UV-Vis Spectrophotometer, SP-UVN752N

Model : SP-UVN752N

Photometry : Single Beam
Focal Length : 160 mm
Grating : 1200 lines/mm
Spectrum Bandwidth : 2 nm
Wavelength Range : 200-1000 nm
Wavelength Setting : Manual Turn Knob
It provides the essential tools for qualitative and quantitative analyses in chemistry, biochemistry, the pharmaceutical industry and environmental science.
Availability:
Quantity:
Inquiry Add to Inquiry List

Application:


This UV-Vis spectrophotometer delivers exceptional performance across a wide range of applications, combining comprehensive functionality with reliable operation. Designed for versatility, it has a broad wavelength range of 200–1000 nm and supports full-spectrum scanning for detailed characterization of sample properties. It provides the essential tools for qualitative and quantitative analyses in chemistry, biochemistry, the pharmaceutical industry and environmental science.


Advantage:


1. Full-spectrum scanning

2. Linear regression

3. Detailed spectrum scanning

4. Concentration direct reading

5. Time-based kinetics determination

6. Peak / Valley detecting

7. GOTOλ

8. Multi-wavelength measurement


Specification:


ModelSP-UVN752N
Photometry Single Beam
Monochromator TypeCzerny-Turner
Focal Length160 mm
Grating1200 lines/mm
DetectorSilicon Photocell
Spectrum Bandwidth2 nm
Wavelength SettingManual Turn Knob
Wavelength Range200-1000 nm
Wavelength Accuracy±2 nm
Wavelength Repeatability≤1 nm
Stray Light≤0.1%T (at 220 nm NaI, 360 nm NaNo2)
Photometric Range0.0-200.0% T
-0.097-4.000 A
0.000-9999 C
Photometric Accuracy±0.5% T;
±0.004 Abs (0-0.5 A);
±0.008 Abs (0.5-1 A);
Photometric Repeatability≤0.2% T;
0.002 Abs (0-0.5 A);
0.004 Abs (0.5-1 A);
Noise100%(T) noise≤0.3%(T);
0%(T) noise≤0.2%(T);
PowerAC 220±22 V, 50±1 Hz, 120 W
Standrad AccessoriesOperation manual 1pc;
Glass cuvette 10mm 4pcs;
Fuse 2pcs;
Cuvette holder 10mm 1pc;
Power cable 1pc;
UV WIN8 Spectrum data processing software 1pc;
Optional AccessoriesCuvette holder 50; 100 mm;
Cuvette 20; 30; 50; 100 mm;
External Size (W×D×H)455×390×220
Shipping Size (W×D×H)555×485×285
N.W/G.W. 10.5 / 12.5 kg


Previous:
Next:
Get Quotation/Become Distributor

Related Products

UV Visible Spectrophotometer DUV8000 Series
UV Visible Spectrophotometer DUV8000 Series
Economic UV VIS Spectrophotometer
Economic UV VIS Spectrophotometer

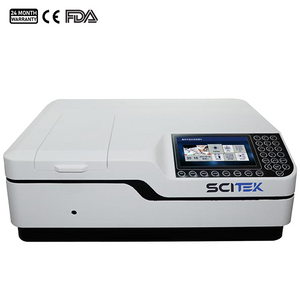

UV VIS Spectrophotometer with Built-in Reference Monitor
UV VIS Spectrophotometer with Built-in Reference Monitor

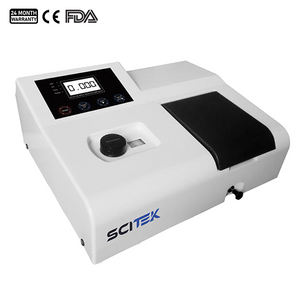

Economic UV-VIS Spectrophotometer
Economic UV-VIS Spectrophotometer

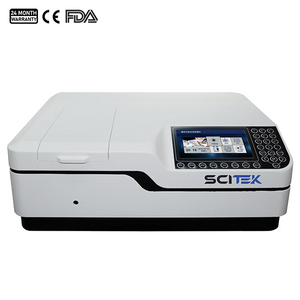

Double Beam UV VIS Spectrophotometer with Holographic Grating
