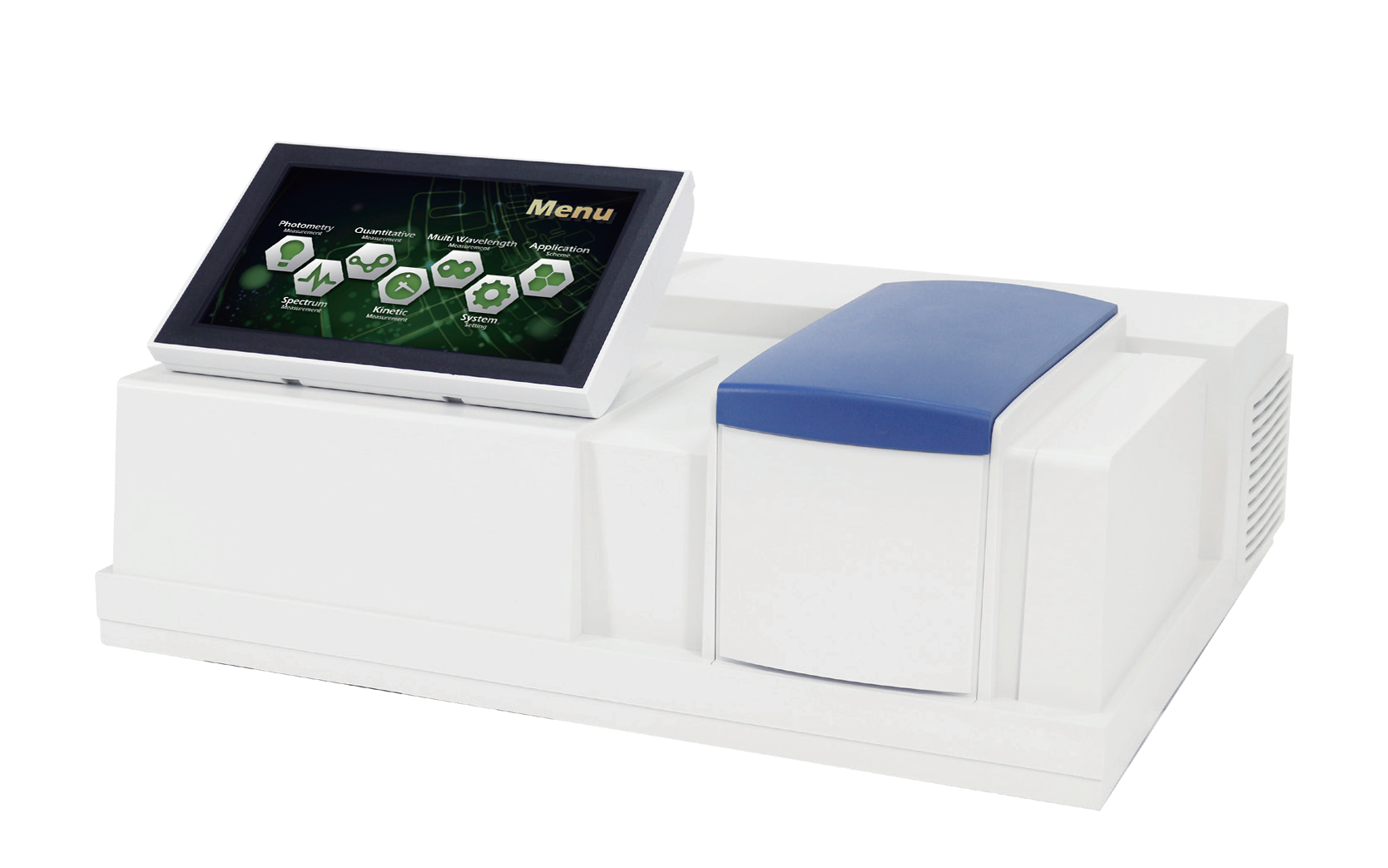

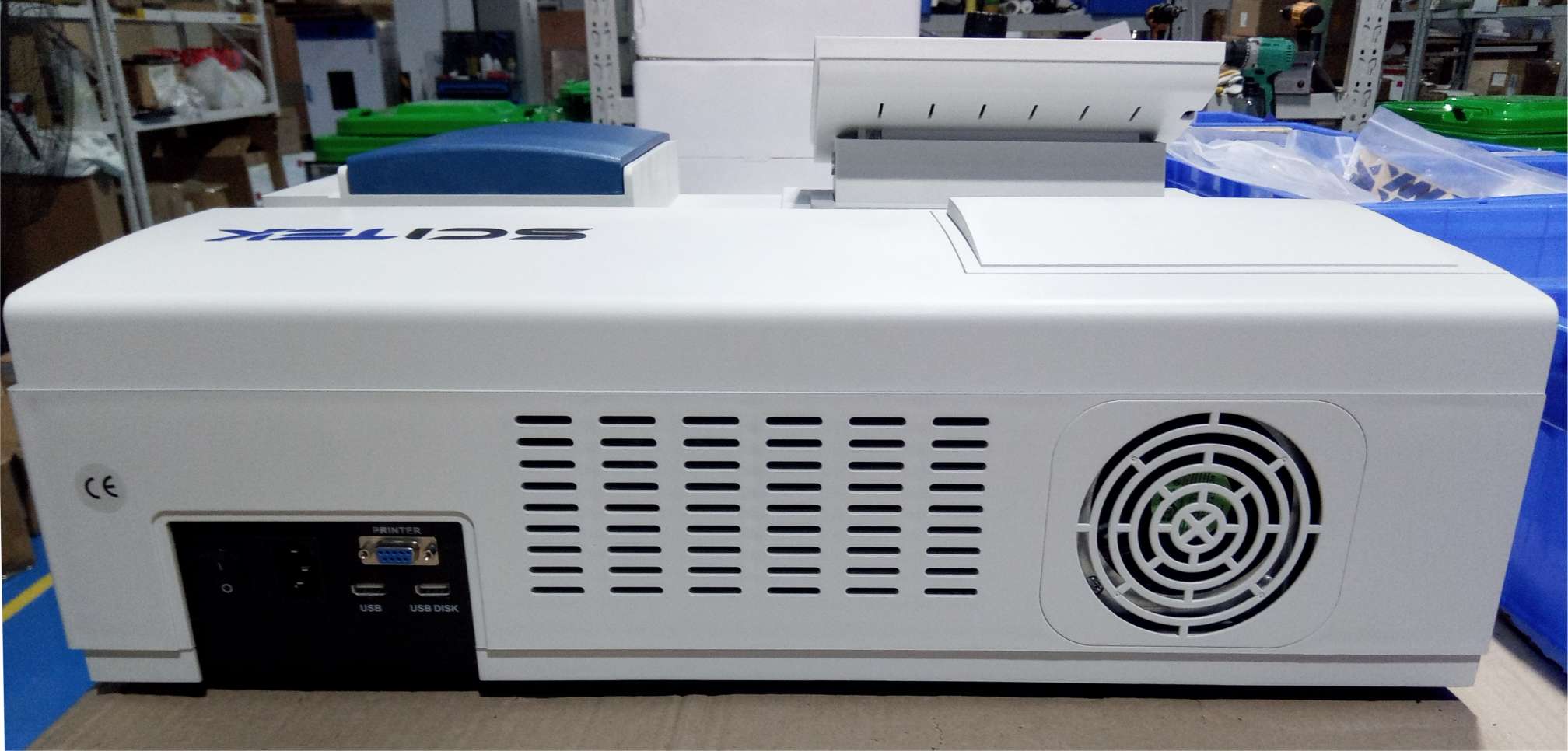

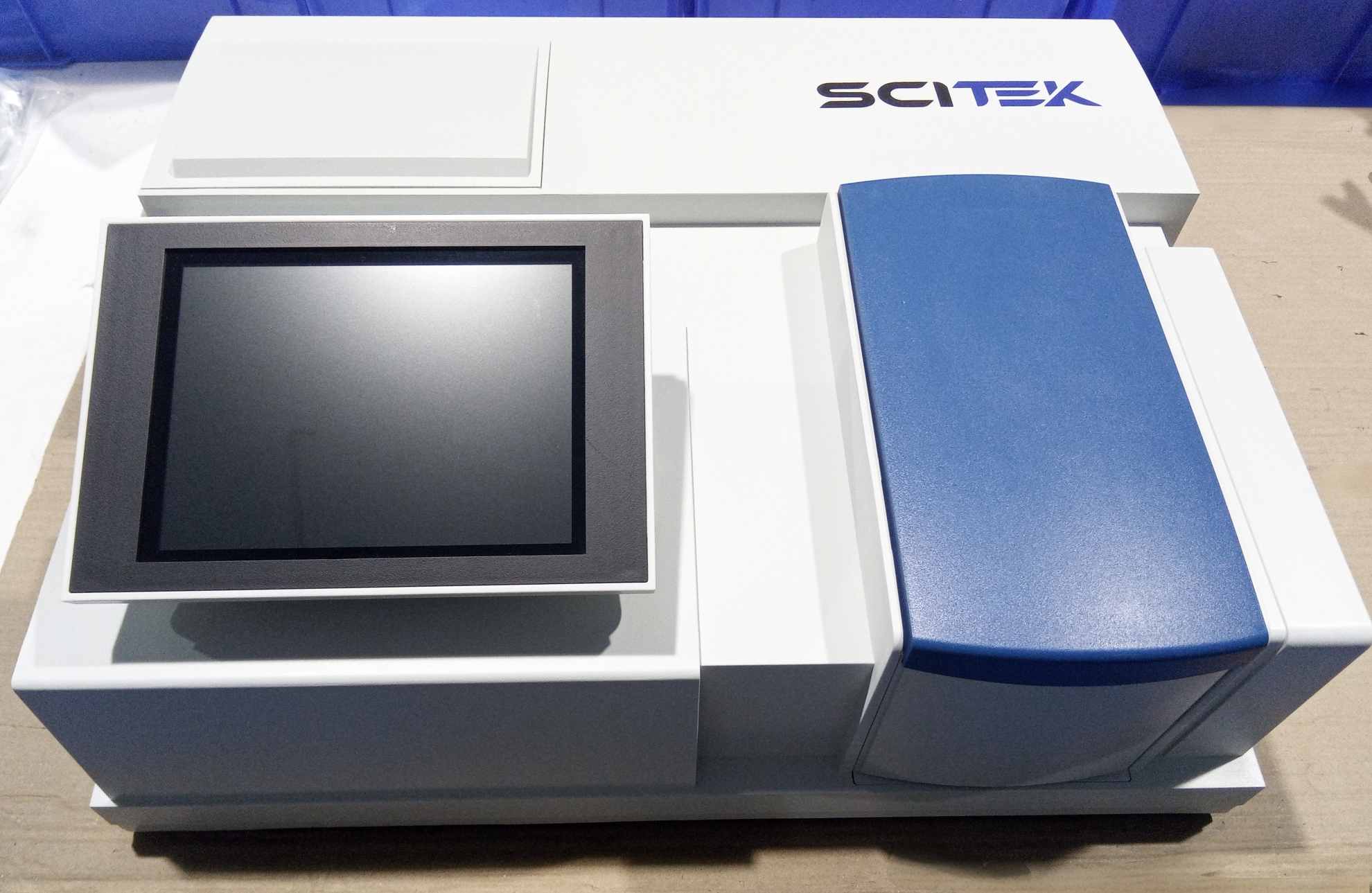

Double Beam UV-VIS Spectrophotometer

Model : SP-DUVL8; SP-DUVL9

Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.3nm
Wavelength Repeatability : ≤0.1nm
Size(W×D×H)(mm) : 584x504x360
High analytical precision, UV visible spectrophotometer is suitable for chemical analysis, biomedical research and drug development.

UV VIS Spectrophotometer Specifications:

PhotometryDouble beam
Monochromator TypeCzerny-Turner
Focal Length200mm
Grating1600 lines/mm
DetectorSilicon photocell
Spectrum Bandwidth2nm or 1nm0.5nm, 1nm, 2nm, 4nm, 5nm
Wavelength Setting8-inch color touch-screen
Wavelength Range190-1100nm
Wavelength Accuracy±0.3nm
Wavelength Repeatability≤0.1nm
Scanning SpeedFast-Medium-Slow
Stray Light≤0.02%T (at 220nm NaI, 360nm NaNo2)
Photometric Range0.0-200.0%T
Photometric Accuracy±0.002Abs (0-0.5A)
±0.004 Abs (0.5-1A)
Photometric Repeatability≤0.15%T
0.001 Abs (0-0.5A)
0.002 Abs (0.5-1A)
Baseline≤±0.0008 A(200-1090nm)
Sound Emission100%(T) Sound emission≤0.1%(T)
0%(T) Sound emission≤0.02%(T)
Drifting≤0.004 Abs/h (250nm and 500nm after 2h warm up)
Light SourceHamamatsu D2 lamp, osram halogen tungsten lamp
ElectricityAC220V±22V, 50Hz±1Hz, 200W
Shipping Size(W×D×H)(mm)730x630x450
N.W./G.W. (kg)34/45

UV VIS Spectrophotometer Features:

SP-DUVL8, SP-DUVL9 Dual Beam UV-Vis Spectrophotometer is a basic instrument for quality control and scientific research, which can be widely used in the fields of medicine and health, drug sensitivity test, environmental monitoring, biochemistry, and so on.

  1. The uv vis spectrophotometer has excellent optical performance with very low noise and stray light.

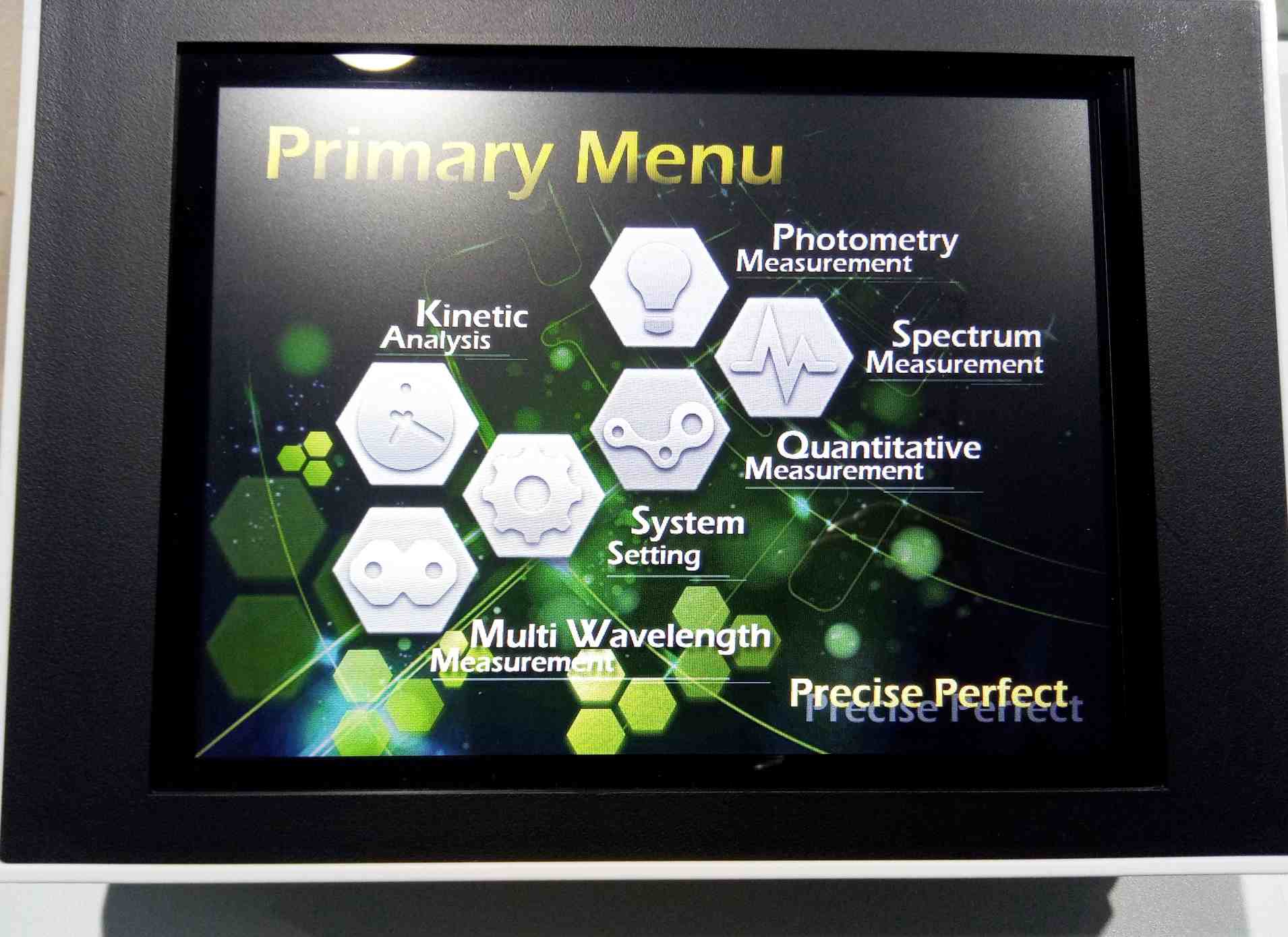

  2. 8-inch color touch screen, easy to operate

  3. Unique deuterium and tungsten lamp (OSRAM) mounting system

  4. Strong data processing and storage capacity
