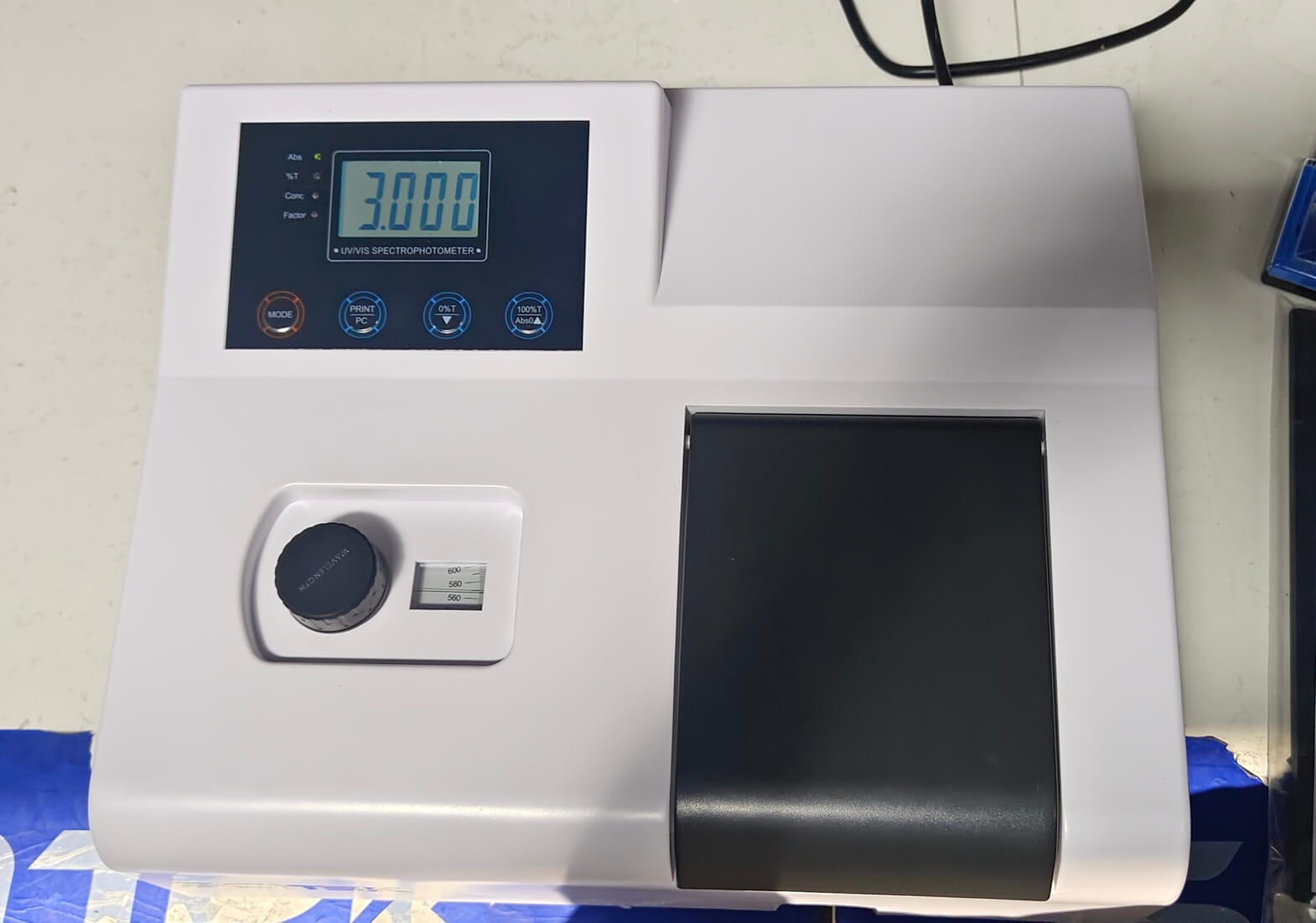

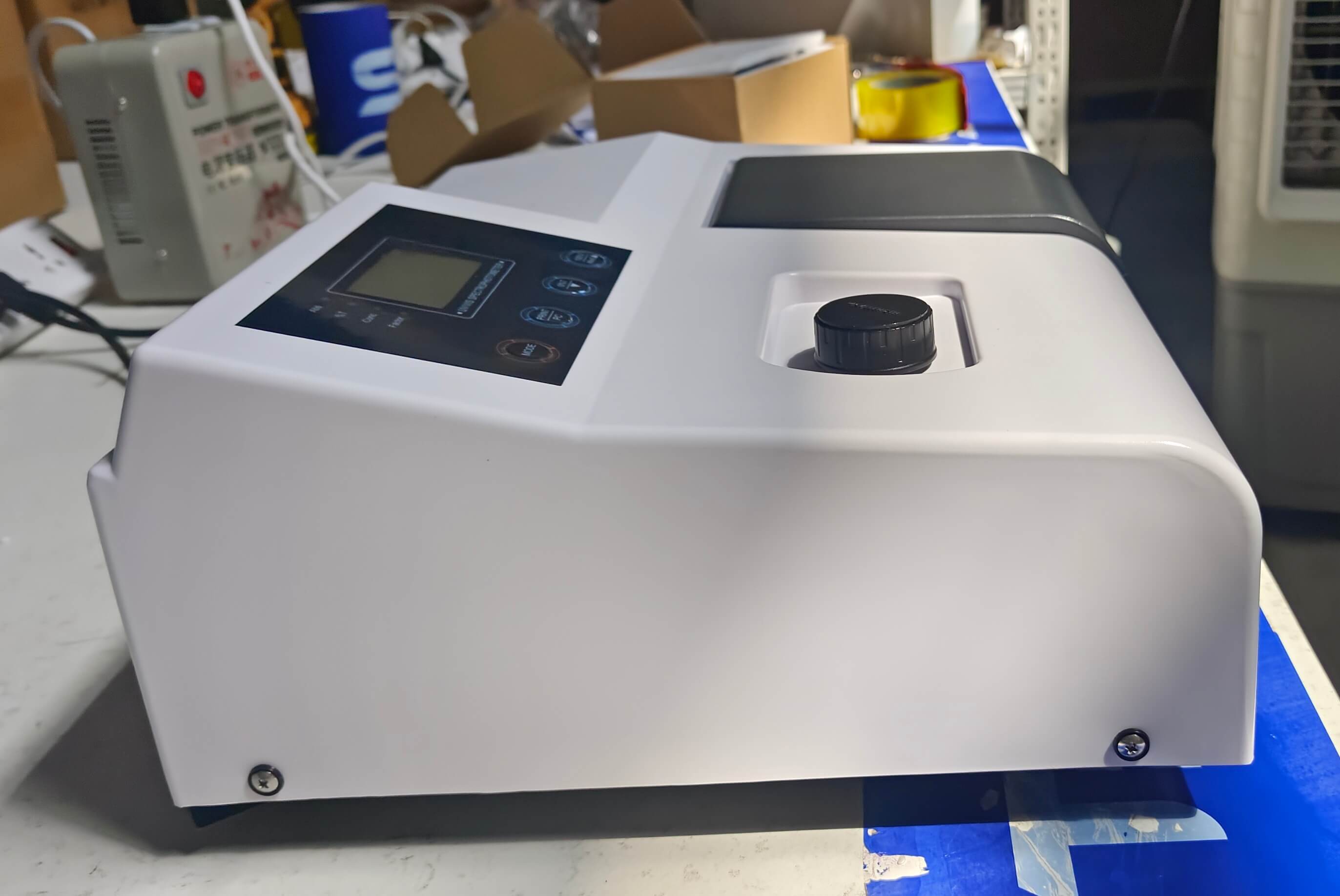

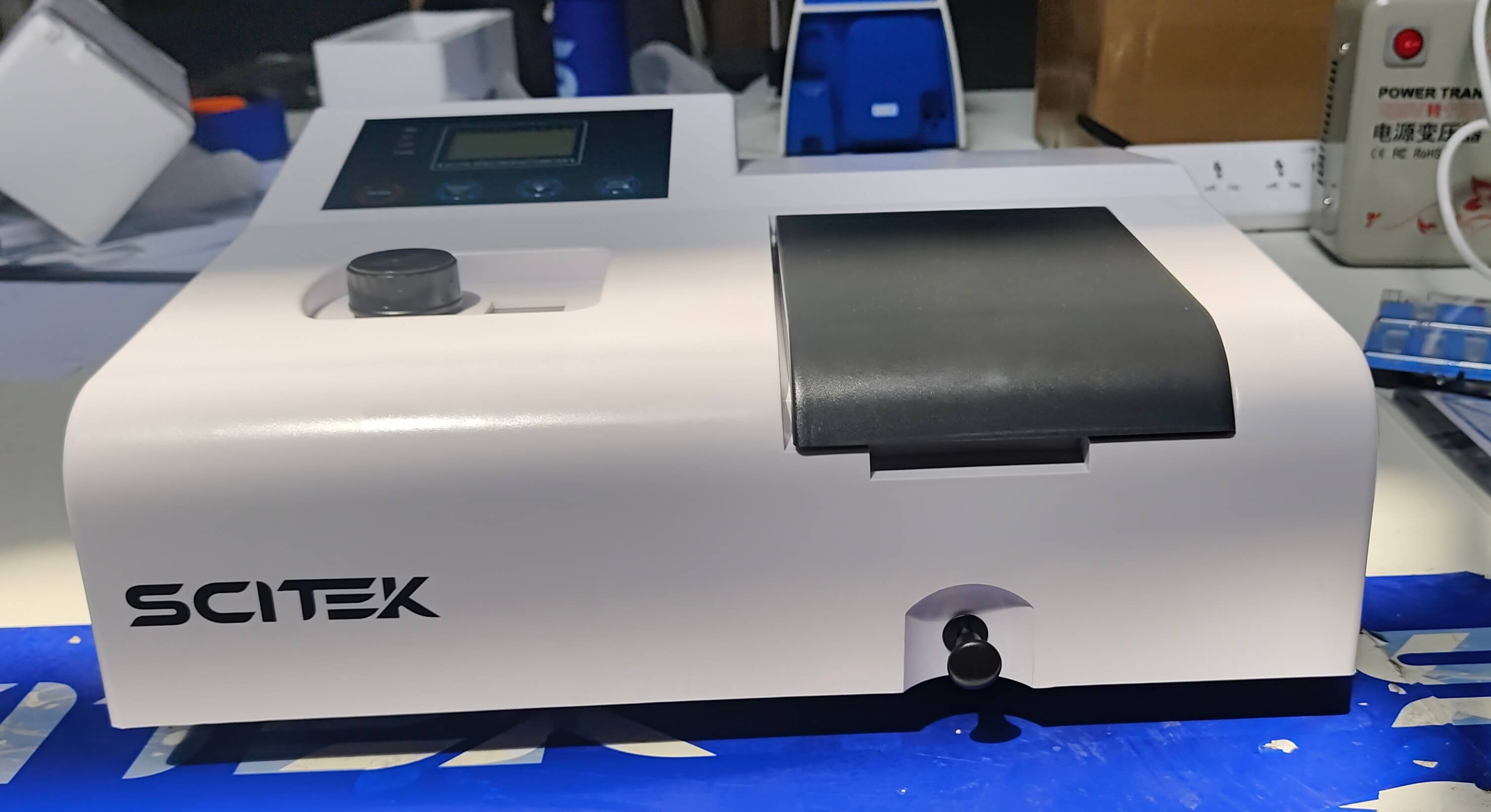

This UV-VIS spectrophotometer finds extensive applications across various sectors, including but not limited to medicine and healthcare, clinical testing, biochemistry, petrochemical industry, environmental protection, quality control, judicial criminal investigation, inspection, quarantine, forestry, geological exploration, and food testing. It stands as an essential analytical tool utilized in physical and chemical laboratories for a range of purposes.
UV Vis Spectrophotometer Features:

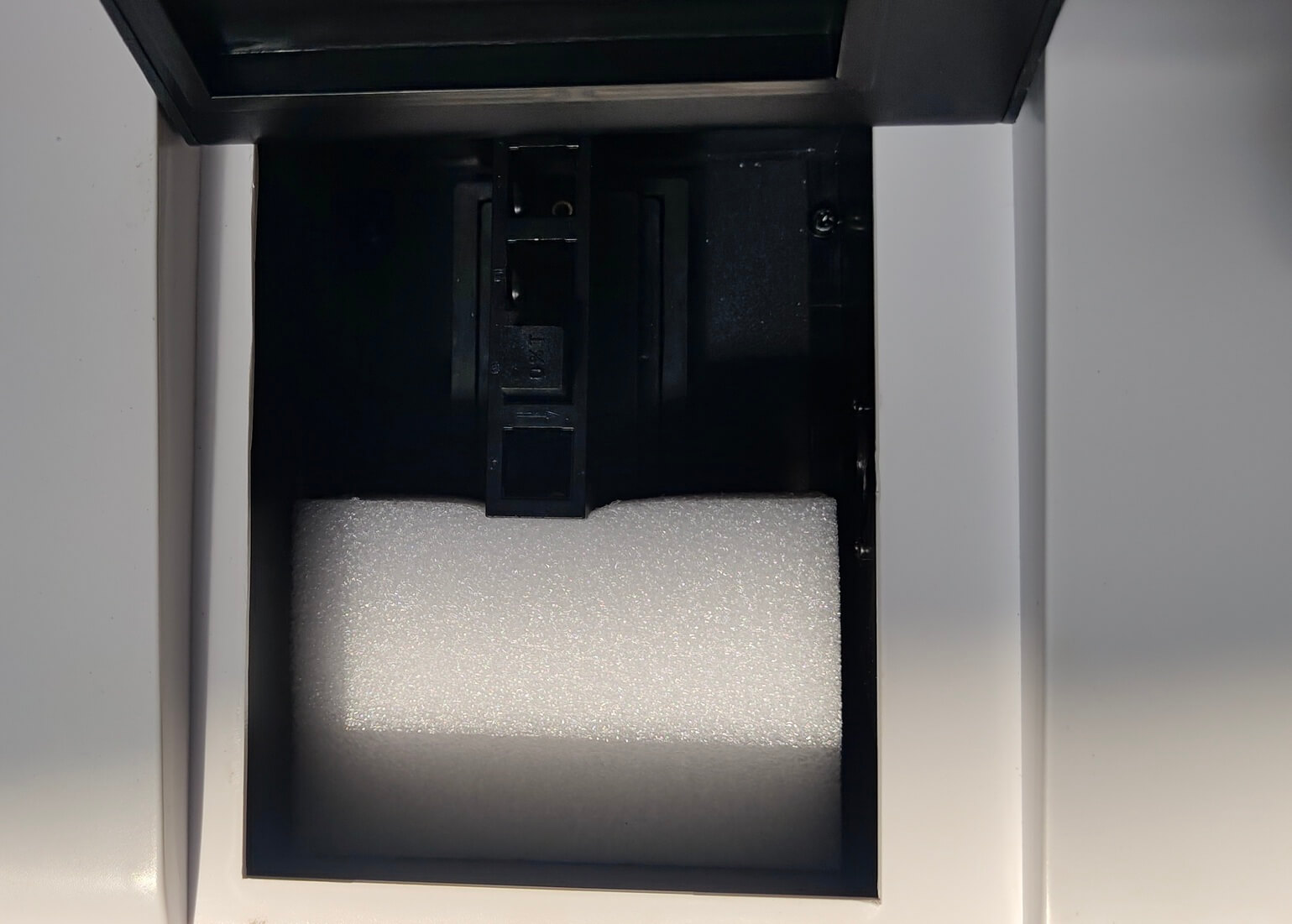

The large sample chamber can accommodate 5-100mm cuvettes.
Can be directly connected to a special printer (optional) to print data.
All key components are imported with original equipment to ensure the accuracy and precision of measurement.
Digital display of measurement value.
The instrument adopts the latest microcomputer processing technology and is easy to operate.
Automatic light gate ensures the service life of the photoelectric sensor and makes instrument testing easier.
Touch Screen UV VIS Spectrometer Specifications:
| Model | SP-UV752E | SP-UV752N |
|---|
| Optical System | Achromatic (1200 lines/mm grating) |
| Wavelength Range | 195-1020nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | 1nm |
| Bandwidth | 5nm | 4nm |
| Photometric Accuracy | 0.5%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | 0-200%T，-3-3A |
| Drift | ≤0.2%T |
| Baseline Straightness | ±0.004A/h@500nm | ±0.002A/h@500nm |
| Noise | 100%≤0.3%T |
| Stability | ±0.004A/h@500nm | ±0.002A/h@500nm |
| Way of Working | T,A,C |
| Display Range | 0-200%T, -0.3-3A |
| Display | 4-digit LCD LED display |
| Wavelength Driver | Manual |
| Printer (Interface) | Thermal printer (parallel port) option |
| Energy (Light Source) | Imported tungsten lamp, imported deuterium lamp |
| Light Switching Method | Automatic |
| Consumption | 70W |
| Power Supply | AC 220/110V, 50/60Hz |
| Shipping Size(WxDxH)(mm) | 520×450×300 |
| N.W./G.W.(kg) | 9/11 |
