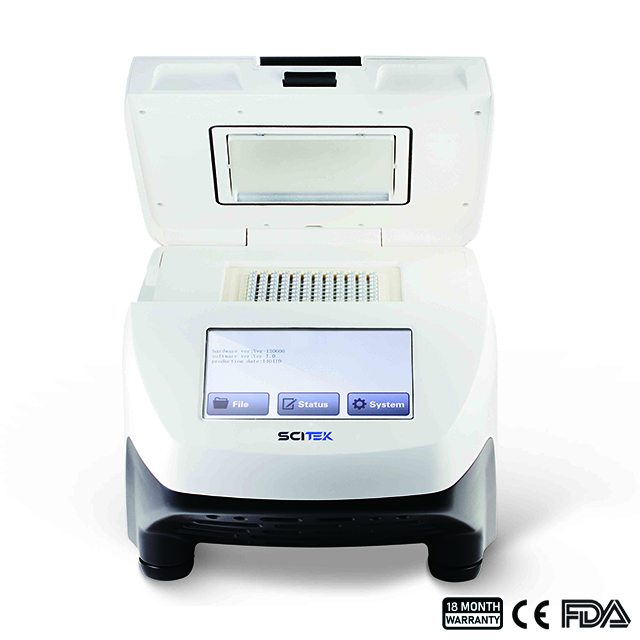

Thermal Cycler, Touch Screen

Model : PCR-TCS

Sample Capacity : 96x0.2mL PCR tube; 8x12 PCR plate or 96 well plate
Heating Temperature Range : 4-105℃
Max. Heating/Cooling Rate : 3℃/Sec
Size (W×D×H)(mm) : 280x370x250
The PCR-TCG thermal cycler is a compact, accurate and economical thermal cycler designed to meet your laboratory's basic thermal cycling needs.
Availability:
Quantity:

Thermal Cycler Specifications:

Model PCR-TCS
Sample Capacity 96x0.2mL PCR tube, 8x12 PCR plate or 96 well plate
Heating Temperature Range 4-105℃
Lid Temperature Range 30-110℃
Temperature Display Accuracy ±0.1℃
Temperature Control Accuracy (at 55℃) ±0.3℃
Temperature Uniformity(at 55℃) <0.3℃
Max. Heating/Cooling Rate 3℃/Sec
Adapter Block Material Aluminum
Display 7'' LCD 800×480
Input Touch panel
User Defined File System Max. 30 segments 99 cyclesmax. 16 folder and 16 files each folder
Power off Protection Yes
Power Supply AC100-120V/200-240V, 50/60Hz
Size(W×D×H)(mm) 280x370x250
Shipping Size(W×D×H)(mm) 620x440x460
N.W./G.W. (kg) 11.6/15

Thermal Cycler Features:

The PCR-TCS thermal cycler is equipped with a capacitive touch screen for easy one-touch parameter setting and viewing of test results. It is suitable for biotechnology, genotyping, cloning, mutagenesis and sequencing.

  1. High-performance DSP enables faster processing of data in PCR reactions, improving reaction speed and accuracy.

  2. Temperature control algorithms can respond faster to temperature changes to accommodate different types of PCR reactions, including standard PCR, real-time quantitative PCR, digital PCR, and more.

  3. Excellent temperature uniformity reduces these deviations and improves the consistency and comparability of PCR reaction results.

  4. Rapid heating and cooling rates for great savings in experiment time.

  5. Innovative heating/cooling elements enable uniform temperature distribution, avoiding hot and cold spots.

  6. Energy consumption is saved through more efficient energy conversion and temperature regulation mechanisms. This helps to reduce experimental costs and is environmentally friendly.

Details of Thermal Cycler:

dry block incubator

The dry bath incubator is equipped with knobs and clear buttons for easy setting of temperature and time for a variety of laboratory sample heating needs.

dry block incubator

The top of the dry bath incubator is designed to allow the user to place samples easily and ensure uniform temperature distribution for consistent results. The clear display and simple layout make the use of the device intuitive and efficient for experiments that require precise heating.

dry bath incubator

PCR-TCS (7)

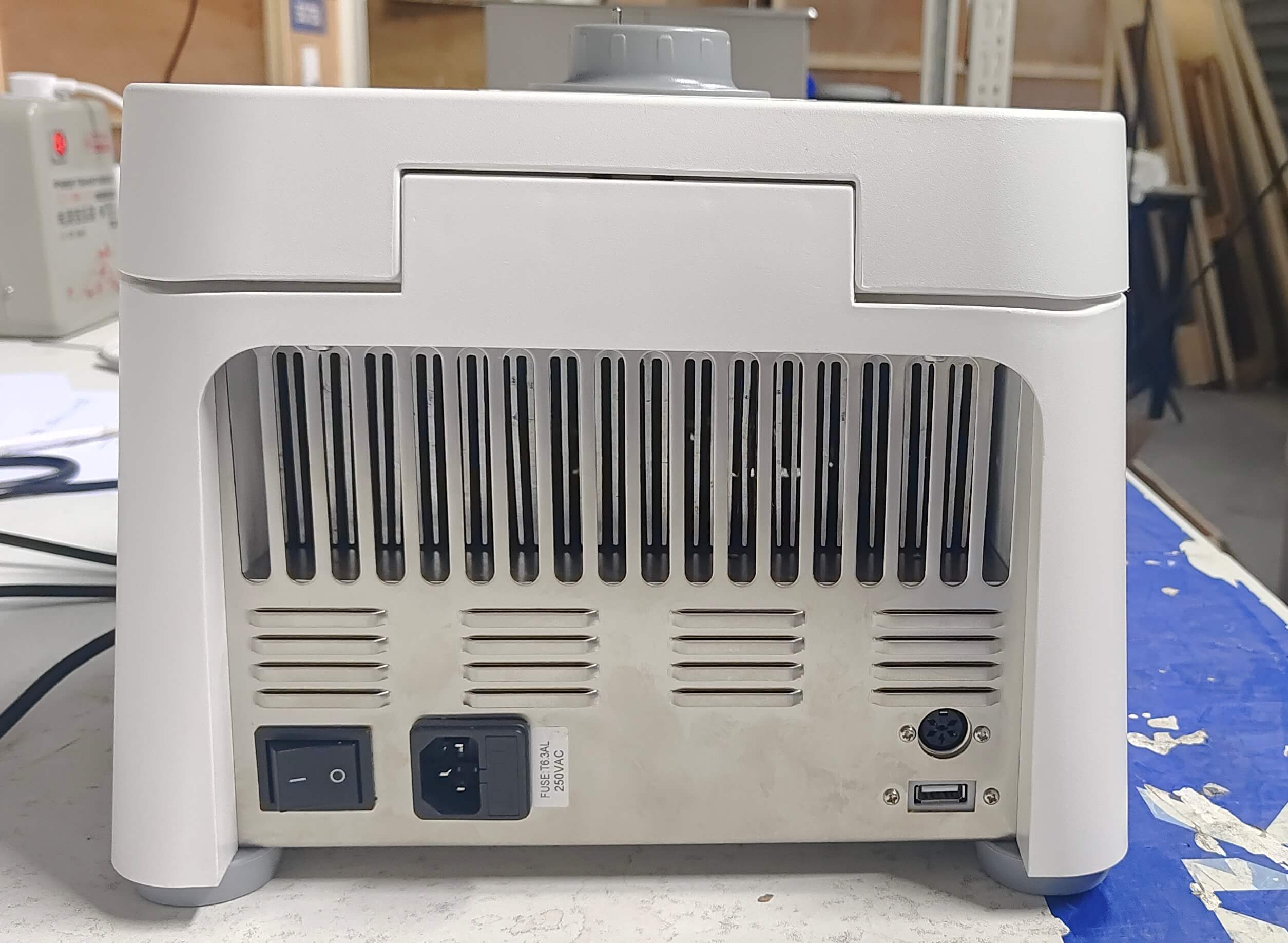

Rear ports and ventilation systems are shown to ensure that the dry block incubator maintains proper heat dissipation during operation to prevent overheating. The rear is well designed for easy access to power and necessary maintenance.

PCR-TCS (5)

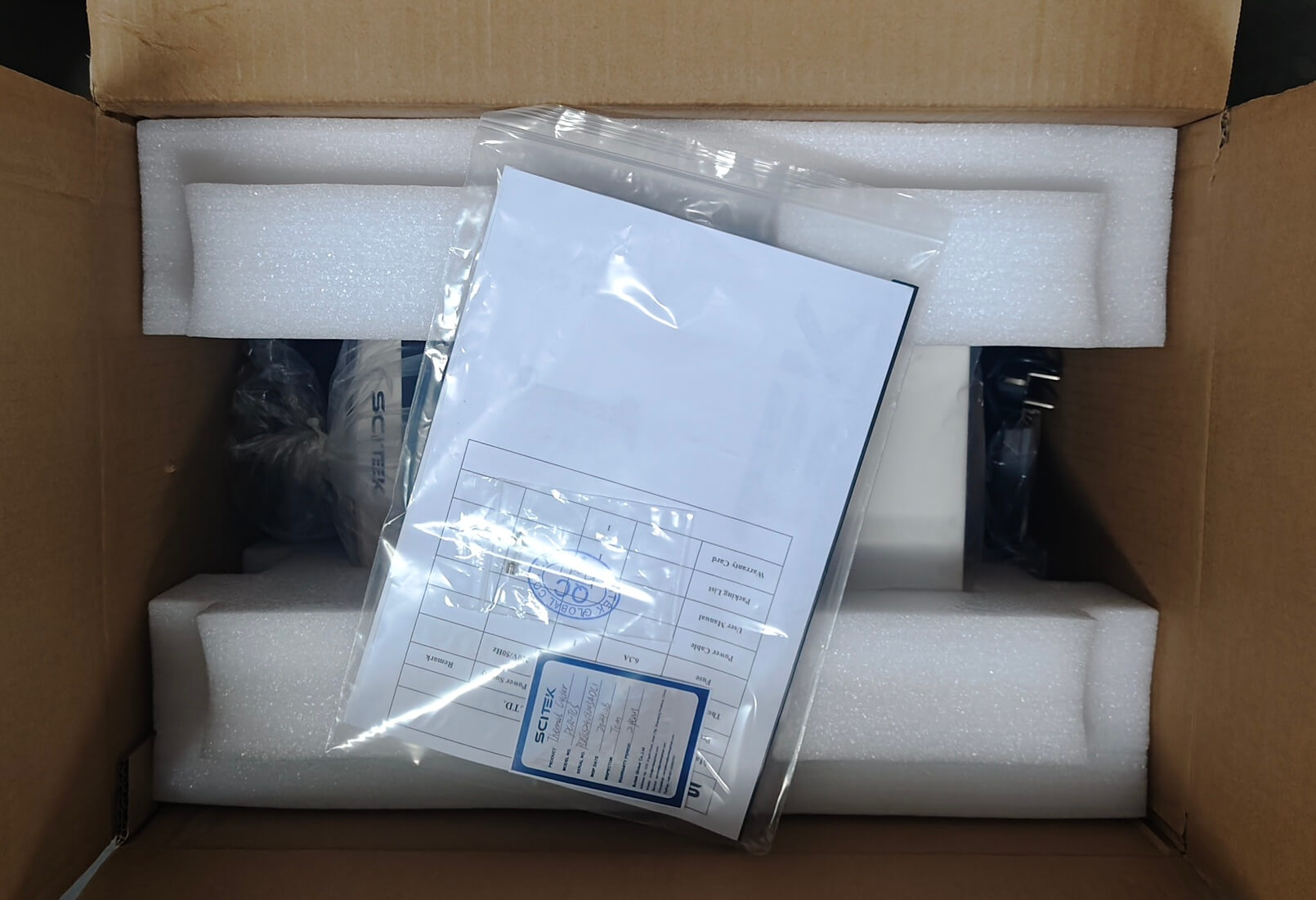

The dry block incubator is properly wrapped in protective material to ensure that it is not damaged during transportation. The package also contains the accessories that come with the device.
