Tablet Hardness Tester

Model : THT-I

Hardness Test Range : 2-198N; 0.2KG-20KG
Resolution : 0.1N; 0.01KG
Hardness Measurement Accuracy Range : ±0.5%
Tablet Measurement Diameter : 2-20mm
High-Quality Tablet Hardness Tester for Sale at a Low Price
Availability:
Quantity:

Tablet Hardness Tester Specifications:

Model THT-I
Hardness Test Range 2-198N; 0.2KG-20KG
Resolution 0.1N; 0.01KG
Hardness Measurement Accuracy Range: ±0.5%
Tablet Measurement Diameter 2-20mm
Power Supply AC220/110V; 50/60Hz
Power 10W
Size(W×D×H)(mm) 280x180x110
Shipping Size(W×D×H)(mm) 450x320x250
G.W. (kg) 9

Tablet Hardness Tester Features:

The THT-I is a compact tablet hardness tester that can measure and evaluate the hardness of pills, tablets, granules and other solid preparations.

  1. Using advanced technology and precise sensors, it can measure the hardness of samples quickly and accurately.

  2. Manual tablet loading and manual tablet pressing for easy operation.

  3. Intuitive operation interface and simple operation procedure make it easy to use.

  4. The system can realize automatic locking, linearity error correction, display, cycle test, reset, fault diagnosis and other functions.

  5. Provide unit conversion function which can realize the conversion before and after the test.

  6. Advanced materials and design with good shock resistance and durability, suitable for a variety of laboratory environments.

  7. It is convenient to use standard weights to correct the measurement accuracy of the instrument periodically.

  8. Multiple measurement modes and parameter setting options to meet the testing needs of different samples.

Details of Tablet Hardness Tester:

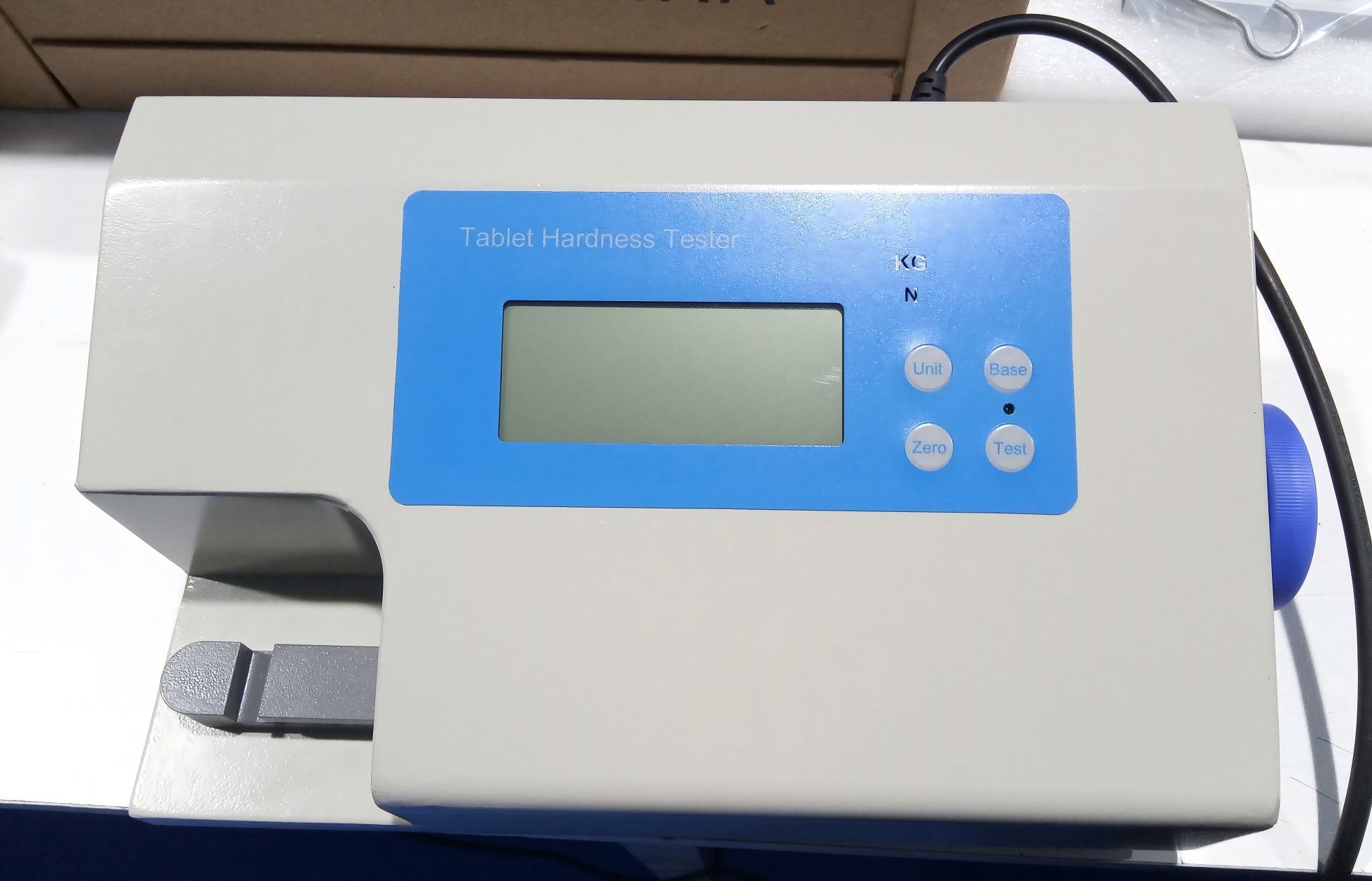

Tablet Hardness Tester (2)

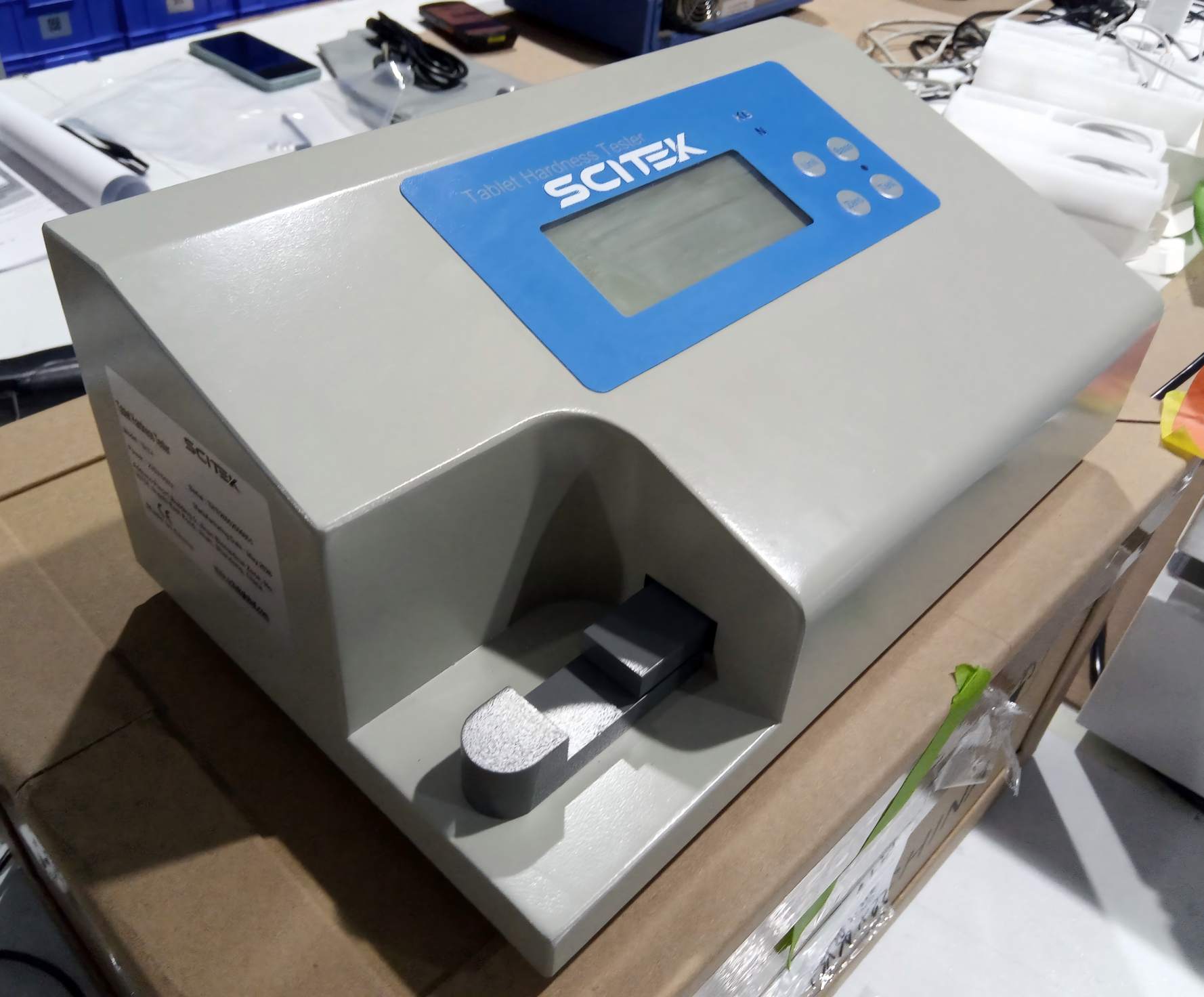

Tablet Hardness Tester (5)

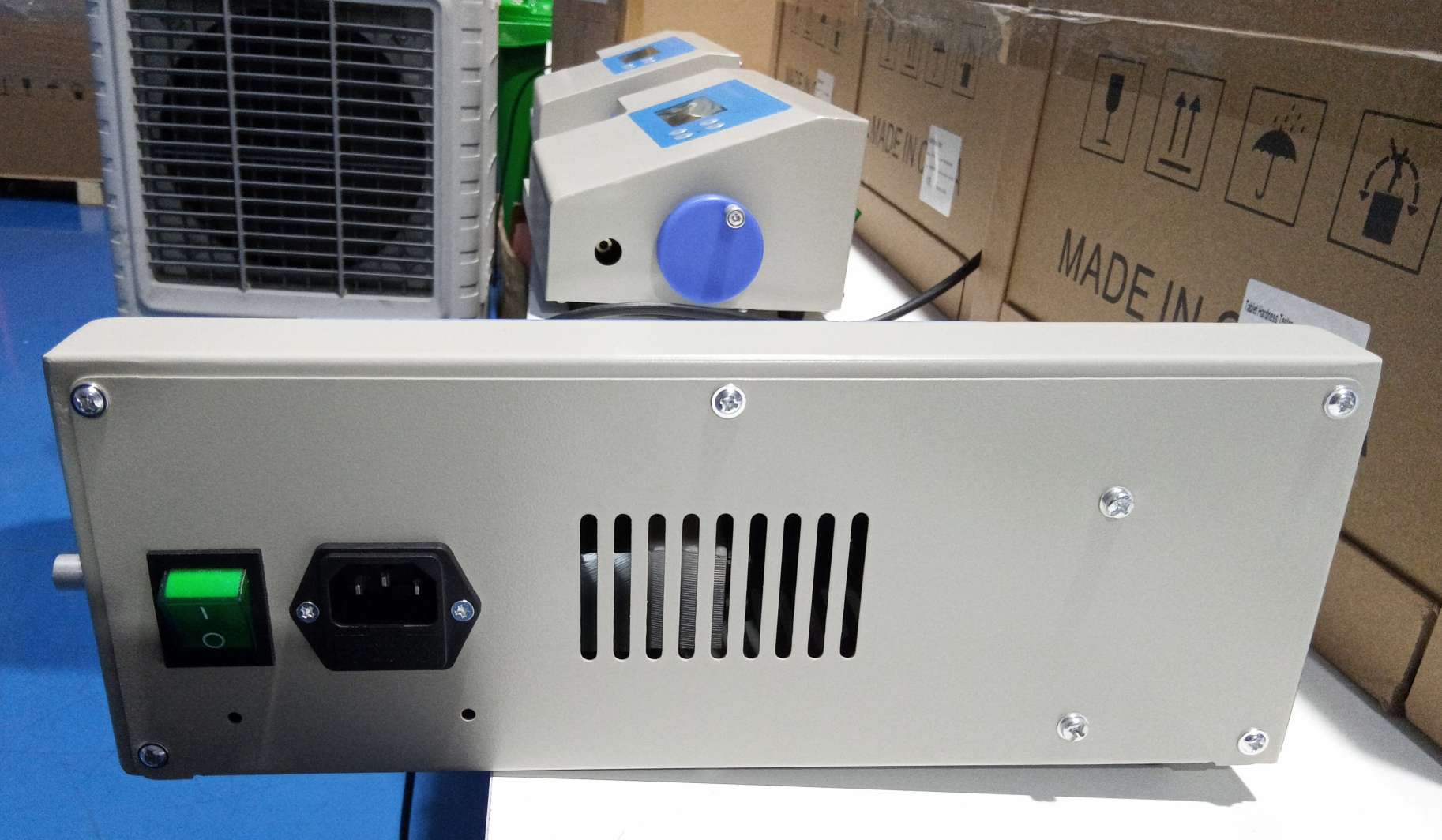

Tablet Hardness Tester (1)

Tablet Hardness Tester (9)

Tablet Hardness Tester (7)

Tablet Hardness Tester (3)

How is Tablet Hardness Tested?

In the pharmaceutical industry, tablet hardness testing is designed to ensure that medications in tablet form can withstand the manufacturing and transportation processes without breaking. Hardness testers can apply pressure directly to tablets or perform breakage or bending tests.

What Factors Affect Tablet Hardness Test Results?

Tablet hardness test results are influenced by the tablet’s shape, size, and composition, as well as by test conditions such as tableting speed and applied pressure. Using an automated testing system helps eliminate operator variability and ensures consistency in test results across different batches.
