Model | TFT-4 |
---|---|
Dissolving Quantity | 3pcs |
Temperature Control Range | (20~40)±0.3℃ |
Speed Adjustable Range | (20~200)±2rpm |
Timing Range | (1~600)±0.5min |
Swing of Paddle Rod | ±0.5mm |
Swing of Rotation Basket | ±1.0mm |
Number of Baskets | 2 |
Reciprocation Frequency | (30~32)times/min |
Reciprocation Stroke | (55±2)mm |
Number of Cylinders | 1 |
Cylinder Size Inner Diameter | 286mm, depth39mm |
Sliding Height | 156mm |
Cylinder Speed | 25±1times/min |
Number of Cylinder Turns | 100±1 turns |
Hardness Range | 2~199N±1N |
Diameter Range | 3~40mm |
Power Supply | AC220V, 50/60Hz |
Size(W×D×H)(mm) | 570x520x470 |
Shipping Size(W×D×H)(mm) | 730x460x700 |
G.W. (kg) | 50 |

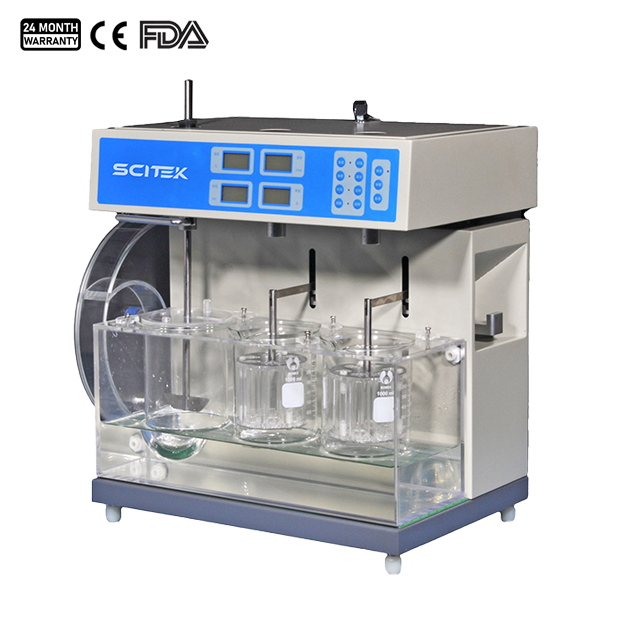

The tablet four-usage tester is equipped with a high-precision pressure transducer to accurately perform a full range of tests for friability, tablet hardness, disintegration time, and dissolution. It is a versatile, fully automated and ideal equipment for pharmaceutical testing. In addition, the machine's paddles and other key components are made of high-quality SS316L stainless steel. The Tablet Four-usage Tester automatically displays test results without manual operation. This helps to obtain test data quickly, reducing testing time and labor costs.
Intelligent operation, with automatic detection, diagnosis of faults, and automatic alarms to ensure safer use.
Adoption of magnetic pump circulating water system to ensure uniform heating and constant temperature of water bath
A high-precision temperature control system can automatically regulate the temperature to ensure the accuracy of the test.
Can set timer shutdown time and test lock function to lock the test results on the screen for recording and analyses
Real-time display of the actual value and preset value, intuitive display of data to facilitate users to compare data
Three cups and three rods in a single-word, single-row design, the head of the manual flip is smooth and flexible.
Automatic display, lock, reset, and cycle test function.
