The tablet disintegration tester is designed in accordance with relevant international standards and pharmacopoeial requirements. It features intelligent controls and advanced technology to ensure accurate and reliable test results. Its user-friendly design also makes daily testing simple and efficient.
Tablet Disintegration Tester Specifications:
| Model | DTLT-I | DTLT-II | DTLT-III | DTLT-IV | DTLT-BJ |
| Temperature Prefabrication Range | RT~50℃ |
| Display Resolution | 0.1℃ |
| Temperature Control Accuracy | ±0.3℃ |
| Timing Prefabrication Range | 1min~900min | 1min~999min | 1min~900min | 1min~999min |
| Time Control Accuracy | ±0.5min |
| Work Noise | ＜60db |
| Number of Lifting Baskets | 1 set | 2 sets | 3 sets | 4 sets | 2 sets of ordinary disintegration baskets, 1 set of oral disintegration special baskets |
| Lifting Frequency of Basket | 30~31 times/min |
| Lifting Distance of Basket | (55±1) mm |
| Minimum Spacing from Screen to Beaker Bottom | 25mm±2mm |
| Mesh Size | Standard configuration 2mm (Optional for 0.425mm and 1mm bore diameters) | Standard configuration 2mm*2 (Optional for 0.425mm and 1mm bore diameters) and 710um*1
|
| Power Supply | AC220/110V; 50/60Hz |
| Total Power | 600W |
| Size (W×D×H)(mm) | 260x300x440 | 400x320x440 | 540x320x440 | 620x350x470 | 540x320x440 |
| Shipping Size (W×D×H)(mm) | 360x400x530 | 520x410x550 | 660x420x550 | 720x420x550 | 670x430x550 |
| N.W./G.W. (kg) | 12/17 | 15/23 | 20/30 | 22/32 | 18/25 |
Tablet Disintegration Tester Features:
Several models are available to meet the needs of different industries.
Adopting compact structure for easy operation and advanced IC design for reliable performance
The instrument adopts an intelligent control system for precise control and alarm to ensure the accuracy and reliability of the test.
Clock timer function facilitates timed testing, ensuring standardization and accuracy of testing.
Heating water bath function ensures the consistency of each test.
The overall exterior design is neat and tidy, ensuring instrument compliance.
The tablet disintegration tester has an internal lighting device to provide a good observation environment for experiment operators.

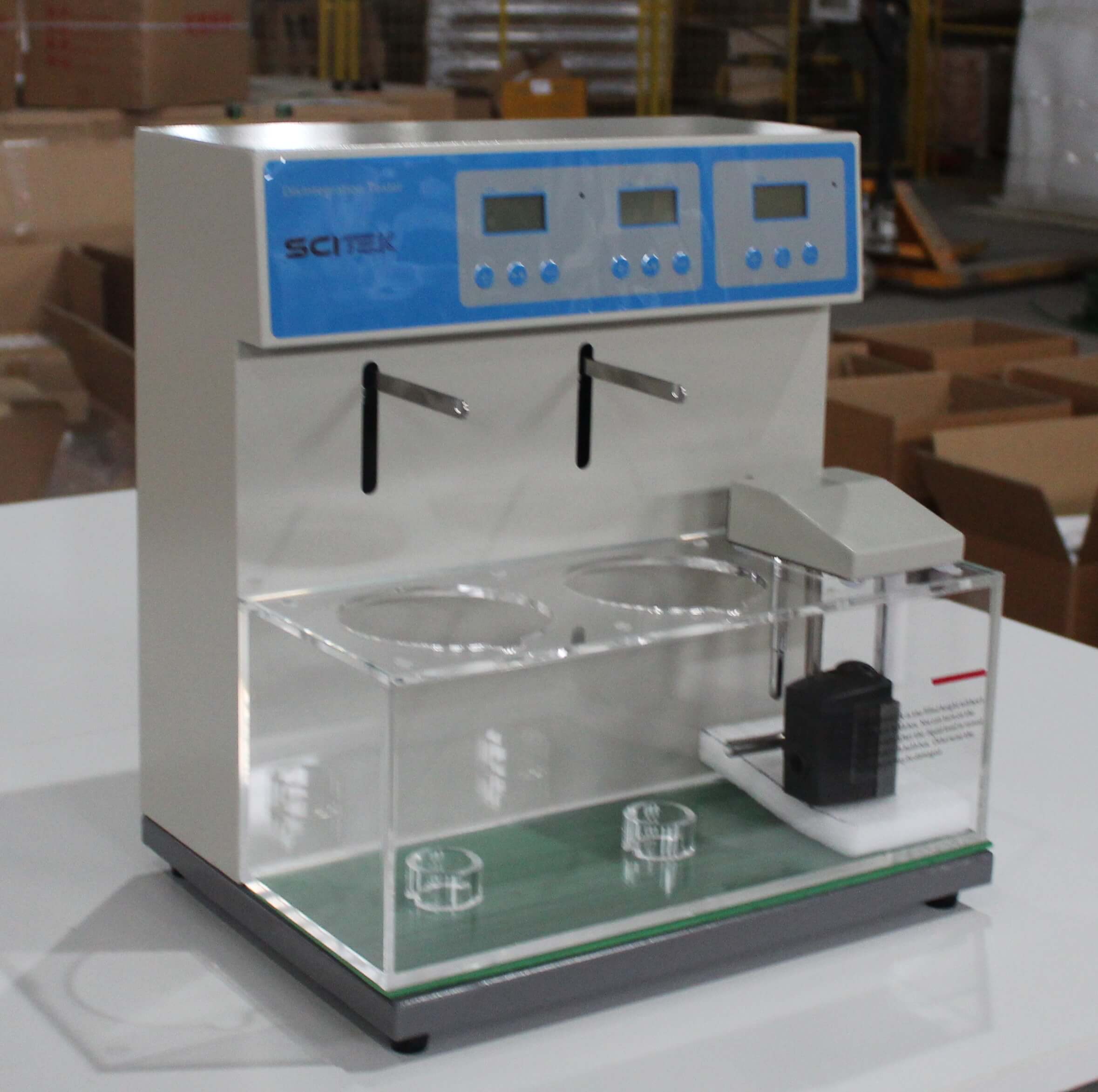

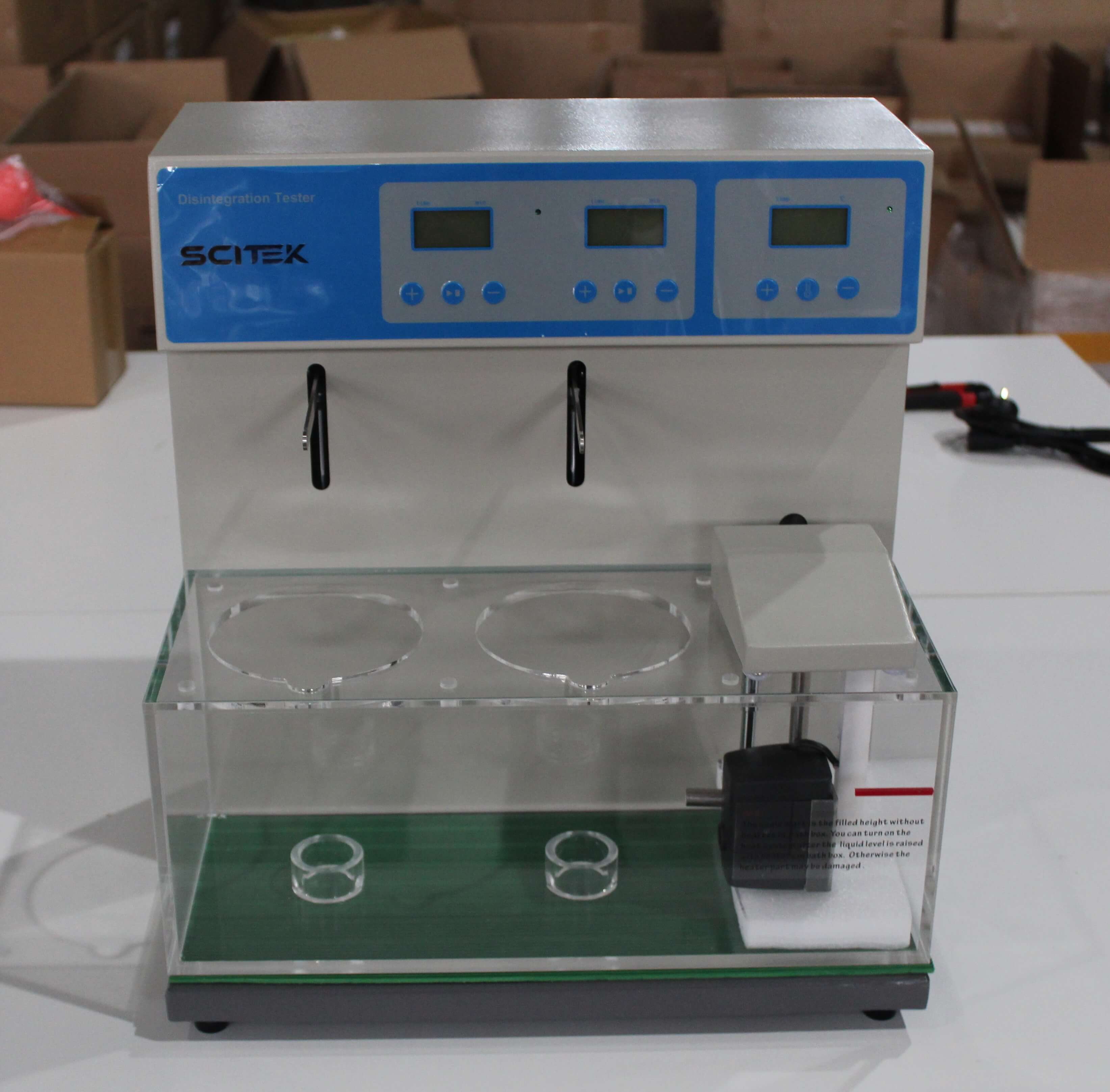

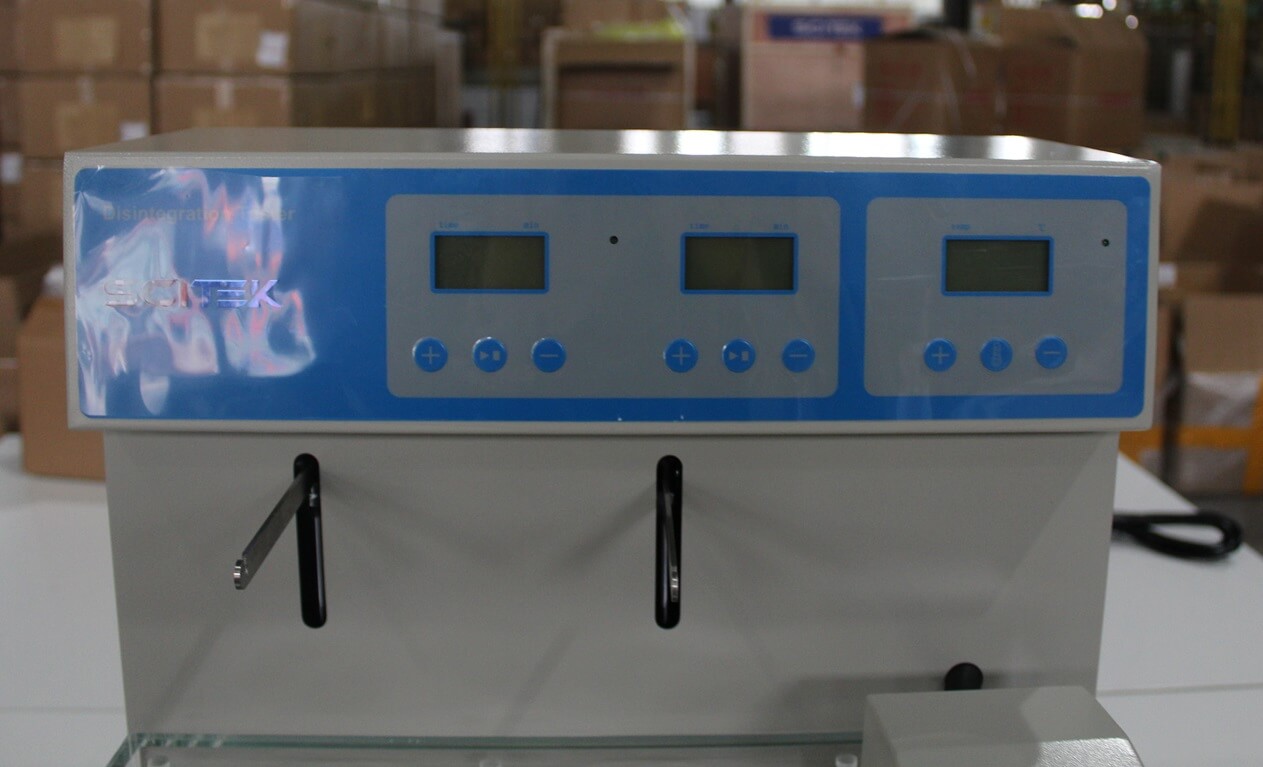

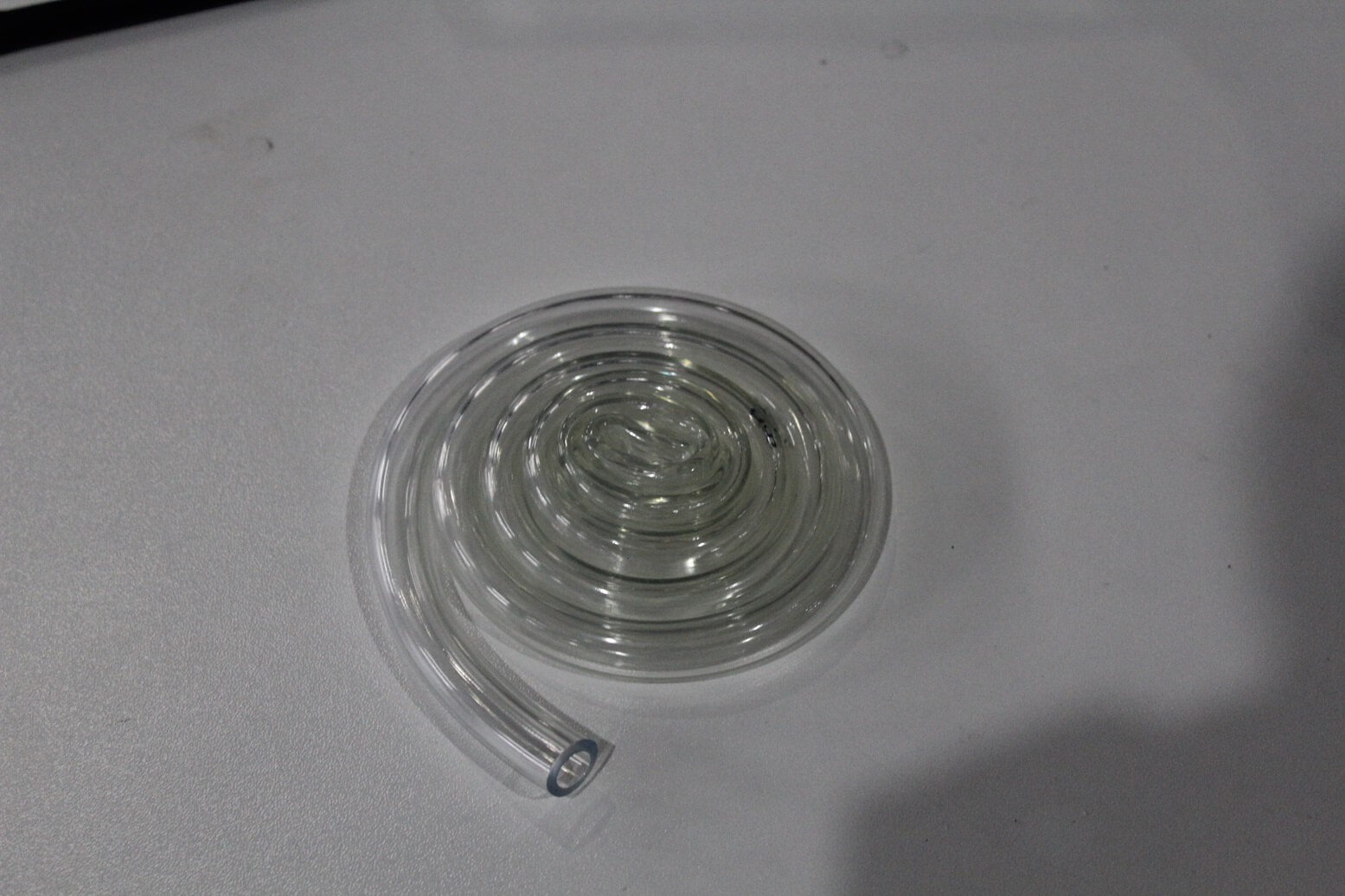

Details of Disintegration Tester (DTLT-II):

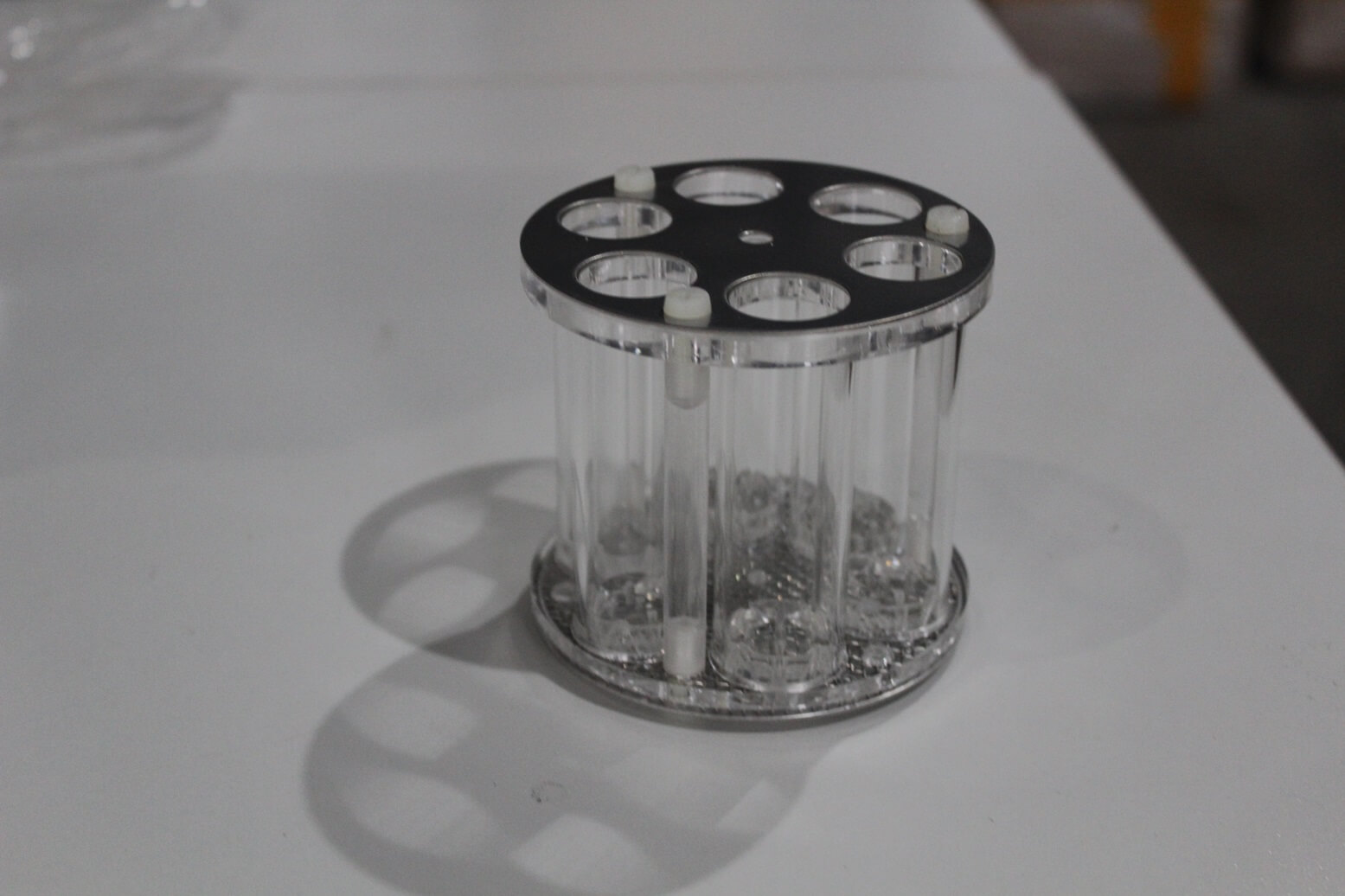

The tablet and capsule disintegration tester's test rack and glass beaker are fully equipped and compatible with multiple sample positions.

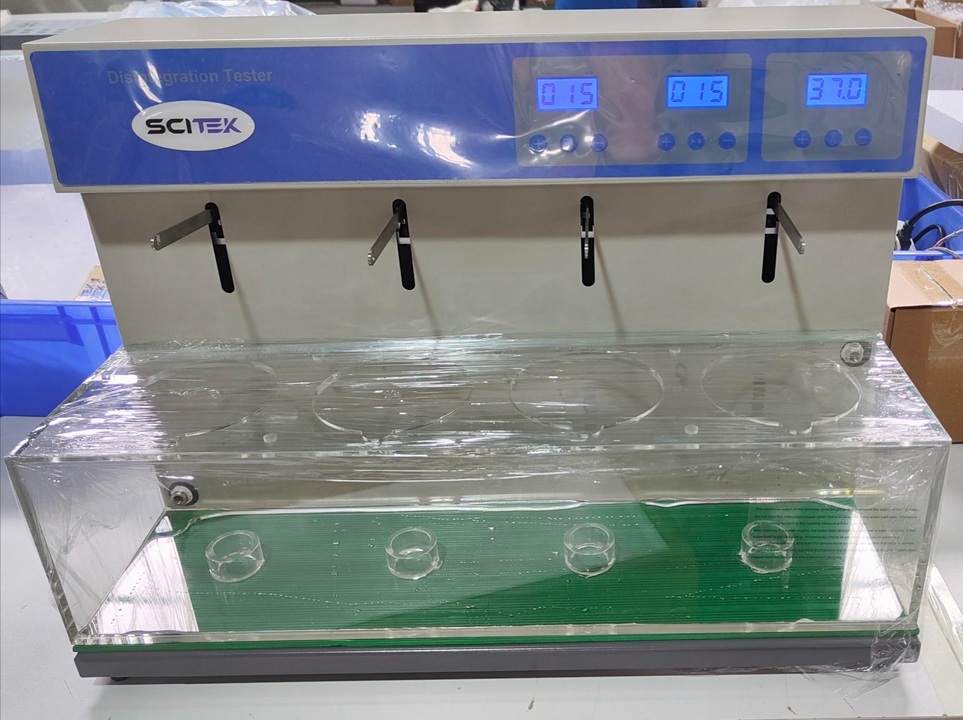

DTLT-IV:
The disintegration tester is equipped with a heating control system and automatic timing function to ensure a constant temperature and accurate testing process.
