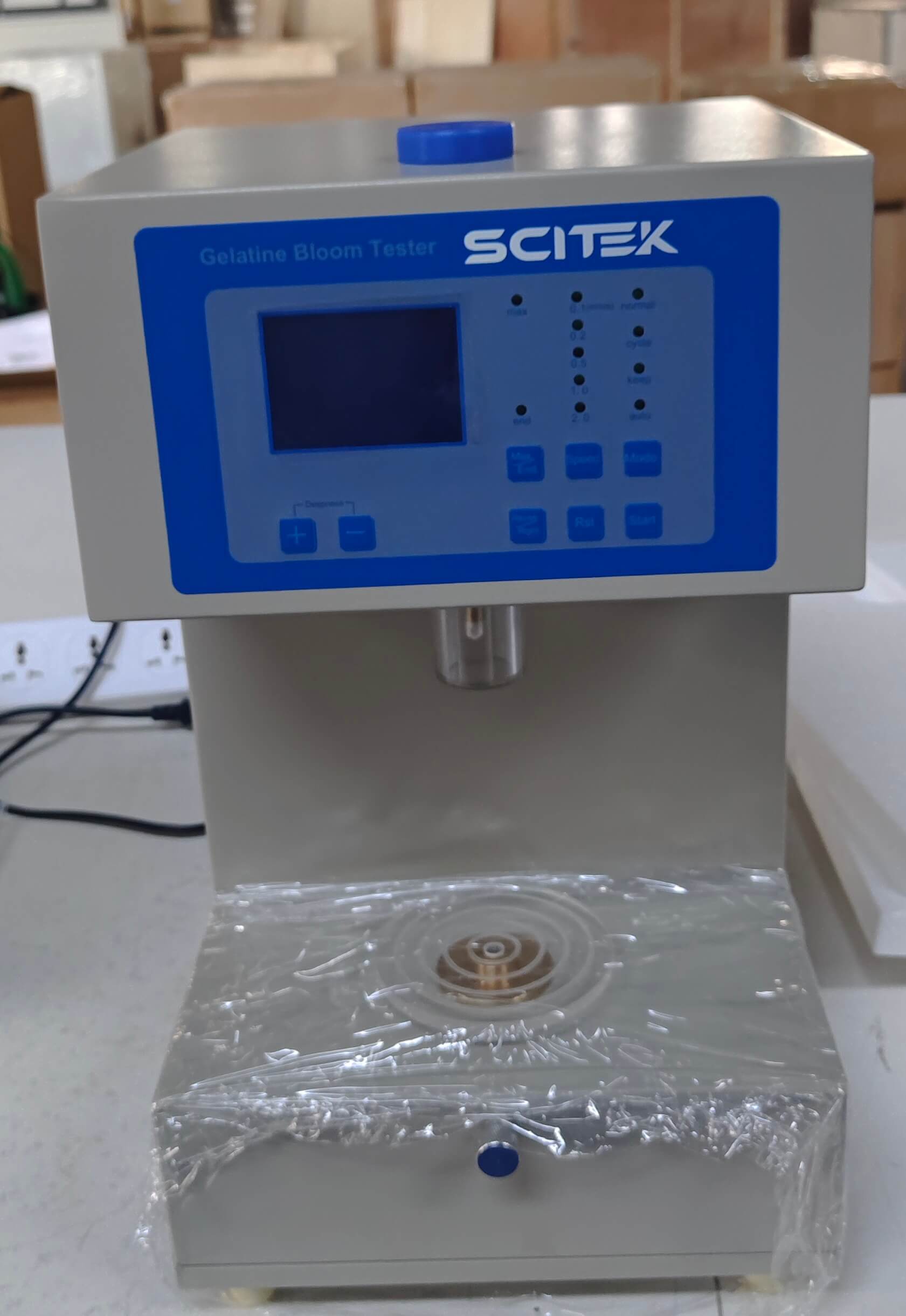

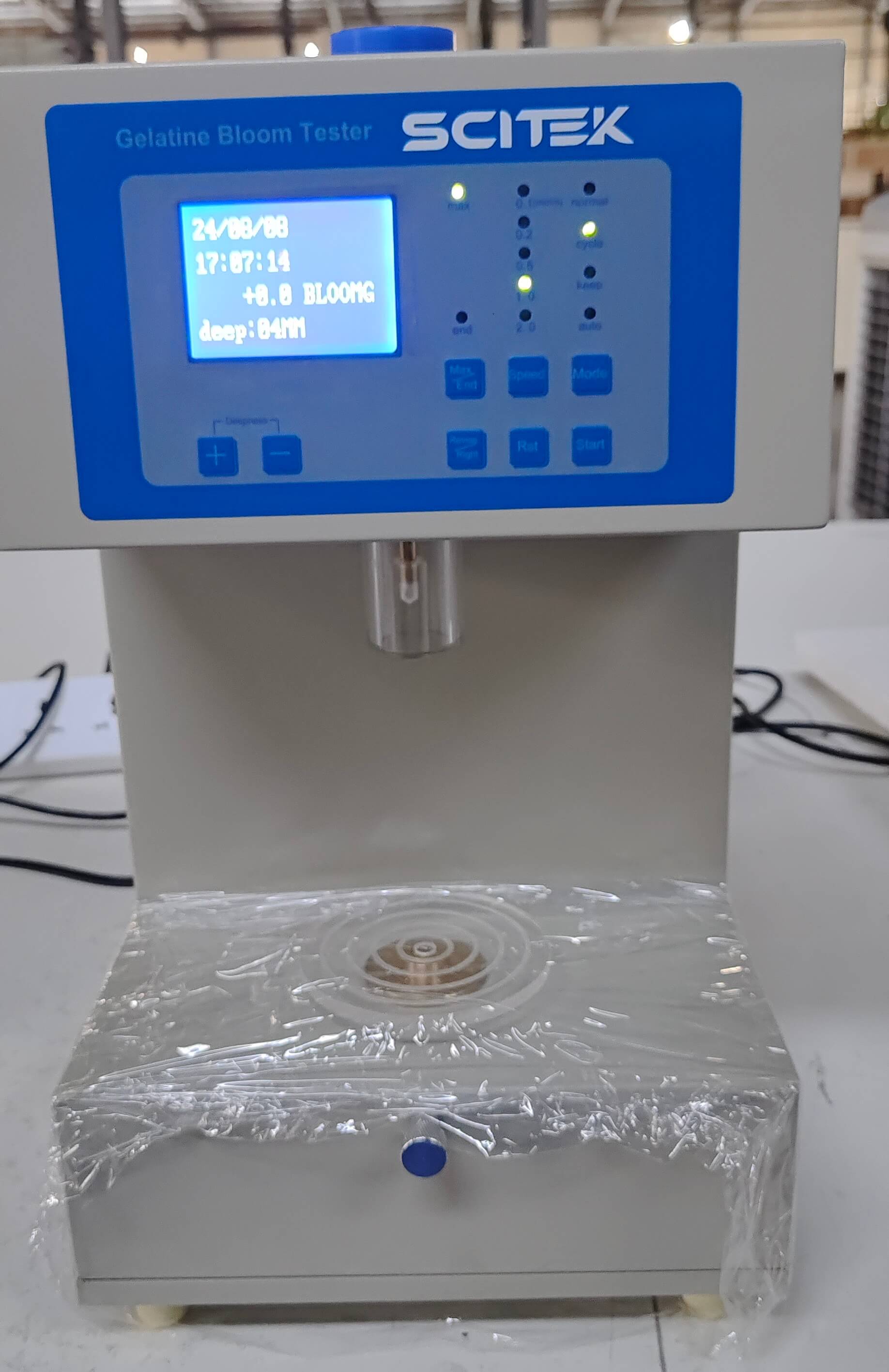

Gelatin Gel Strength Tester

Model : GST-II; GST-III

Test Range : 5-1000 Bloomg
Test Precision : ±0.3%
Resolution : 1g
Repeated Measurement Error : ±1 Bloomg
Sampling Depth : 1-60mm


Availability:
Quantity:

Gelatin Gel Strength Tester Specifications:

ModelGST-IIGST-III
Test Range5-1000 Bloomg
Test Precision±0.3%
Resolution1g
Repeated Measurement Error±1 Bloomg
Sampling Depth1-60mm
Stroke Error≤±0.1mm
Stroke Error of High-speed Measurement≤±0.1mm
Measured ValueTake bioom gas the unit
Measured Diameter of Cylinder12.700±0.010mm
Standard Gel Strength BottleVolume=150ml; inner diameter=59mm; height=85mm

Printer


/Embedded micro printer, standard serial printing, convenient storage of experimental data
Power SupplyAC220/110V; 50/60Hz
Total Power60W
Size(W×D×H)(mm)260x260x450
Shipping Size(W×D×H)(mm)380x380x550
N.W./G.W. (kg)10/18
Thermostatic Water Tank and Refrigerating Machine Technical Indexes:
Water Bath Temperature Control Range5~60℃
Water Bath Temperature Control Precision±0.1℃
Refrigerating Time30℃→10℃<40min
Power SupplyAC220V, 50Hz
Thermostatic Water Tank HW-III
Size(W×D×H)(mm)580x440x220
Shipping Size(W×D×H)(mm)710x560x380
N.W./G.W. (kg)20/30
Refrigerating Machine ZL-III
Size(W×D×H)(mm)480x380x290
Shipping Size(W×D×H)(mm)600x500x410
N.W./G.W. (kg)15/23

Gelatin Gel Strength Tester Features:

Gelatin gel strength tester is a device for measuring gelatinous substances' gel strength or gelatin strength.

  1. High-definition display interface with easy-to-use controls so operators can access them easily

  2. Digital display provides clear and accurate readings

  3. Parameters such as test speed, temperature and other relevant settings can be arbitrarily adjusted to suit different testing requirements.

  4. Can be used to test a wide range of gelling substances, ensuring broad applicability in different industries

  5. Data storage enables users to store and retrieve test results for analysis or documentation.

  6. A number of safety features protect the operator during use.
