This tablet friability tester is equipped with advanced design features. It supports an automatic sample discharge function at the end of the test for easy sample loading and unloading. Tablet friability tester can be connected to an analytical balance for automatic weighing, simplifying the workflow associated with routine friability testing.
Tablet Friability Tester Specifications:
| Model | TFT-I | TFT-II | TFT-III | TFT-IV |
| Number of Cylinder | 2 | 1 |
| Rotating Speed | 20～100 rpm can be set arbitrarily | 25 rpm |
| Rotating Accuracy | ±1 rpm |
| Counting Mode | 5 turns～900 turns can be set arbitrarily; countdown is adopted | 100 turns, the countdown is adopted | 5 turns～900 turns can be set arbitrarily; countdown is adopted. | 5~900 turns |
| Inner Diameter of Cylinder | 286mm |
| Cylinder Depth | 39mm |
| Sliding Height | 156mm |
| Power Supply | AC220/110V, 50/60Hz |
| Total Power | 40W | 20W | 20W | 50W |
| Size(W×D×H)(mm) | 370x300x340 | 370x300x340 | 370x300x340 | 300x200x340 |
| Shipping Size (W×D×H)(mm) | 460x420x550 | 460x420x550 | 460x420x550 | 430x310x450 |
| N.W./G.W. (kg) | 12/20 | 12/20 | 12/20 | 8/12 |
Tablet Friability Tester Features:
Tablet friability tester is used to accurately and reliably test the physical properties of tablets for friability and abrasion resistance during production, packaging and storage.

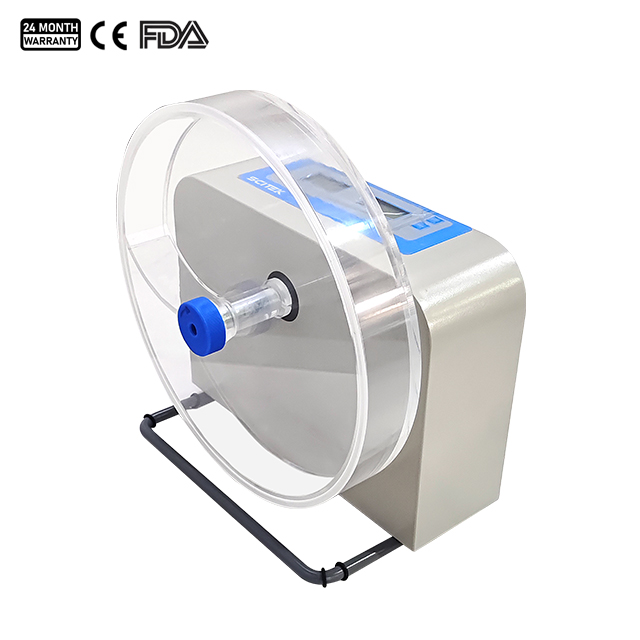

The TFT-IV is a single-circuit, single-cylinder tester that operates independently and stops automatically.
TFT-I, TFT-II, TFT-III are equipped with two cylinders, running synchronously and stopping automatically, providing higher testing efficiency.
Users can arbitrarily set the optimum speed according to specific test requirements, ensuring accurate and comprehensive fragility assessment and providing a wide range of experiment options.
A countdown timer further enhances the convenience of test parameter selection, allowing customized test protocols to meet specific analytical needs.
The barrel is made of high-quality, colorless, transparent plexiglas for clear visibility and long service life.
Instrument LCD supports split-time display of preset and real-time values.
Intelligent control of two performance parameters, cylinder speed and number of revolutions, ensures accurate and efficient assessment of tablet friability.
Details of Tablet Friability Tester (TFT-III):
Intuitive push-button controls simplify operation, with a removable waste container for automatic sample evacuation.
Integrated printer saves valuable bench space in the lab
Why is tablet fragility so important?
Pharmaceutical tablets are subject to mechanical shock during handling, packaging and transport. The pressure on tablets can cause them to have fragile edges and, in extreme cases, even crack or break. For this reason, the friability testing of tablets is particularly important.
Several factors, including low moisture content, poor tablet design, and insufficient binder, can cause the weakening of tablets.
