Availability: | |
---|---|
Quantity: | |
Provide high-quality optical system and durable and reliable operating mechanism.The new design presents high-quality resolution and true color images to meet the high precision requirements of modern biomedicine,scientific research,modern electronic industry online detection and other scientific and technological industries.
Multifunction
Widely applicable: Suitable for multiple fields such as biology, medicine, industry, electronics, etc.
Multiple lighting methods: Supports both transmitted and reflected light to meet the needs of different samples.
High resolution and magnification
Clear imaging: Provides high-resolution images with clear details.
Variable magnification: The magnification factor can be adjusted to meet different observation needs.
Sample adaptability
Large sample support: Can observe larger or irregular samples.
Live observation: Suitable for observing live samples or dynamic processes.
Ergonomic Design
Comfortable observation: Binocular observation to reduce eye fatigue.
Easy to operate: The design conforms to ergonomics and the operation is simple.
Strong scalability
Rich accessories: Can be connected to devices such as cameras and monitors for easy recording and sharing.
Modular design: Components such as objective lenses and eyepieces can be replaced according to requirements.
Cost-effective
Economical and practical: The price is relatively low, and the maintenance cost is not high.

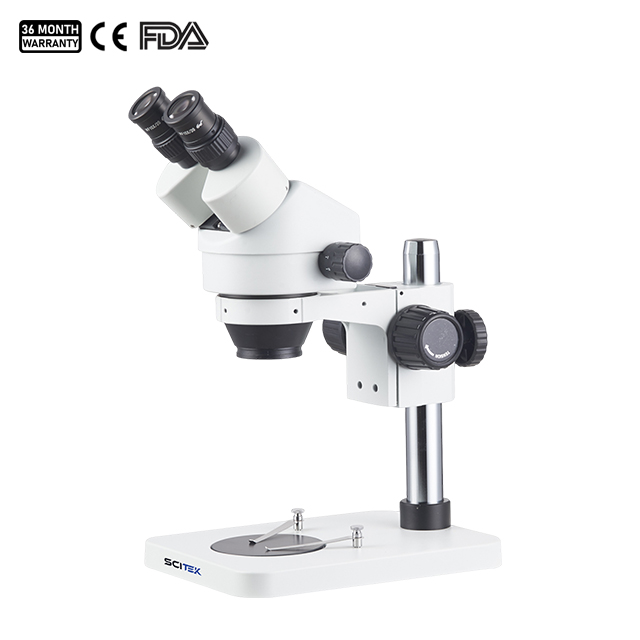

Model | MSC-D7045B | MSC-D7045T | MSC-DL7045B | MSC-DL7045T |
---|---|---|---|---|
Magnification | Standard: 7X-45X stereo zoom,3.5X-270X with optional lens | |||
Eyepiece | Standard WF10X/22mm high eye-point wide field eyepiece, convenience for eye-wearing Observers.WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm eyepiece is optional. | |||
WF10X/22mm | Magnification rate 7X, field of view28.6 | |||
Magnification rate 45X, field of view 4.4 | ||||
WF20X/10 mm | Magnification rate 14X, field of view 14.3 | |||
Magnification rate 90X, field of view2.2 | ||||
Microscope Head | Binocular/Trinocularhead, 45°inclined, 360°rotatable. Interpupillary distance: 54-75mm. Diopter adjustable on both tubes | |||
Objective | 0.7X-4.5X stereo zoom, Zoom Ratio: 6.4:1 | |||
Auxiiary Objective | Auxiliary Objective: 0.5X, 0.3X, 0.7X, 2X | |||
lumination | 5V3W up-down LED Illumination/LED ring lamp, refer to page “External llumination | |||
Camera Adapter | Phototube, C-mount for camera |
