Provide high-quality optical system and durable and reliable operating mechanism. The new design presents high-quality resolution and true color images to meet the high precision requirements of modern biomedicine, scientific research, modern electronic industry online detection and other scientific and technological industries.
Multifunction
Widely applicable: Suitable for multiple fields such as biology, medicine, industry, electronics, etc.
Multiple lighting methods: Supports both transmitted and reflected light to meet the needs of different samples.
High resolution and magnification
Clear imaging: Provides high-resolution images with clear details.
Variable magnification: The magnification factor can be adjusted to meet different observation needs.
Sample adaptability
Large sample support: Can observe larger or irregular samples.
Live observation: Suitable for observing live samples or dynamic processes.
Ergonomic Design
Comfortable observation: Binocular observation to reduce eye fatigue.
Easy to operate: The design conforms to ergonomics and the operation is simple.
Strong scalability
Rich accessories: Can be connected to devices such as cameras and monitors for easy recording and sharing.
Modular design: Components such as objective lenses and eyepieces can be replaced according to requirements.
Cost-effective
Economical and practical: The price is relatively low, and the maintenance cost is not high.
Model | MSC-D7060B | MSC-D7060T |
---|---|---|
Magnification | Standard: 7X-60X stereo zoom, 3.5X-200X with optional lens | |
Eyepiece | Standard WF10X/22mm high eye-point wide field eyepiece, convenience for eye-wearing Observers. WF15X/15mm, WF20X/10mm, WF25X/9mm eyepiece is optional | |
WF10X/22mm | Magnification rate 7X,field of view31.4 | |
Magnification rate 60X, field of view3.7 | ||
WF20X/10mm | Magnification rate 14X, field of view14.3 | |
Magnification rate 120X, field of view2 | ||
Microscope Head | Binocular/Trinocular head, 45°inclined, 360°rotatable. Interpupllary distance: 54-76mm. Diopter adjustable on both tubes. | |
Objective | 0.7X-6X stereo zoom, Zoom Ratio: 8.6:1 | |

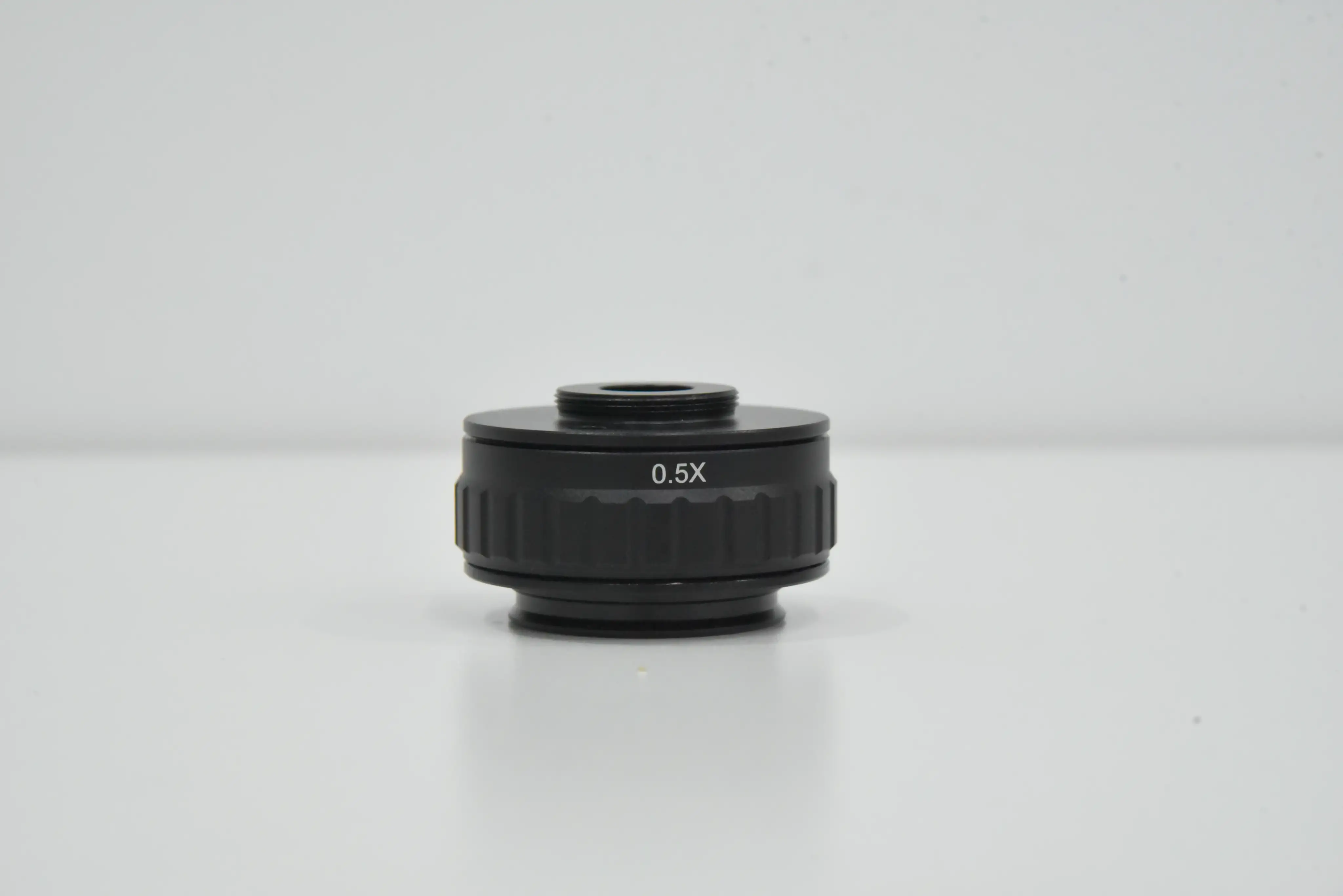

Auxiiary Objective | Auxiliary Objective: 0.5X, 0.3X, 0.7X, 2X | |
lumination | 5V3W up-down LED lumination/LED ring lamp, refer to page “External llumination | |
Camera Adapter | Phototube, C-mount for camera |
