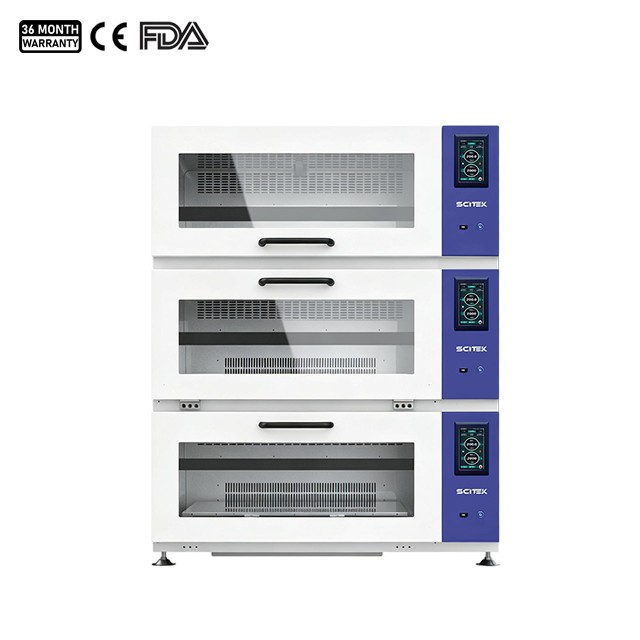

One layer, two layers and three layers can be freely stacked and combined. Each layer has independent temperature control and independent purchase, providing users with the maximum space with the smallest footprint. The third floor has a swing-up door, which makes it easier to load and unload medicine bottles and makes the operation safer.
The overall foaming technology of the insulation layer has good insulation effect, can effectively prevent high temperature and flame retardant, and the foaming agents are all environmentally friendly materials.
The surface of the shaker is sprayed with high-temperature electrostatic spraying, which is easy to clean, difficult to breed bacteria, and has good anti-corrosion and heat preservation effects.
There is a ventilation hole on the left side to facilitate temperature detection and oxygen supply.
The rocking plate can be freely pulled out to facilitate loading and unloading of medicine bottles.
The hollow tempered glass door makes it easy to observe the inside of the box from all angles at any time without opening the door.
The bottom is equipped with universal wheels, and each layer has lifting holes to facilitate transportation and transfer.
The inner tank of the shaker is made of mirror stainless steel and has an R-angle design, which is not conducive to the growth and attachment of bacteria, makes it easier to clean, and makes culture safer. The bottom of the inner cavity is waterproof and washable.
Various choices of clamps, and customization services for special sample bottle clamps, making every customer comfortable to use
Model | ICB-930SFTS |
---|---|
Oscillation Frequency | 0-300rpm |
Oscillation Frequency Accuracy | ±1rpm |
Oscillation Amplitude | Medium 26mm, Medium 50mm |
Temperature Adjustment Accuracy | 0.1℃ |
Temperature Uniformity | ±1℃ (at37℃) |
Temperature Control Range | 4-60℃ |
Timing Range | 0-999.9 hours |
Convection Mode | Forced convection |
Display Method | OLED touch screen |
Control Method | PID microcomputer intelligent control |
Multi-terminal Programming | Programmed intelligent control |
Maximum Capacity | Single layer: 250ml×60, 500mlx40 1000mlx28, 2000ml×15 |
Rocking Board Size | Single layer: 925mm×530mm |
External Size | Single layer: 1000×680×350mm Three layers: 1450×950×1800mm |
Weight | Single layer 230KG three layers 680KG |
Power Supply | AC220V,50-60Hz |
Power | 1500W |
Stackable shaking incubator features a data recording capability, capturing information at one-minute intervals and storing nearly 90 days' worth of data. The system automatically generates data curves, facilitating the observation of operational conditions and analysis of parameters such as temperature, rotation speed, humidity, light intensity, and CO2 concentration. Exporting and saving data recordings and curves can be easily accomplished via USB.
To ensure data integrity, the system includes a power-off recovery function, preventing loss during power outages and crashes. It also incorporates automatic alarms for over-temperature and abnormalities, promptly addressing unexpected situations, with accessible alarm information for review.
Enhancing user safety and convenience, a humanized slow-stop function activates upon opening the lid, minimizing shearing force on the culture.
Scheduled operations for lighting and ultraviolet sterilization are easily controlled, providing added convenience. The use of mirror stainless steel ensures sterilization without any inaccessible corners.
The stackable shaking incubator's system is equipped with a standard one-piece three-claw plastic clamp, known for its ease of operation, aesthetic appeal, and extended service life.
