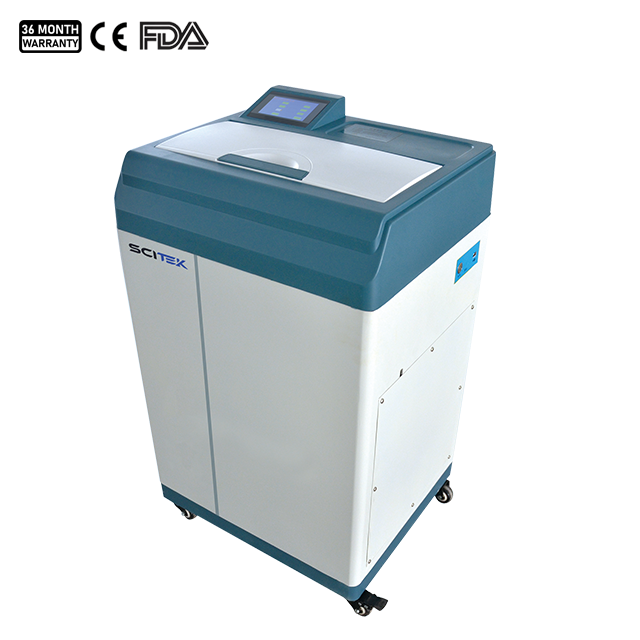

Blood Thawing Machine Feature:
BTM-I series is mainly used for constant temperature heating and thawing of plasma, platelets and blood cells. It is also suitable for constant temperature heating of medical frozen products, blood transfusion bottles(bags), anesthetics and drugs.
Fast, safe and reliable heating system
Strict temperature control system
Complete recording of information and traceability of quality control data
With upper drainage function, no floor drain is needed in the studio
Automatic cleaning function
The defrost barrier can be adjusted freely
Disinfection and sterilization system (optional)
Blood Thawing Machine Specification:

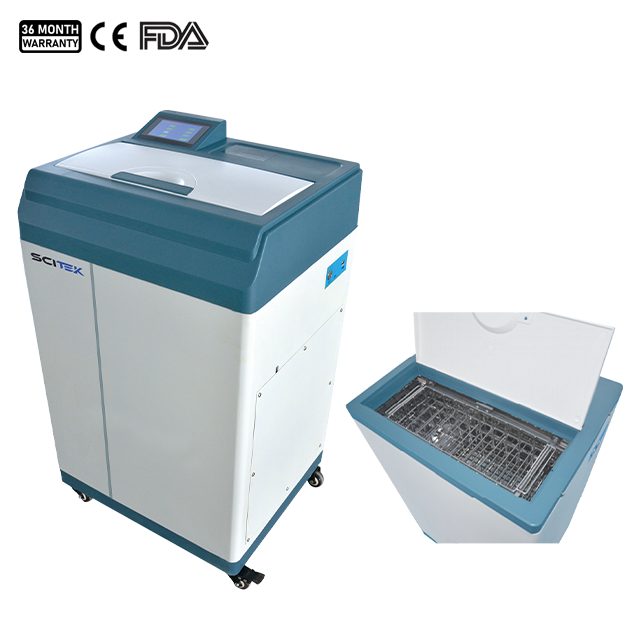

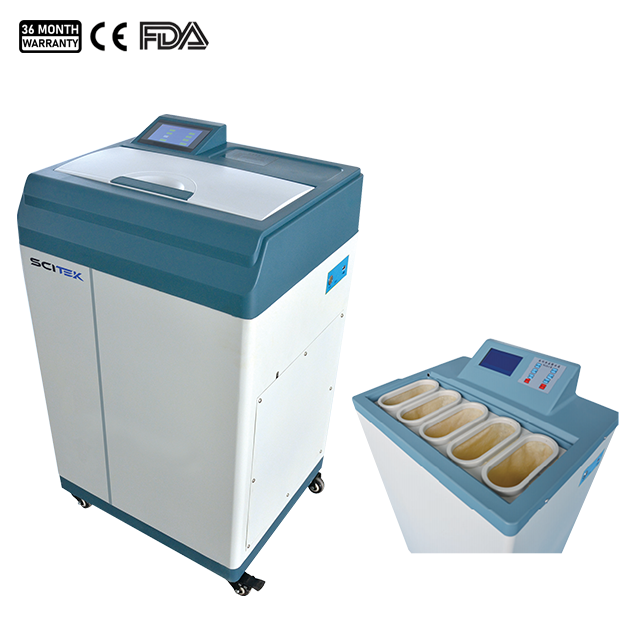

| Model | BTM-IW | BTM-ID | BTM-IO |
Thawing Quantity
(Optimal/Maximum) | 10/15 | 5/10 | 10/15 |
| Temperature Control Range | RT–45 ℃ (Thawing temperature must not exceed 45°C, exposure to higher temperatures will cause irreversible denaturation of plasma proteins) |
| Temperature Control Accuracy | ±0.5 ℃ |
| Water Storage Capacity | 35±5% kg |
| Thawing Time | 10–15 min | 20–30 min | 10–15 min |
| Cycling Ability | 60 L/min |
| Oscillation Frequency | \ | \ | 60 cycles/min |
| Oscillation Amplitude and Mode | \ | \ | 50±5 mm, back and forth |
| Heating Consumption | 2200 W |
| Power Supply | AC 220/110 V, 50/60 Hz |
| Size(W×D×H) | 540×410×870 mm |
| Shipping Size (W×D×H) | 730×660×1130 mm |
| N.W./G.W. (kg) | 44/65 | 45/66 | 48/69 |

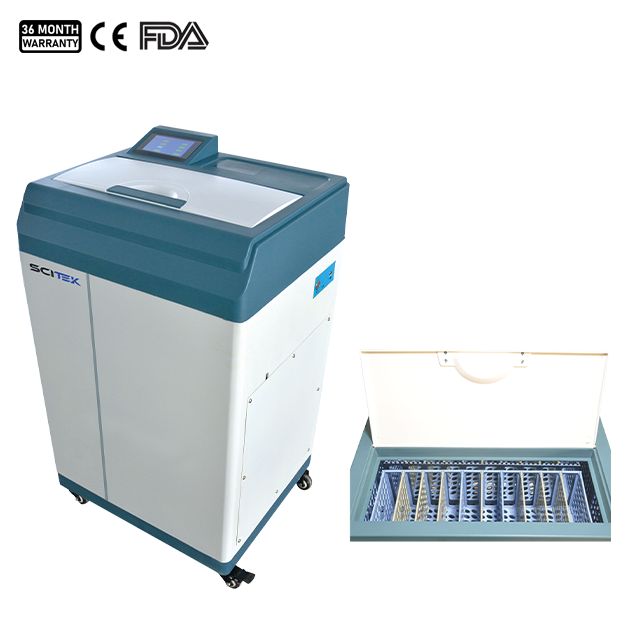

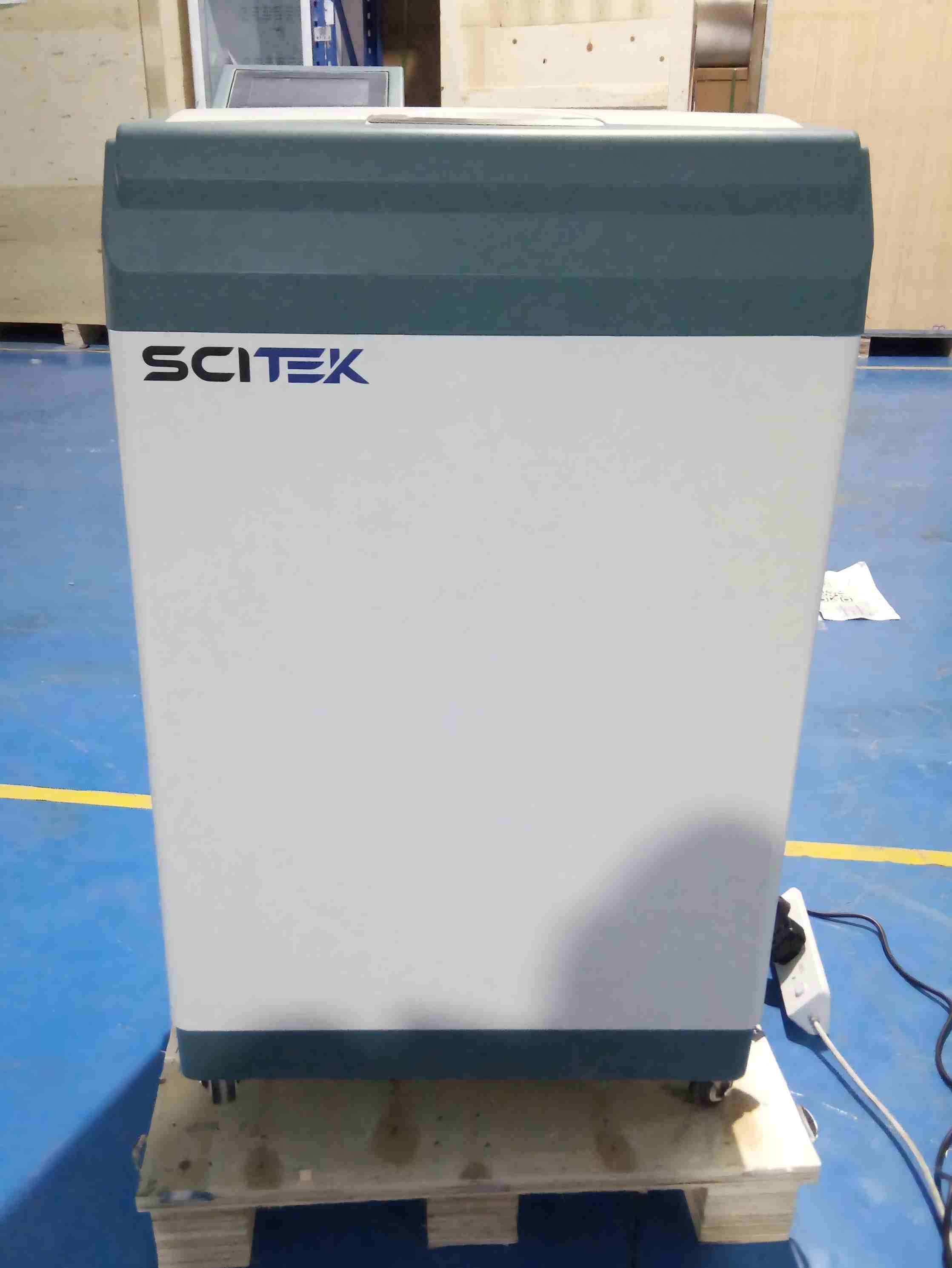

Details of Blood Thawing Machine(BTM-IW):

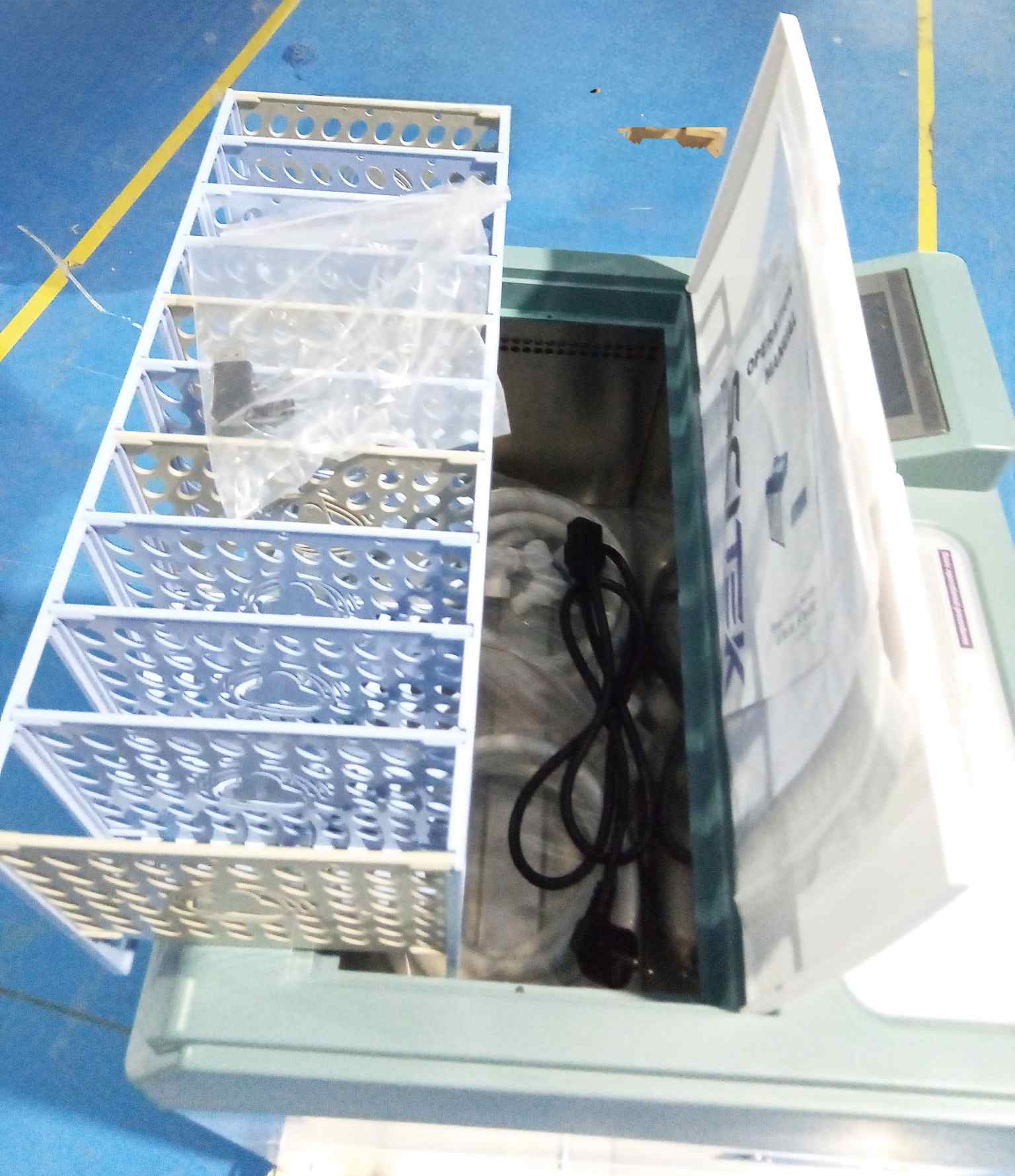

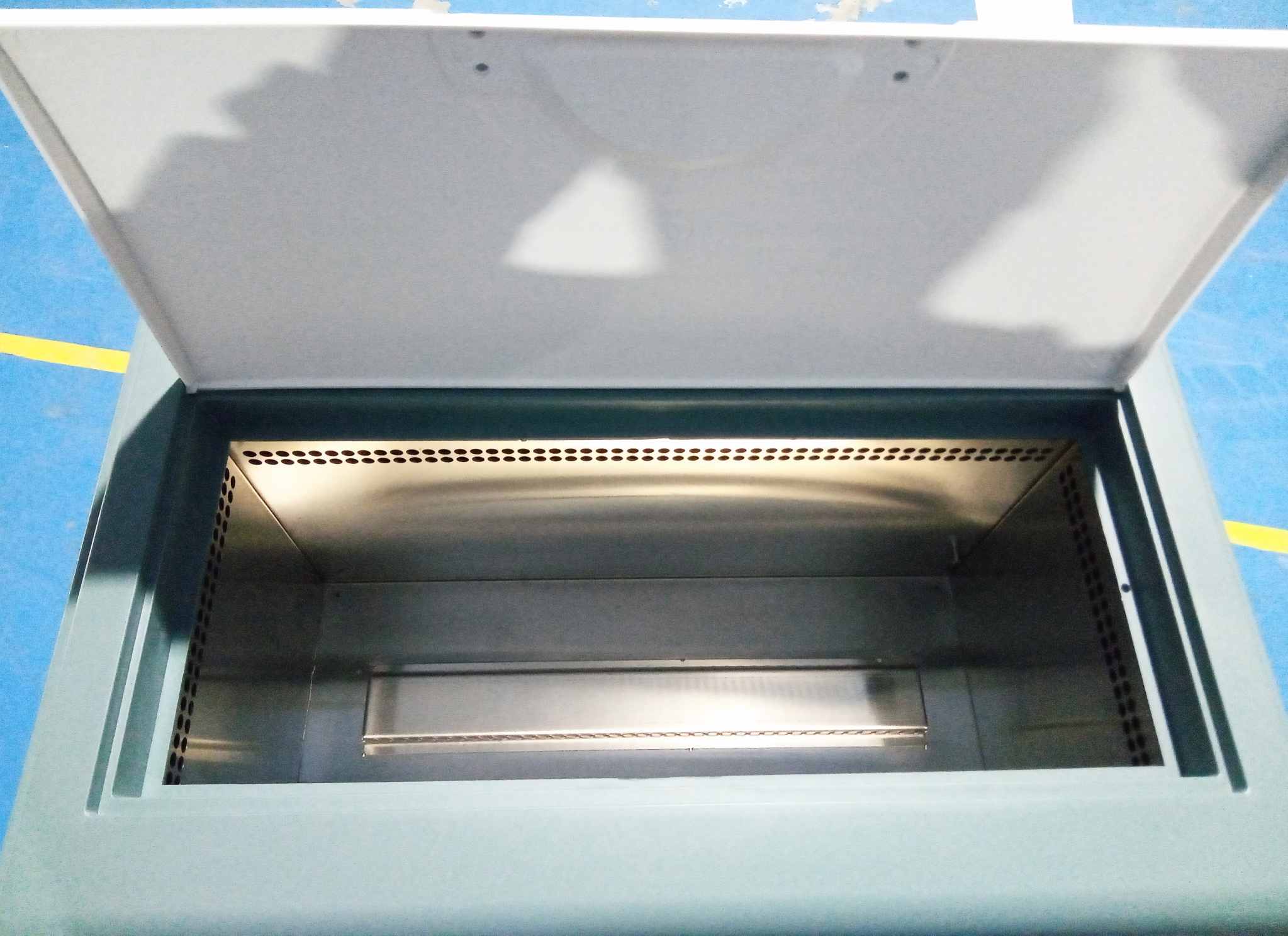

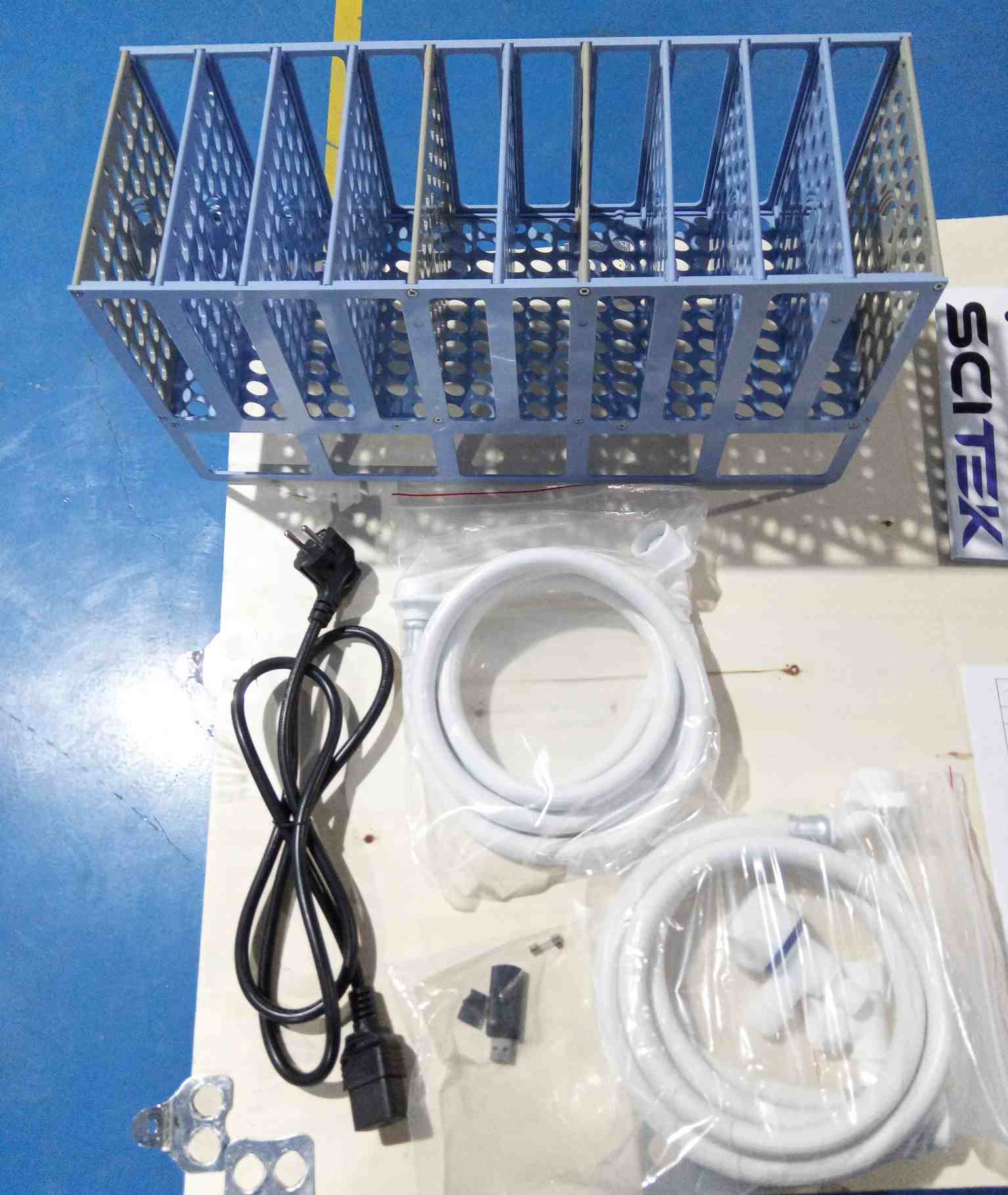

The internal water bath and removable basket provide an organized space for thawing blood bags, while the heating system and temperature display support controlled thawing conditions.

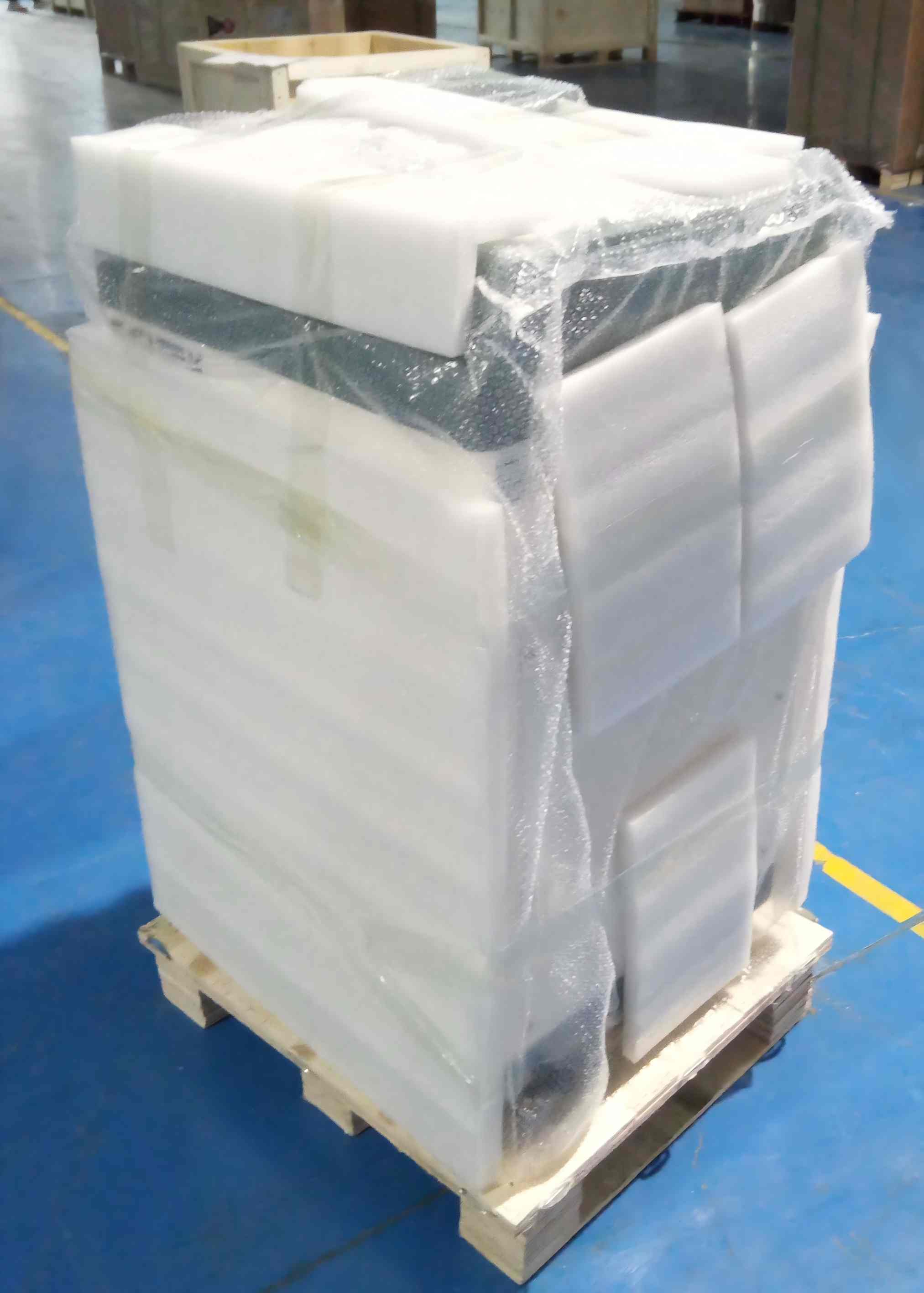

The machine is carefully packaged with protective materials to help prevent impact and damage during transportation, keeping the equipment secure from shipment to delivery.
