Platelet Preservation Box Specifications:
| Model | PPB-I | PPB-II | PPB-III | PPB-IV | PPB-V |
| Temperature Control method | Digital signal detection, Microprocessor control |
| Temperature Control Range | 22±2℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Environmental Temperature | 5~35℃ |
| Alarm Temperature | ＜20℃, >24℃, Abnormal shutdown and power outage alarm |
| Oscillation Frequency | 60±5 cycles/min |
| Oscillation Amplitude | 50mm |
| Working Mode | Continuously reciprocates left and right, oscillating horizontally |
| Storage Area and Number of Layers | 430x380x470mm; 5 layers | 430x380x480mm; 7 layers | 585x545x410mm; 10 layers | 590x450x1130mm; 20 layers | 1300x450x1130mm;
10 layers x 4 (Double Door) |
| Number of Blood Bags Stored (Optimal/ Maximum) | 5/10 bags | 7/14 bags | 20/40 bags | 60/100 bags | 120/200 bags |
| Heating Consumption | 200W | 400W |
| Refrigeration Consumption | 300W | 500W |
| Power Supply | AC220/110V, 50/60Hz |
| Size(W×D×H)(mm) | 540x595x970 | 690x680x1050 | 720x750x1700 | 1450x750x1700 |
| Shipping Size (W×D×H)(mm) | 650x710x1130 | 670x720x1150 | 820x800x1230 | 760x790x1930 | 1530x930x1780 |
| G.W. (kg) | 85 | 85 | 90 | 160 | 280 |
Platelet Preservation Box Feature:
1. Adopting IPS high-definition touch display
2. Multiple ways to monitor equipment temperature
3. With UV disinfection and lighting functions
4. High/low temperature alarm; Abnormal shutdown alarm; The oscillation device (motor) is faulty alarm; Automatic alarm if the equipment door is not closed tightly
5. New anti-slip coated drawer shelves
6. Microprocessor control
7. Air cooled R134a non- fluorocarbon refrigerant,
8. Silent casters with lock for easy movement
9. Equipped with leakage protector
10. Automatic frost and defrost function
11. Double-layer tempered glass door with good thermal insulation effect
Optional:
1. Wireless monitoring system
2. Scanner, scaning the plasma bag barcode
3. UPS power supply
4. Connecting to LIS system

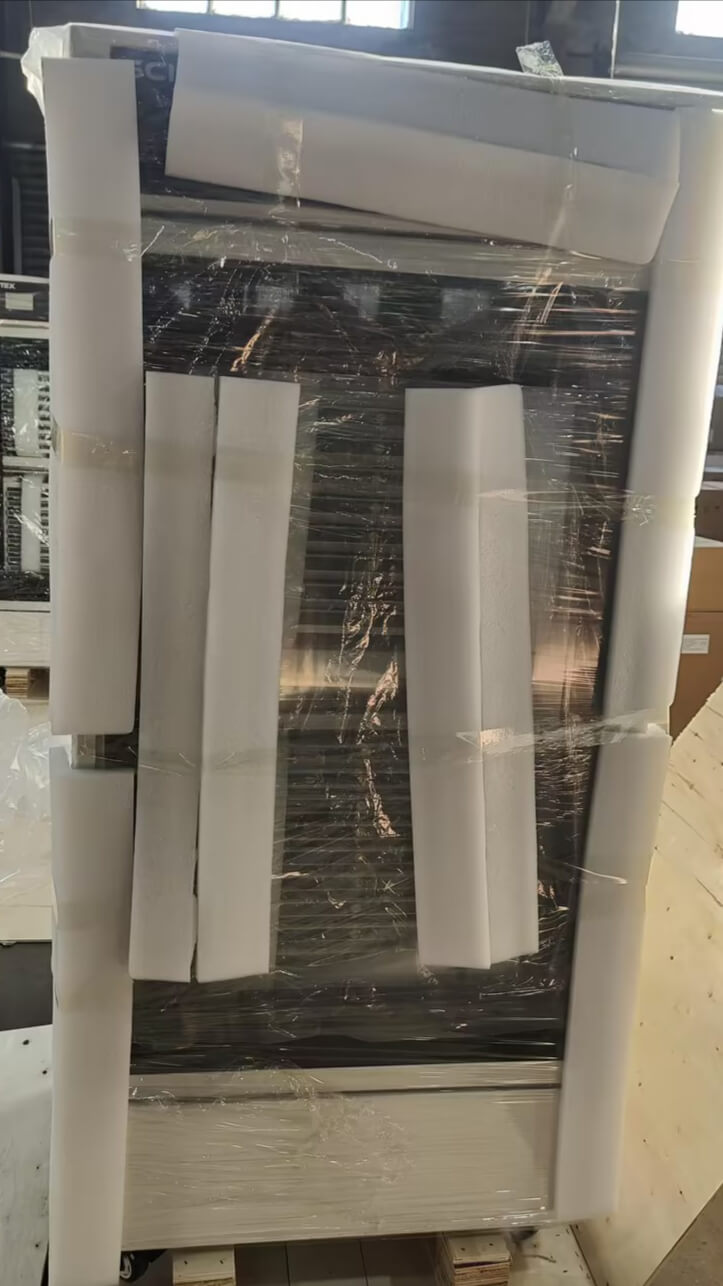

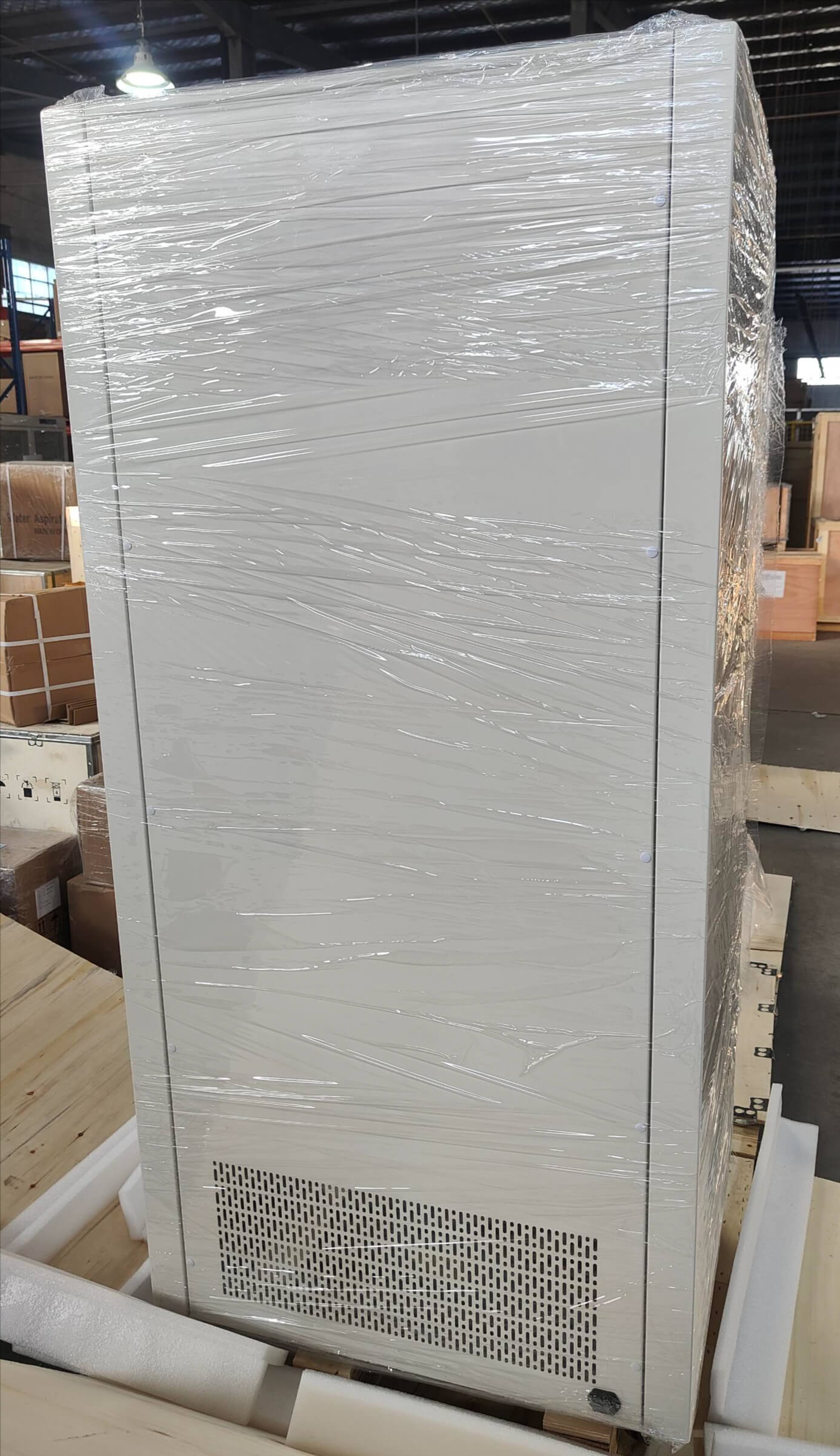

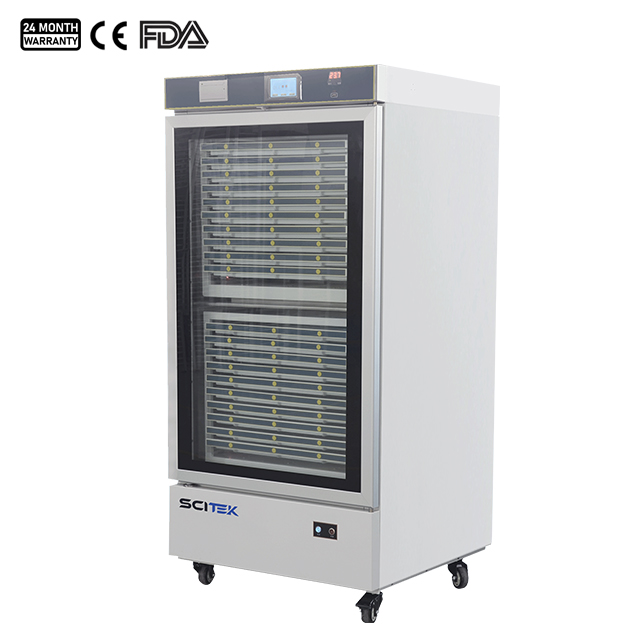

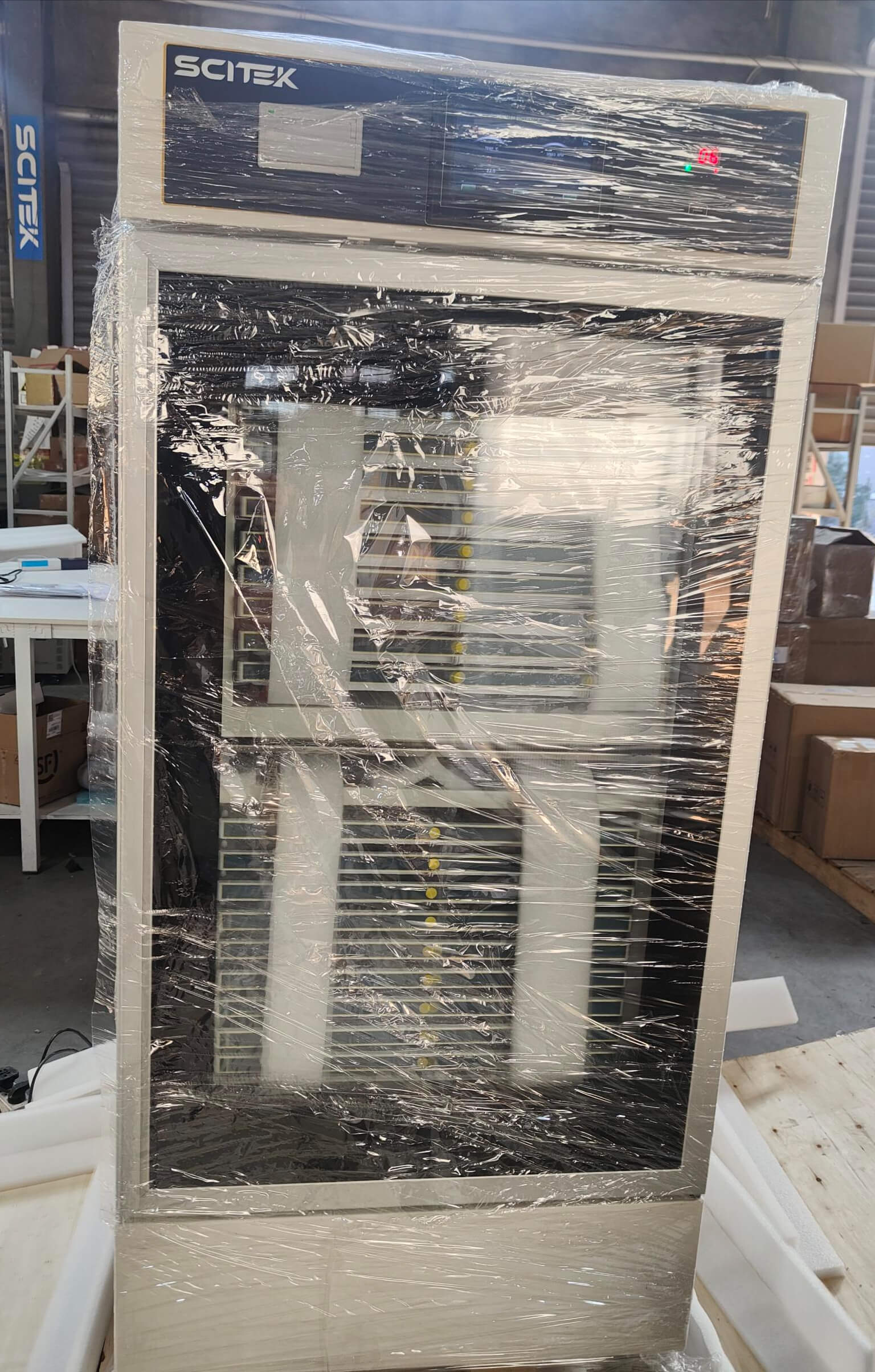

Details of Platelet Preservation Box (PPB-IV):
The platelet preservation box features a sleek, durable exterior designed for easy handling and portability. Its compact design allows for efficient storage while ensuring the integrity of the stored platelets during transport. The front-facing view highlights the user-friendly temperature control interface for monitoring and adjusting settings.

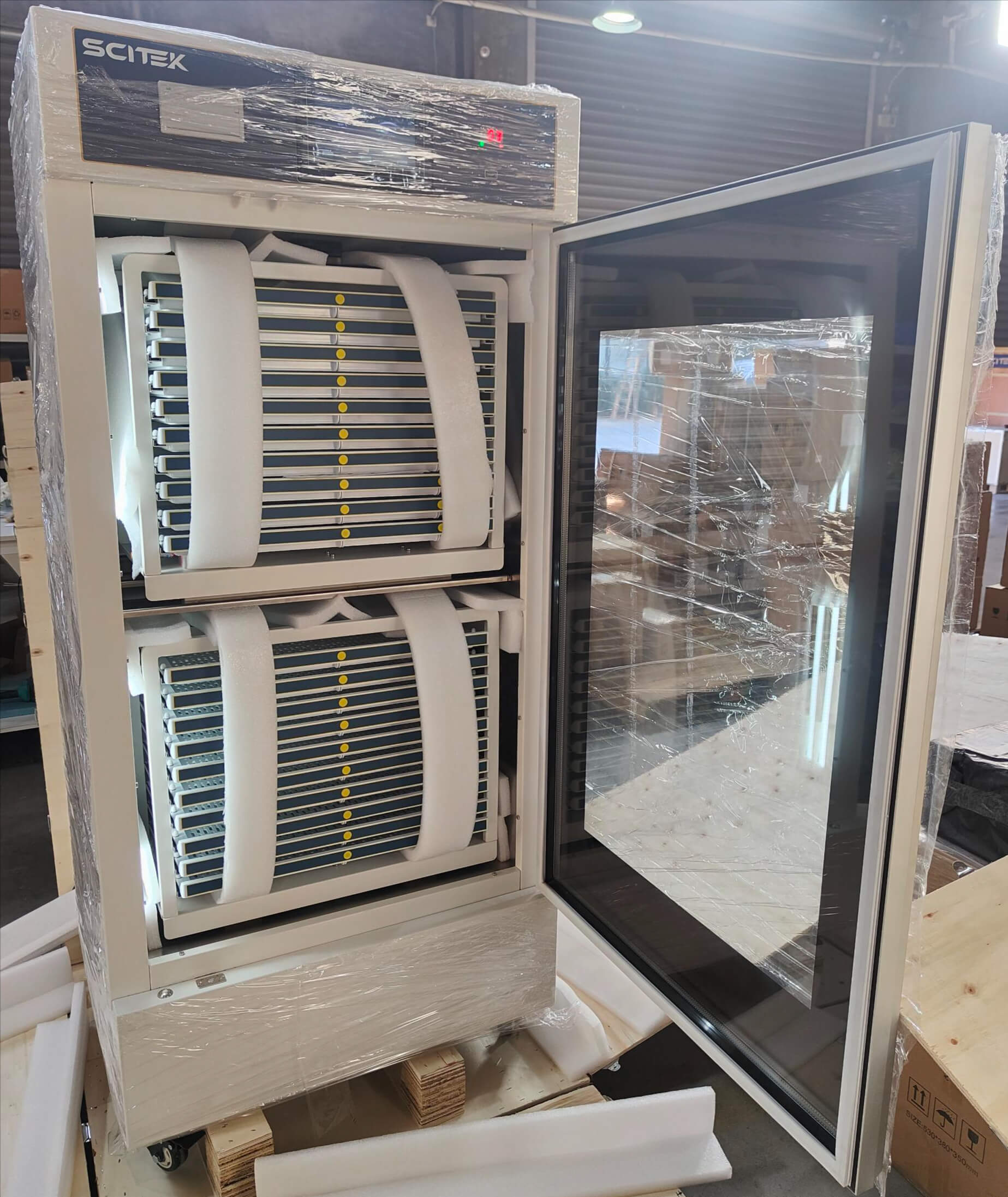

Inside, the platelet preservation box is equipped with temperature-regulated compartments to securely hold platelets. The interior is lined with advanced insulation material to maintain optimal preservation conditions. Clear sections allow easy placement and removal of platelet bags, ensuring convenient and safe handling in various medical settings.
