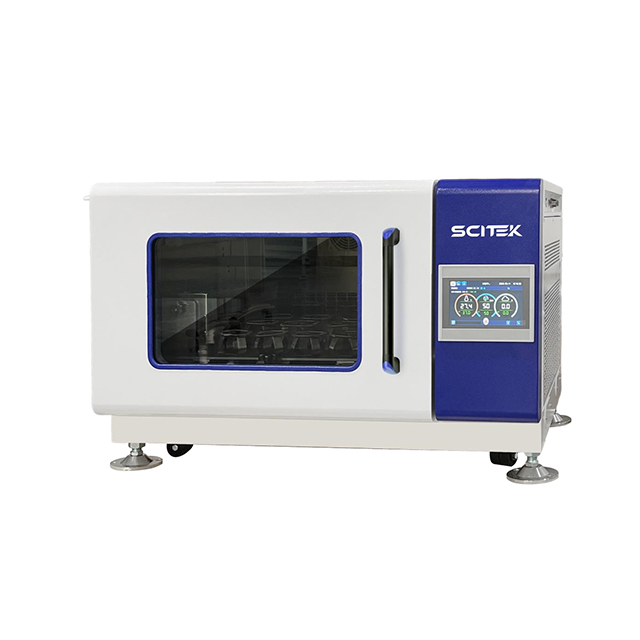

Stackable CO2 Incubator Shaker Application:
Stackable CO2 Incubator Shaker integrates dual core functions of culture and shaking, Supports shake culture of samples in a
stable CO2 environment. It features a stackable system design, allowing up to 3 units to be stacked, effectively improving laboratory space utilization. Equipped with a large-capacity inner cavity and a pull-out tray, compatible with various sizes of culture containers, empowering the transformation of scientific research results and upgrading production efficiency.
Primarily used for experiments as follow:
Cell Culture: Suspension/adherent culture of mammalian cells, stem cells, and primary cells.
Biopharmaceuticals: Fermentation and scale-up production of antibodies, recombinant proteins, and vaccines.
Microbial Fermentation: Culture and expression optimization of E. coli, yeast, and fungi.
Research and QC: Molecular biology experiments, drug screening, stability testing, and quality control.
High-throughput Processes: Parallel experiments, condition optimization, and simultaneous multi-batch culture, significantly improving R&D efficiency.
Stackable CO2 Incubator Shaker Feature:
Heat-free waterproof fan: ensures uniform temperature field, CO2 concentration and humidity, saves energy and widens the incubation temperature range. Simple push-button operation panel with LCD display for intuitive and easy operation.
Supports single-layer tabletop/floor use, stackable up to 3 layers with independent temperature and speed control, expansion requires no additional floor space.
Precision bearing transmission ensures low-noise and stable operation, multi-layer stacking ensures high-speed operation without resonance or abnormal vibration.
Thickened brushed chrome-plated aluminum alloy rocker plate is lightweight, sturdy, and easy to clean, push-pull structure for easy loading/unloading of culture containers.
Double-layer safety glass structure provides excellent heat insulation and high-strength safety protection.
Standard UV sterilization system allows for periodic disinfection of the cavity, maintaining a sterile and clean internal culture environ-ment and preventing cross-contamination.
Brushed stainless steel with rounded, seamless inner cavity is waterproof, corrosion-resistant, and easy to wipe clean.
Externally isolated electrical and drive components withstand high-temperature and high-humidity culture environments; broken bottles are easy to clean without residual contamination.
Multiple intelligent safety protections: PID constant temperature control prevents temperature overshoot; automatic stop upon door opening and soft start upon door closing ensures safer start-stop; automatic recovery after power failure memory; audible and visual alarms for abnormal parameters.
Stackable CO2 Incubator Shaker Specification:
Model | ICB-C160ST | ICB-C315ST |
|---|
Capacity (L) | 160 | 315 |
Display | 7.0 inch LED touch operation screen |
Shaking Motion | Orbital |
Rotation Speed | 2–300 rpm depending on load and stacking |
Speed Control Accuracy | 1 rpm |
Shaking Amplitude | 50 mm |
Temp.Control Mode | PID control mode |
Temp.Control Range | 4–60 °C |
Temp.Display Resolution | 0.1 °C |
Temp.Distribution | ±0.3 °C at 37 °C |
CO₂ Sensor | IR |
CO₂ Control Range | 0–20% |
CO₂ Display Resolution | 0.10% |
Timer | 0–999.9 h |
Illumination | FI tube, 30 W |
Max. Loading (kg) | 35 | 50 |
Platform Size (mm) | 590×465 | 520×880 |
Max. Capacity | 35×250 mL or 24×500 mL or 15×1000 mL or 8×2000 mL | 60×250 mL or 40×500 mL or 24×1000 mL or 15×2000 mL |
Maximum Expansion | Stackable up to 3 units |
Optional Function | Sliding black window. Door heating function |
Historical Data Storage | 800,000 |
Power Supply | 100–240 V, 50/60 Hz |
Consumption | 1300 W |
Internal Size (W×D×H)(mm) | 720×632×475 | 1050×730×475 |
External Size (W×D×H)(mm) | 1000×725×620 | 1330×820×620 |
Shipping Size (W×D×H)(mm) | 1150×860×755 | 1520×970×755 |
N.W/G.W. (kg) | 156/183 | 223/247 |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
