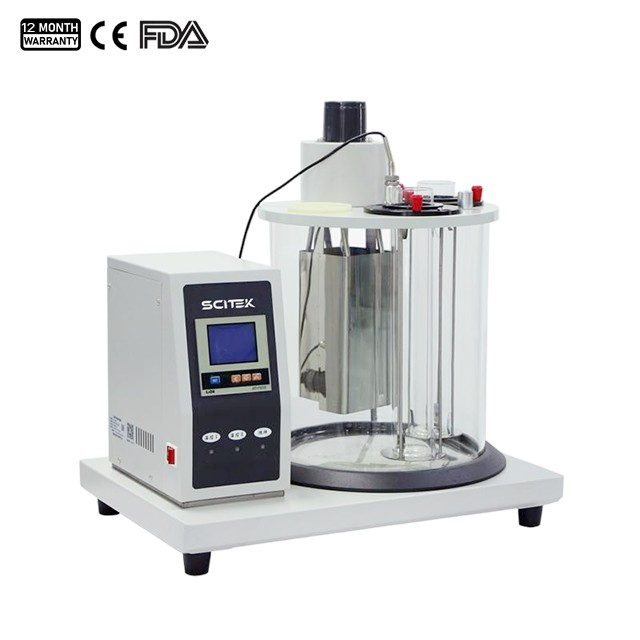

Petroleum Products Density Tester

Model : PPD-1884

Capacity of Cylinder : 500 mL
Temperature Accuracy : ±0.2 ℃
Temperature Sensor : Pt100
Temperature Range : (Ambient +5) to 100 ℃
Working Environment : Temperature: 15-35 ℃

It is used to determine the density of crude petroleum and liquid petroleum.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Advantage:

This instrument is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It’s structure is simple and compact. Easy to operate.
It adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2℃.
It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.

Application:

This instrument is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products — Laboratory determination of density — Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.

Specification:

Model	PPD-1884
Dimension of Constant Temperature Bath	Ф300×340 mm
Capacity of Cylinder	500 mL
Temperature Controller	Range: (Ambient +5) to 100 ℃
	Accuracy: ±0.2 ℃
	Sensor: Pt100
Working Environment	Temperature: 15-35 ℃
Relative Humidity	≤ 85%
Power Supply	AC (220±10％)V, 50 Hz
Total Power Consumption	1800 W
Dimension	560×380×580 mm
N.W.	18 kg
Packing Size	690×700×765 mm
‌G.W.	42.5 kg

Density:

Test Range (g/mL)	Scale value (g/mL)	Standard temp. (℃)	Length (mm)
0.600-0.650	0.0005	20	300±10
0.650-0.700	0.0005	20	300±10
0.700-0.750	0.0005	20	300±10
0.750-0.800	0.0005	20	300±10
0.800-0.850	0.0005	20	300±10
0.850-0.900	0.0005	20	300±10
0.900-0.950	0.0005	20	300±10
0.950-1.000	0.0005	20	300±10
1.000-1.050	0.0005	20	300±10
1.050-1.100	0.0005	20	300±10

Wireless Glove Integrity Tester

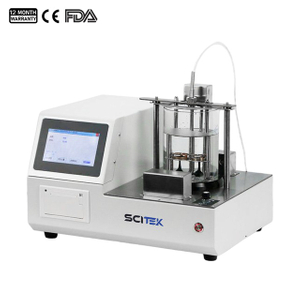

Automatic Softening Point Tester

Saybolt Viscosity Tester

Automatic Penetrometer

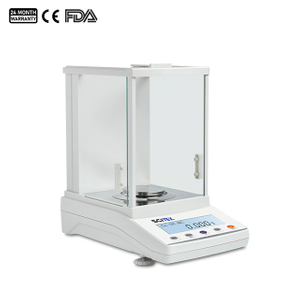

Electronic Balance
