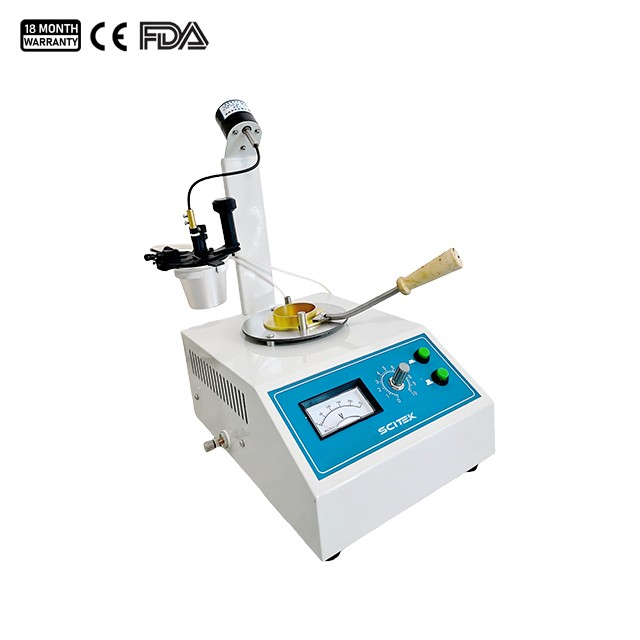

Pensky-Martens Closed Cup Tester Application:
Pensky-Martens closed-cup flash point tester designed for determining the flash point of fuel oils, lubricating oils, solid suspensions, liquids that may form a surface film under test conditions, and other liquids.
Pensky-Martens Closed Cup Tester Feature:
Standard Compliance: ASTM D93, ISO 2719:2016, EN ISO 2719, IP 34, JIS K 2265-3.
Manual temperature control, heating rate is regulated by a solid-state voltage regulator and indicated by a voltmeter.
Ribbon heater offers uniform heating and temperature rise, a long service life, and a compact structure.
Lid features a standard flame comparison bead, facilitating intuitive comparison and adjustment of the flame size.
Pensky-Martens Closed Cup Tester Specification:
Model | CPT-1104 |
Temperature Range | From above ambient temperature to 370 °C |
Stick-Type Mercury Thermometers | -5 to 110 ℃, 0.5 ℃ division |
20 to 150 ℃, 1.0 ℃ division |
90 to 370 ℃, 2 ℃ division |
Sample Temperature | Manual reading |
Temperature Rate Control Mode | Manual adjustment |
Heating Element | 600 W Electric Heating Wire |
Heating Power Adjustment Range | 0–600W, continuously adjustable |
Stirring Drive Mode | Mechanical transmission stirring |
Stirring Speed Range | 90–120 r/min |
Furnace Body Material | Silicon Carbide (SiC) |
Ignition Gas Supply | Pipeline Coal Gas / Liquefied Petroleum Gas (LPG) |
Igniter Orifice Diameter | 0.7–0.8 mm |
Cup Inner Diameter | 50.7–50.8 mm |
Cup Depth | 55.7–56.0 mm |
Sample Level Graduation Line | 33.9–34.3 mm |
Sample Capacity | Approx.70 mL |
Chamber Material | Silicon carbide (SiC) |
Power Supply | AC 220±10%V, 50 Hz |
Consumption | ≤650 W |
External Size (W×D×H) | 300×240×350 mm |
Shipping Size (W×D×H) | 380×320×430 mm |
N.W./G.W. | 8/14 kg |
Operating Temp. and Humidity | 15– 35 ℃, ≤85% RH |
