Separate control circuits for different heating sections for precise temperature control and auxiliary heating elements for improved temperature uniformity
Supports gradient temperature setting for easy temperature optimization in a single run.
A high-definition touch screen facilitates one-click parameter setting and easy viewing of test results, improving the operating experience and reducing the risk of cross-contamination.
Supports custom editing and multi-file storage
Can use multiple consumables: Plain PCR tubes, 8-well PCR strips and 96-well PCR plates.
The thermal lid function automatically switches off if the module temperature falls below 30°C.
Thermal Cycler Specification:
Model
PCR-TCG
Sample Capacity
96×0.2mL PCR tube, 8×12 PCR plate or 96 well plate
Heating Temperature Range
0-105 ℃
Lid Temperature Range
30-115 ℃
Temperature Display Accuracy
±0.1 ℃
Temperature Control Accuracy
±0.1 ℃
Temperature Uniformity (at 55℃)
±0.2 ℃
Max. Heating/Cooling Rate
5 ℃/Sec
Gradient Temperature Setting Range
30-105 ℃
Gradient Range
1-42 ℃
Adapter Block Material
Aluminum
Display
7” LCD 800×480
Input
Touch panel
User Defined File System
Max. 30 segments 99 cycles max. 16 folder and 16 files each folder.
Power off Protection
Yes
Power Supply
AC100-120/200-240 V, 50/60 Hz
Size(W×D×H)
280×370×250 mm
Shipping Size(W×D×H)
610×440×450 mm
N.W./G.W.
11.6/15 kg
Details of Thermal Cycler:

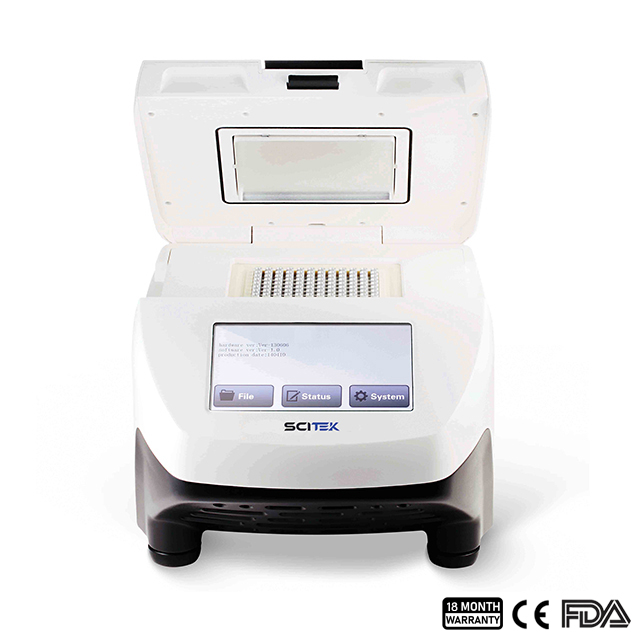

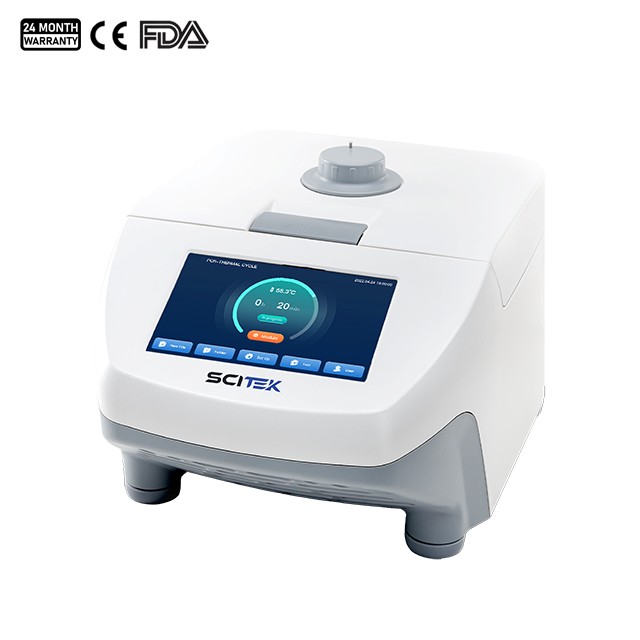

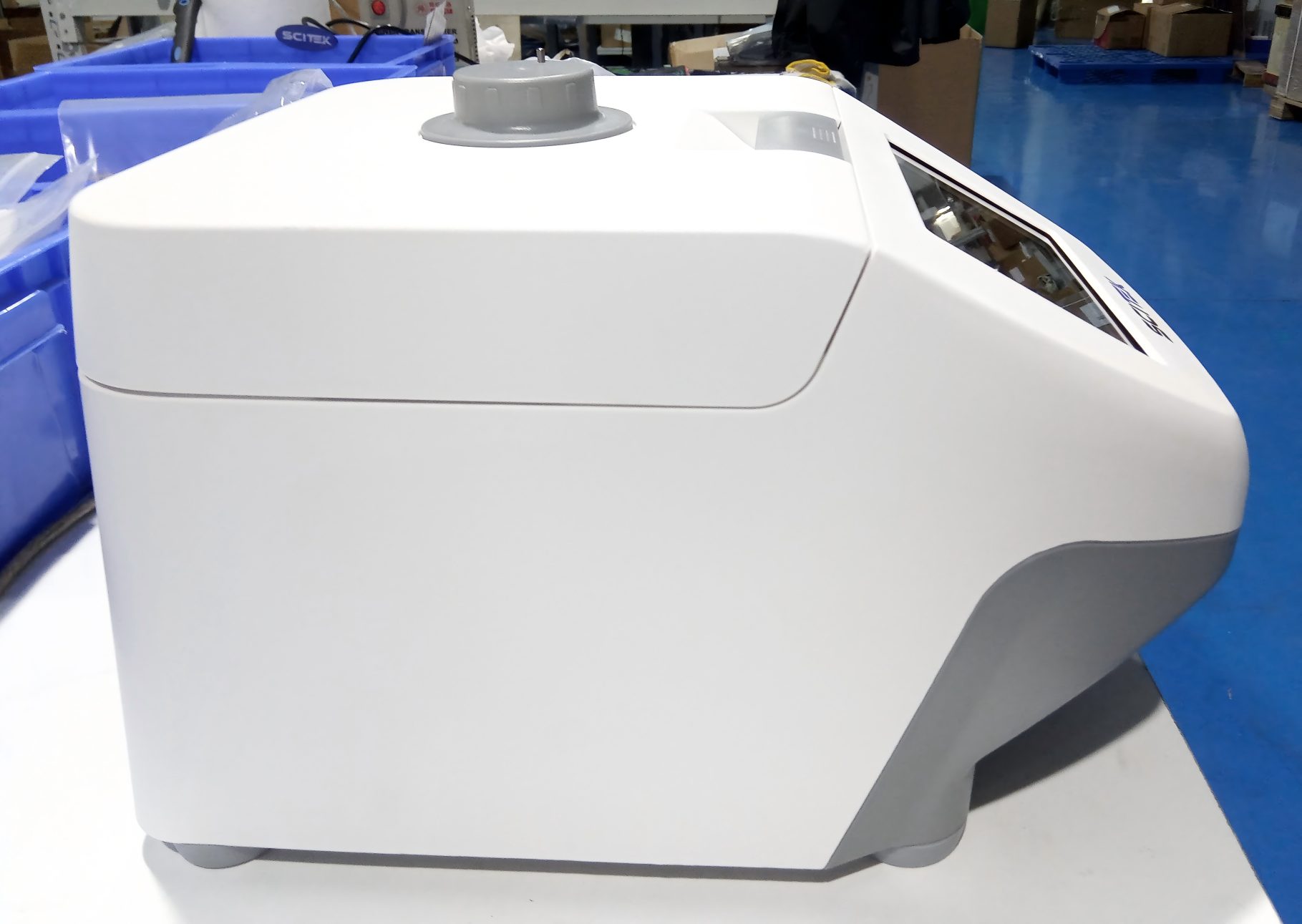

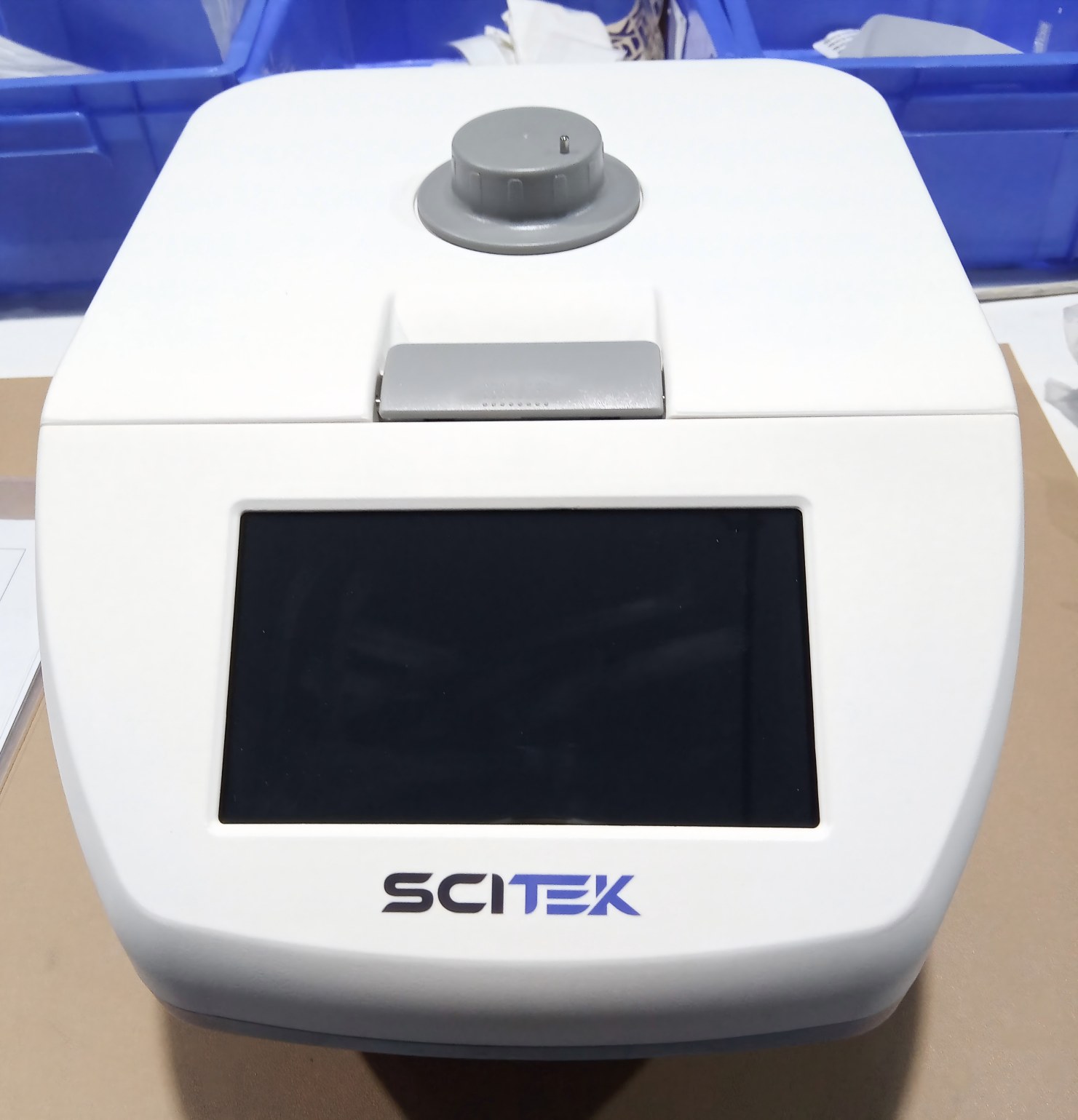

The overall view showcases the Thermal Cycler’s compact benchtop design, integrated control panel, and enclosed sample chamber. Its streamlined housing and practical layout make it well suited for routine molecular biology and PCR workflows.

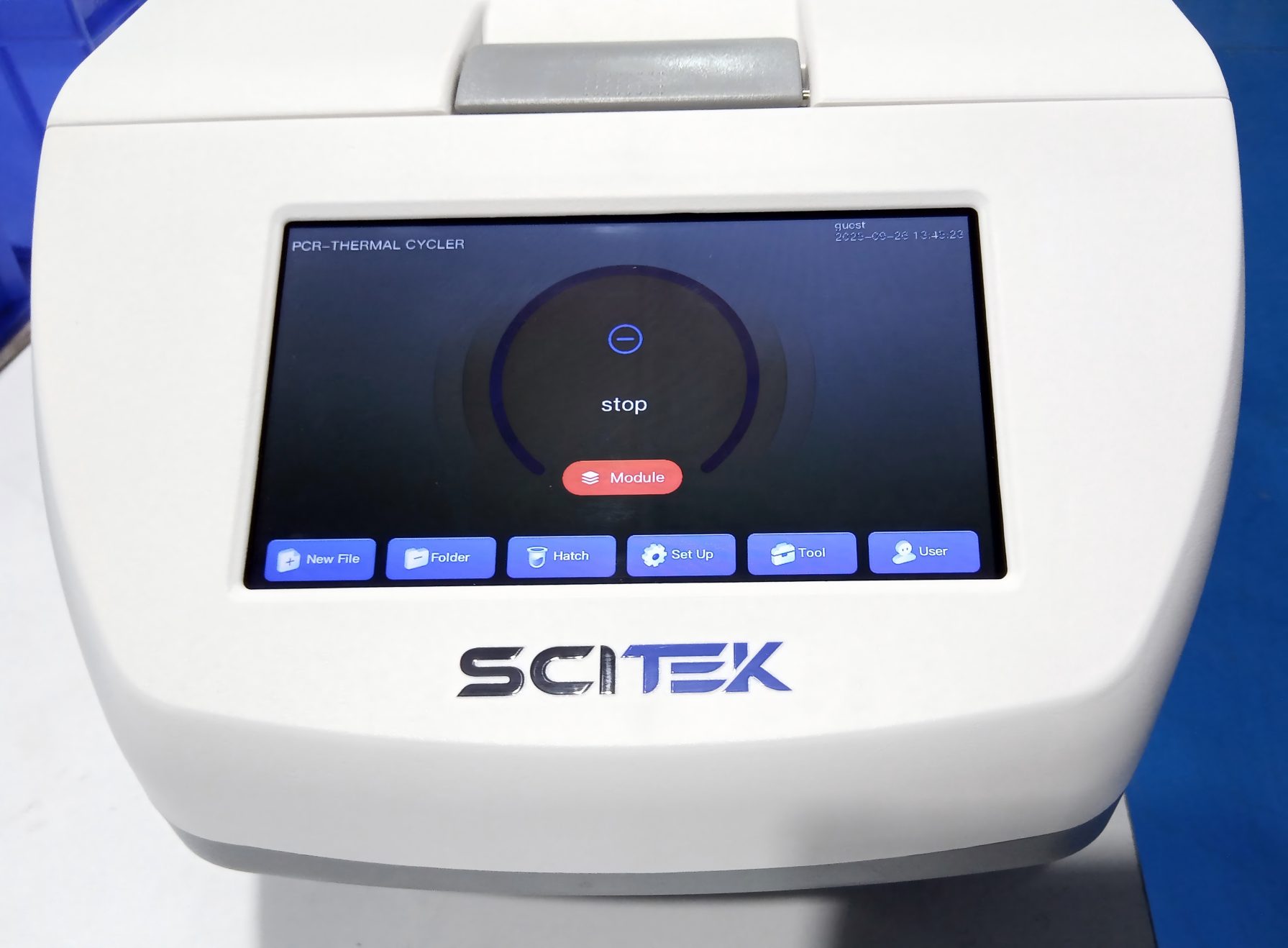

The built-in display provides a clear interface for setting temperature programs, adjusting cycling parameters, and monitoring the progress of each PCR run. The intuitive layout facilitates convenient operation and real-time status checking.

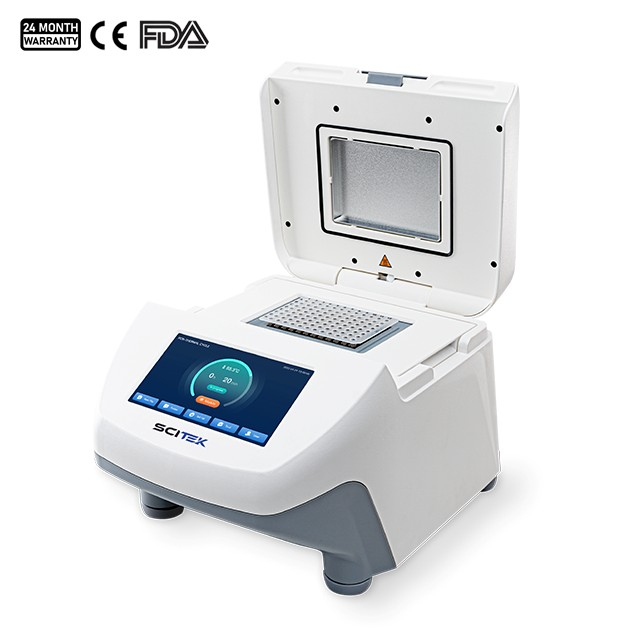

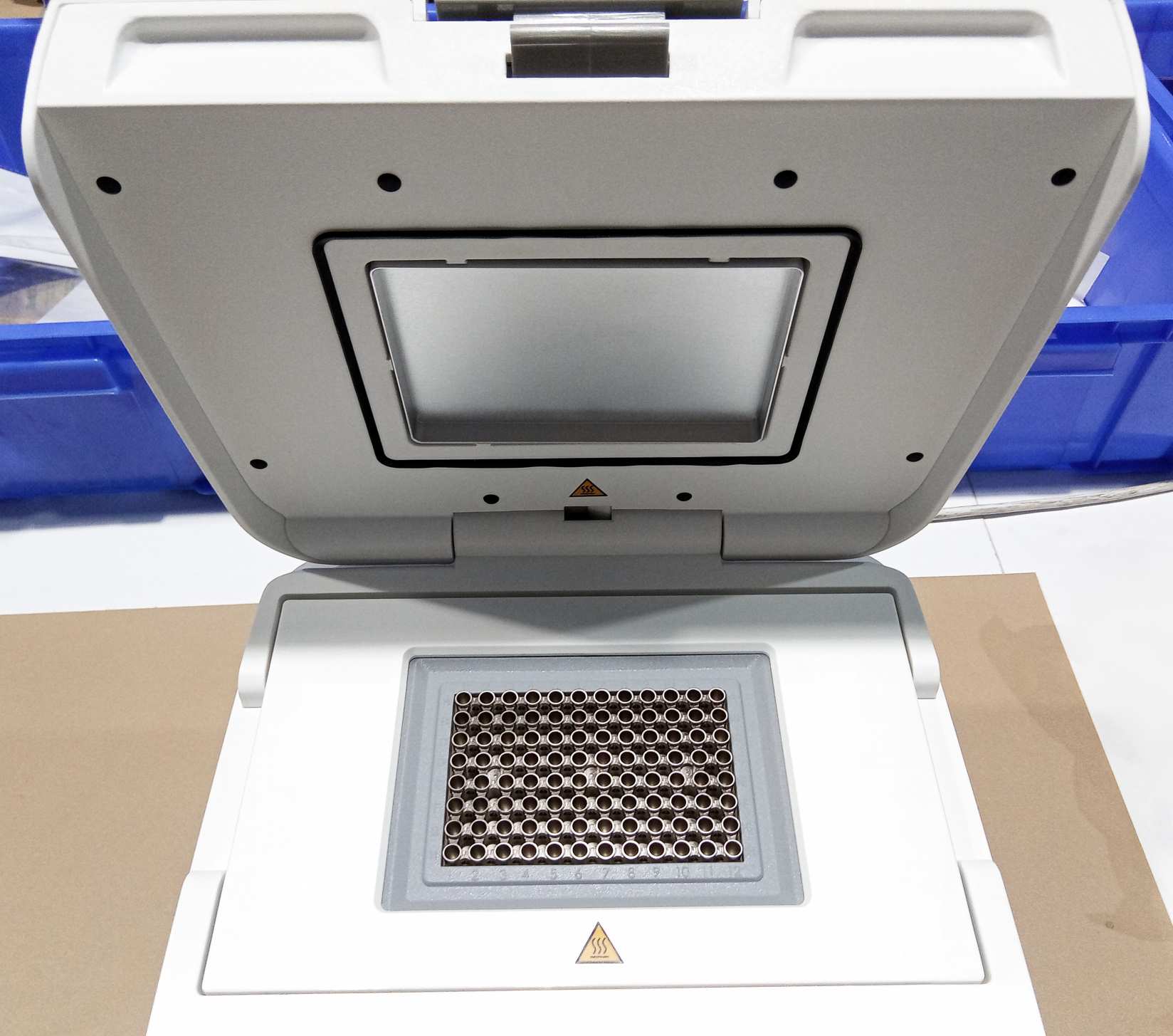

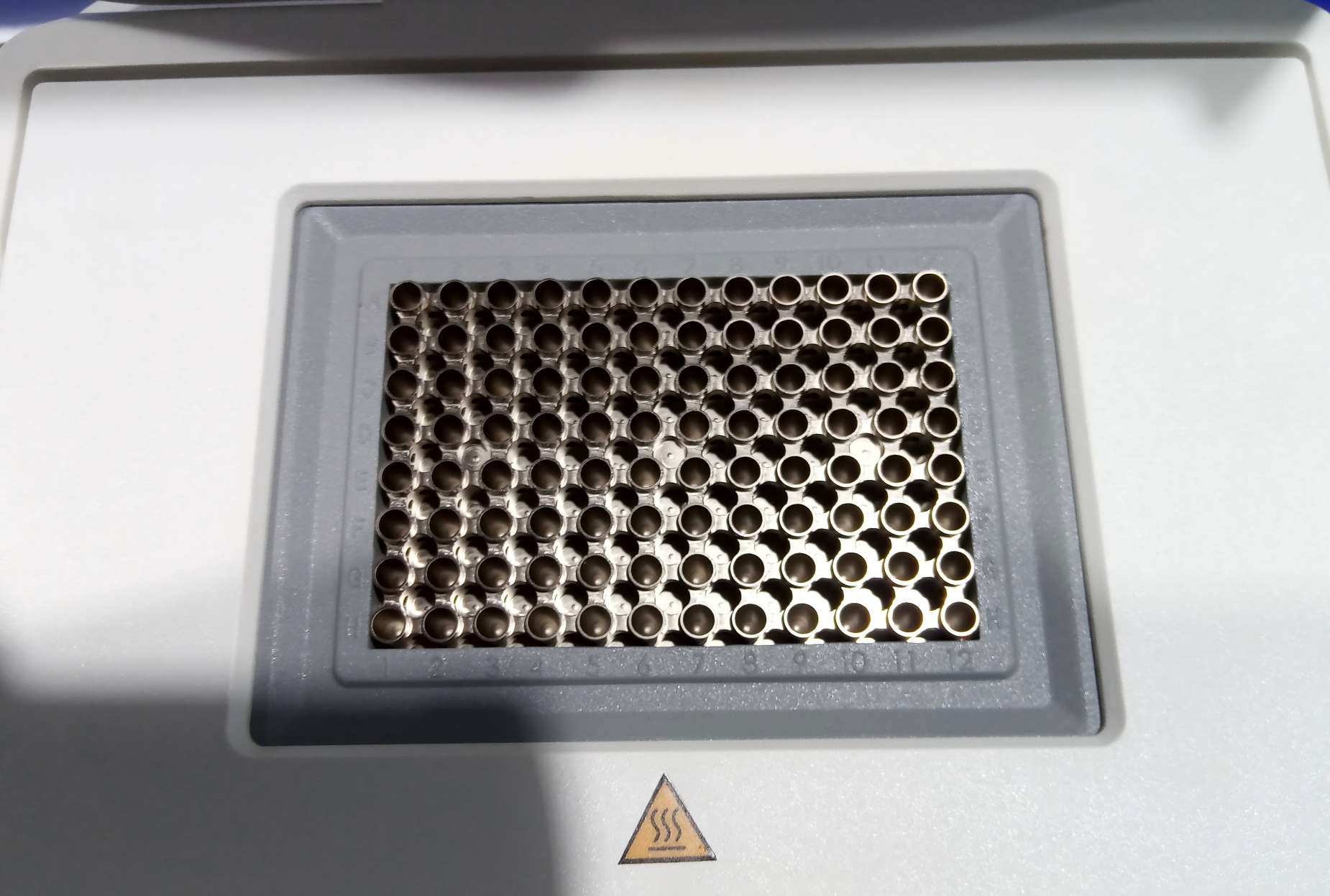

The sample block features a neatly arranged well structure for securely positioning PCR tubes or compatible plates. The precisely designed block supports consistent thermal contact and stable temperature control throughout the amplification process.

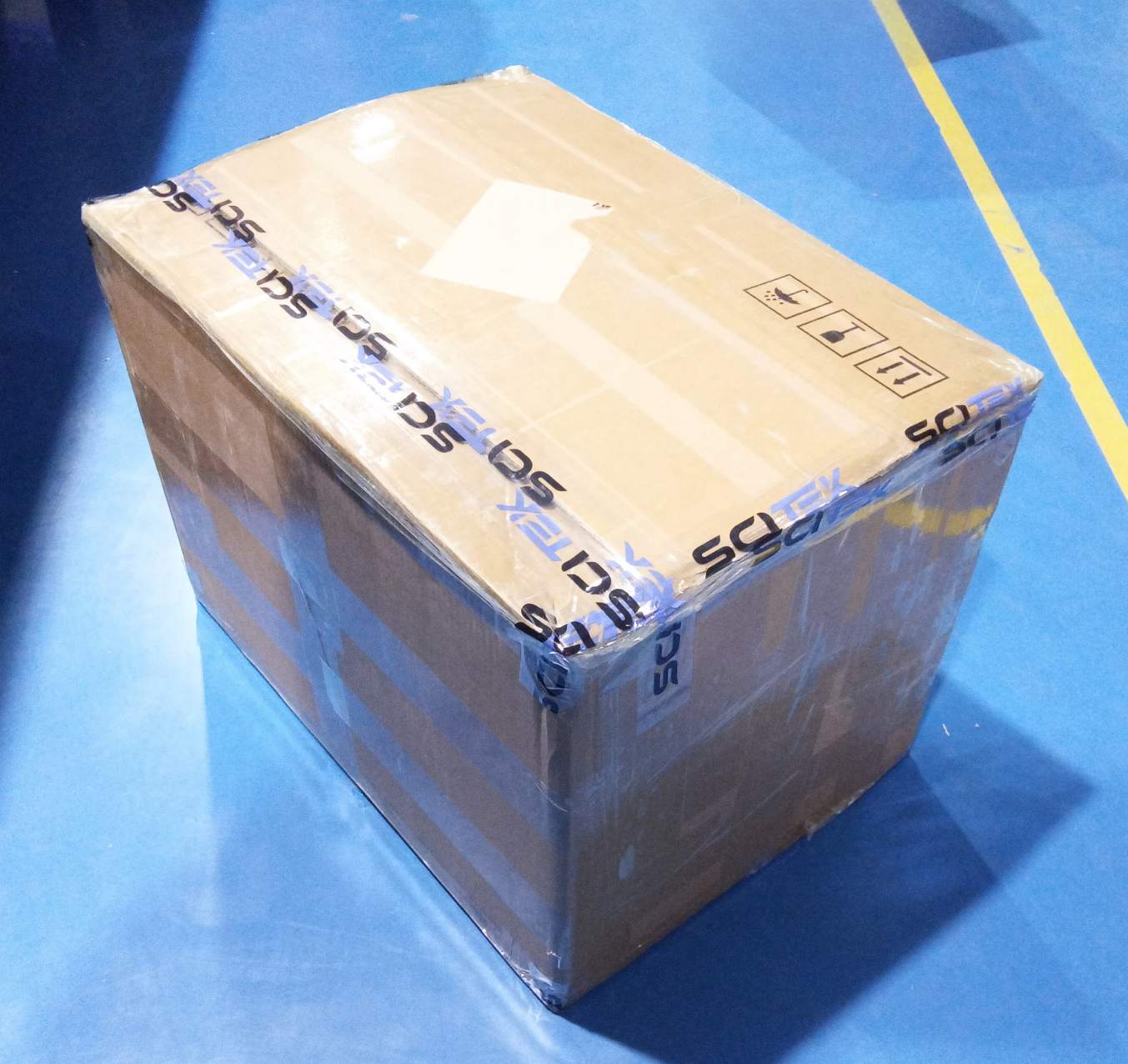

The thermal cycler is carefully arranged and securely packed with protective materials before shipment. The reinforced packaging helps protect the instrument and its accessories from impacts and movement during handling and long-distance transportation.
