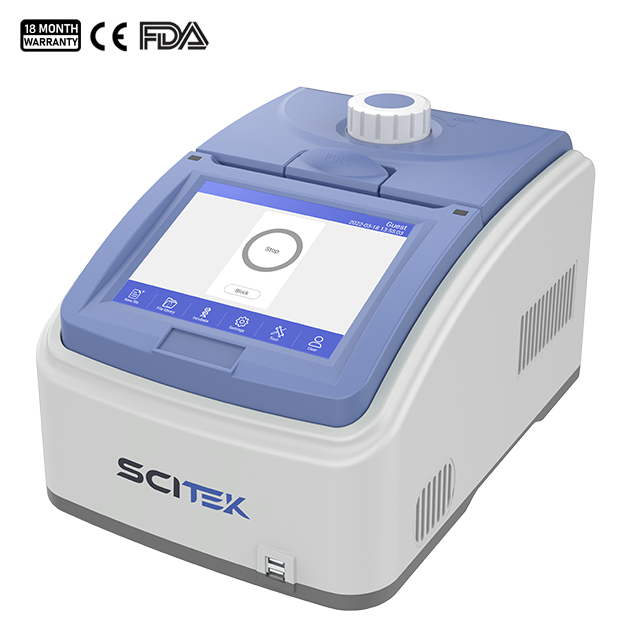

Manual Thermal Cycler

Model : PCR-TC96S

Sample Capacity : 96×0.2ml
MAX. Ramp Rate : 4.5℃/s
Temperature Control : Block/Tube
Size (W×D×H)(mm) : 390×270×255

Availability:
Quantity:

Thermal Cycler Specifications:

ModelPCR-TC96S
Capacity96×0.2ml
Temperature Range0-100℃
Heating Rate4.5℃/s
Cooling Rate4℃/s
Uniformity≤±0.2℃
Accuracy≤±0.1℃
Hot Lid Height AdjustableStep-less Adjustable
Number of Programs10000+(USB FLASH)
Max. No.of Step30
Max. No.of Cycle100
Time. Increment/Decrement1 Sec-600 Sec
Temp.Increment/Decrement0.1-10℃
LCD8 inch, 800×600 pels
CommunicationUSB2.0,LAN
Display Resolution0.1℃
Temperature ControlBlock/Tube
Ramping Rate Adjustable0.1-4.5℃
Gradient Temp. Range30-100℃
Gradient Spread1-30°C
Hot Lid Temperature30-110°C
Pause FunctionYes
Auto Data ProtectionYes
Hold at 4℃Forever
Touchdown FunctionYes
Long PCR FunctionYes
LanguageEnglish
Power SupplyAC100-240V, 50/60Hz
Power600W
Size(W×D×H)(mm)390×270×255
Shipping Size(W×D×H)(mm)570x440x440
N.W./G.W. (kg)8.5/15

Thermal Cycler Features:

The PCR-TC96S PCR thermal cycler displays the running program and remaining time in real time, allowing the file to be edited while running. Three circuits are formed to control three temperature zones, each equipped with six Peltier heating units known for their extended service life.

  1. Reinforced aluminum module with anodizing technology to maintain fast thermal conductivity and sufficient corrosion resistance

  2. Programmable lid temperatures and operating modes and adaptable to different tube heights to avoid melting and evaporation of the tubes

  3. Built-in 11 file templates for quick editing of required files and support storing 10,000 PCR files.

  4. Automatically restarts after power failure and continues the process that was not completed before the power failure.

  5. GLP report records every step, providing accurate data support for analyzing experimental results, and the password protection function ensures data security.

  6. One computer can control multiple PCRs through a network connection.
