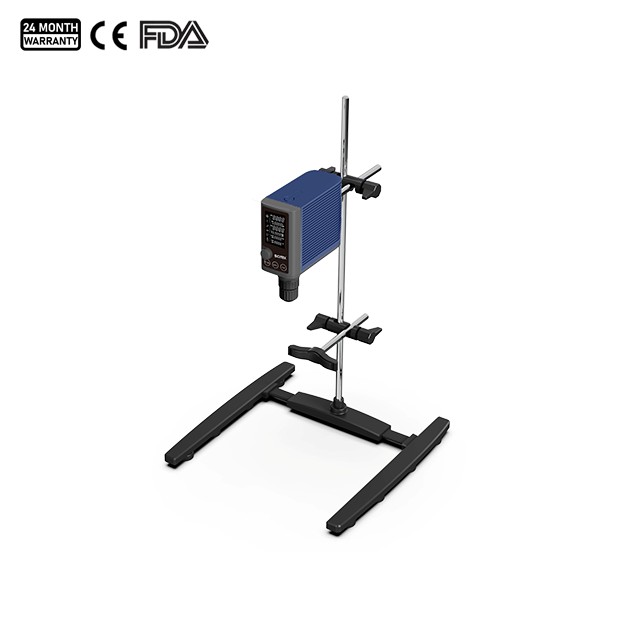

Used for stirring, mixing, homogenizing, and reacting high-viscosity liquids, suitable for experimental and research needs in university laboratories, research institutions, biopharmaceuticals, chemical new materials, cosmetics, and food and beverage fields.
Overhead Stirrer Feature:
Extended timer function, suitable for both short-duration experiments and long-term continuous stirring.
Interface provided for external temperature sensor connection for real-time temperature monitoring.
Constant and stable operation, automatically adjusting torque according to sample viscosity changes.
Large LCD screen displays rotation speed, torque, timing, and temperature simultaneously.
Supports forward and reverse rotation speed switching, top-mounted through-type paddle structure for convenient and time-saving container replacement.
Equipped with a safety lock to prevent accidental operation, malfunction and timing termination alerts via buzzer.
No external transformer required, ensuring safer use and adaptability to various laboratory power supply environments.
Supports dual calibration for torque and temperature, guaranteeing accurate and traceable experimental data.
Overhead Stirrer Specification:
Model | OS-T40P | OS-T60P | OS-T400P |
|---|
Max. Stirring Quantity (H2O)(L) | 30 | 50 | 100 |
Speed Range (rpm) | 50–2200 | 50–2200 | A gear: 10–400 |
B gear: 50–2000 |
Timer | 0min to 99h59min |
Max. Torque (N·cm) | 40 | 60 | 400 |
Max. Viscosity (mPa·s) | 10000 | 50000 | 150000 |
Chuck Clamp Range Diameter | 0.5–10 mm |
Motor Type | Brushless DC motor |
Speed Display | LCD |
Torque Display | LCD |
Forward and Reverse Rotation | Forward, reverse, intermittent mixing | / |
Temperature Display Accuracy | 0.1 ℃ |
External Temperature Sensor | 0–100 ℃ |
Overload Protection Display | LCD |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80%RH |
Interface | RS485, Type-C, USB |
Power Supply | 100–240 V, 50/60 Hz |
Motor Input/Output Power (W) | 60/50 | 120/100 | 180/170 |
Consumption (W) | 70 | 130 | 300 |
External Size(W×D×H)(mm) | 90×240×227 | 90×240×227 | 101×270×264 |
Shipping Size(W×D×H) | 490×350×260 mm (only host) |
N.W/G.W. | 3.5/8 kg |
