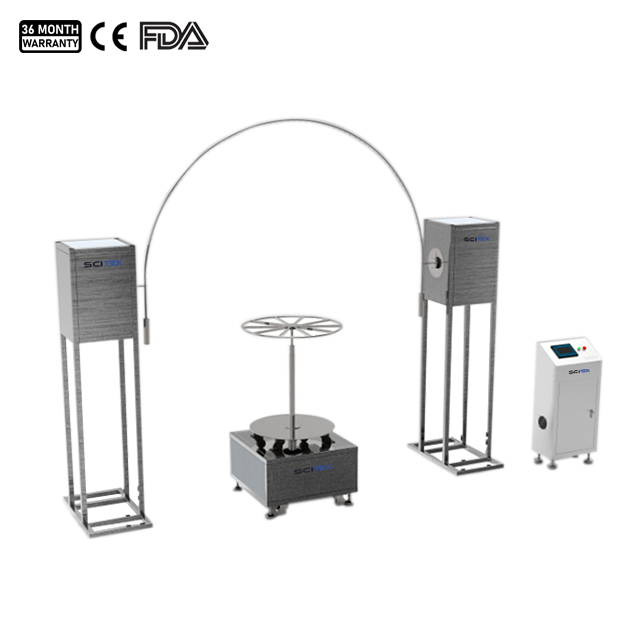

This open oendulum tube shower tester is applicable to the test of assessing whether the shell and seal can guarantee the good performance of the equipment and components in the rainy environment. The equipment adopts scientific design, so that the equipment can realistically simulate the water, splashing and other environments. With the comprehensive control system and the adoption of frequency conversion technology, the rotation angle of the rainfall test frame, the swing Angle of the water spray swing rod and the swing frequency of the water spray quantity can be automatically adjusted.
Open Pendulum Tube Shower Tester Specifications:
Model | PSTC-O34 |
---|
Flow Rate of Each Spouting Hole | 0.07L / M (adjustable) |
Jet Diameter (mm) | φ 0.4 |
Water Spray Pressure (Kpa) | 80-150 |
Time of Pendulum | Each swing (2120°), or each swing (2320°), about 12S |
Test Time | 1-999,999min (can be set) |
Rainwater Pressure | 80~150 Kpa (adjustable) |
Material | Stainless steel or powder |
Control System | PLC + stepping motor + touch screen |
Safety Protection Device | Power overload, short circuit protection, grounding protection, water shortage protection, alarm alarm |
Power Supply | 220V, 50Hz |
Package Size (W×D×H)(mm) | 3350×1650×2040 |
Gross Weight (Kg) | 450 |
