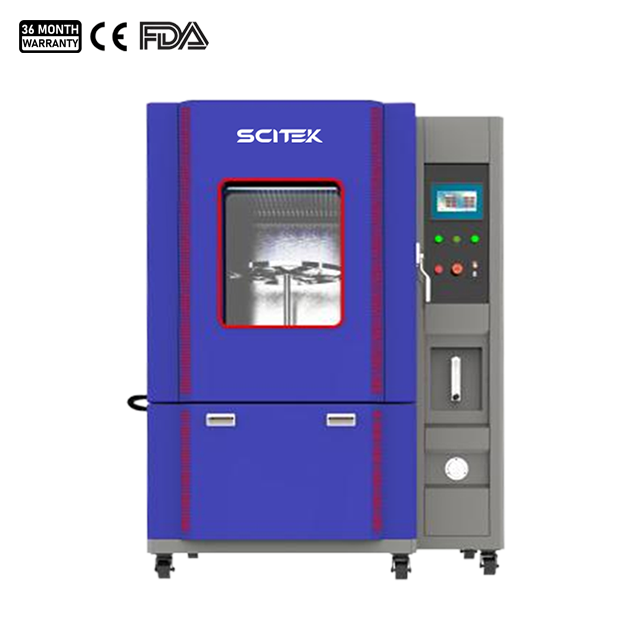

Drip test chamber is used to test whether the electronic and electrical equipment, shell and seal can guarantee the good performance of the equipment and components in the rain environment. It can simulate water drop, splashing water and other environments, suitable for communication equipment, auto parts, outdoor lighting, signal device and other equipment to do waterproof performance test and IP waterproof grade test; and the test equipment may be affected by water intrusion during the transportation or use, providing reliable basis for the equipment technical standards; the whole test process is completed in the chamber, and the water will not splash outdoors, and the water can be recycled.
Drip Test Chamber Specifications:
| Model | DTC-12 |
|---|
| Inner Chamber Size (W×D×H)(mm) | 1000×1000×1000 |
| Double Outer Size (W×D ×H)(mm) | 1550×1480×1950 |
| Dripping Chamber Size (W×D×H)(mm) | 800×800 |
| Turntable Ddiameter (mm) | 500 |
| Maximum Sample Size | 300×300×300 |
| Power (V)/Power (KW) | 220/3 |
| The Distance between the Drip Chamber and the Tested Sample (mm) | 200 |
| Diameter of the Drip Hole (mm) | φ0.4 |
| Water Hole Spacing (mm) | 20 |
| Rainfall (mm) | 1or 3 adjustable per minute |
| Test Time (min) | 1~999,999 (setting) |
| Test Bench Speed (rpm) | 1 ~3 adjustable (IP 1.2 standard turntable can be tilted 15°) |
| Turn Load（kg） | 20 |
| Temperature (℃) | 5 ~40 |
| Relative Temperature (RH) | 85% |
| Inner Chamber Material | SUS304 stainless steel |
| Material of the Outer Chamber | 201 stainless steel |
| Control System | An independently developed control system |
| Safety Protection System | Power overload / short circuit protection, grounding protection, water shortage protection, alarm ringtest mode |
| Package Size (W×D×H)(mm) | 1610×1540×2070 |
| Gross Weight (Kg) | 510 |
