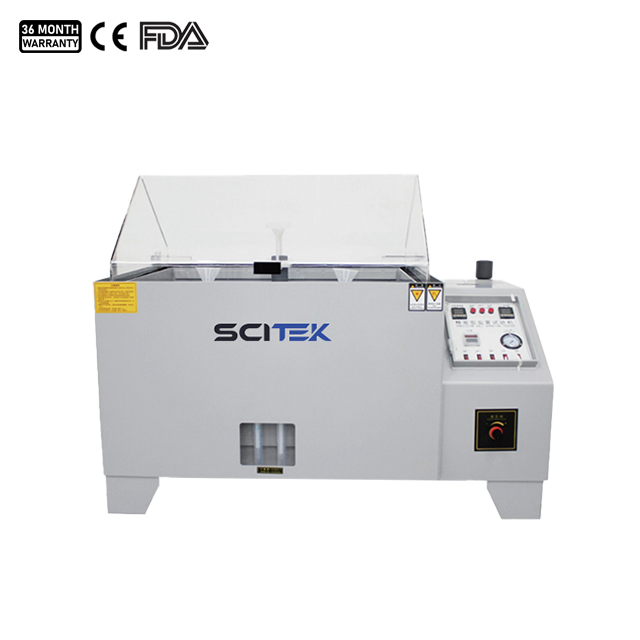

Salt spray corrosion test chamber is for the surface treatment of various materials, including coating, electroplating, inorganic and organic skin film, anode treatment, rust oil and other anti-corrosion treatment, test the corrosion resistance of its products.
Model | SCTC-01 | SCTC-02 | SCTC-03 | SCTC-04 | SCTC-05 |
---|---|---|---|---|---|
Internal Size (W×D×H)(mm) | 60×45×40 | 90×60×50 | 120×85×80 | 160×100×50 | 200×100×60 |
External Size (W×D×H)(mm) | 110×67×118 | 141×91×122 | 200×115×145 | 240×135×145 | 280×135×155 |
Capacity (L) | 108 | 270 | 510 | 800 | 1200 |
Salt Water Tank Capacity (L) | 15 | 25 | 40 | 40 | 60 |
Material Thickness (mm) | 5 | 6 | 8 | 8 | 10 |
Laboratory Temperature | RT+5°C~50°C (set according to test standards) | ||||
Temperature Fluctuation | ≤±0.5°C | ||||
Salt Spray Deposition | 1~2ml/h.80cm² | ||||
Spray Tower | Self-designed acrylic cone diffuser can adjust the size of the spray and make the mist fall evenly | ||||
Nozzle | PYREX glass precision nozzle | ||||
Spray Method | Continuous or intermittent spray optional | ||||
Defogging Method | The mist is eliminated by air extrusion. The lid of the box is tapered and has a top angle of 120°C, which helps the droplets generated by the salt spray not to fall directly on the sample, ensuring the accuracy of the test. | ||||
Laboratory Temperature Control | 0~99.9 | ||||
Accuracy (℃) | 0.1 | ||||
Time Switchboard Time (h) | 0~9999.9 | ||||
Gap Timing (h) | 0~99.9 | ||||
Pressure Adjustment Structure | Primary pressure regulating valve, secondary pressure regulating valve, pressure gauge, 2kg/cm² | ||||
Defogging Method | CSS, ASS test (working room temperature 35℃): PVC high-grade board CASS test (working temperature 50℃): PP high-grade board | ||||
Power Supply | AC220V,50HZ | ||||
Package Size (W×D×H)(mm) | 1130×780×1200 | 1440×1020×1240 | 2030×1260×1470 | 2430×1460×1470 | 2830×1460×1570 |
Gross Weight (Kg) | 50 | 65 | 80 | 95 | 110 |
