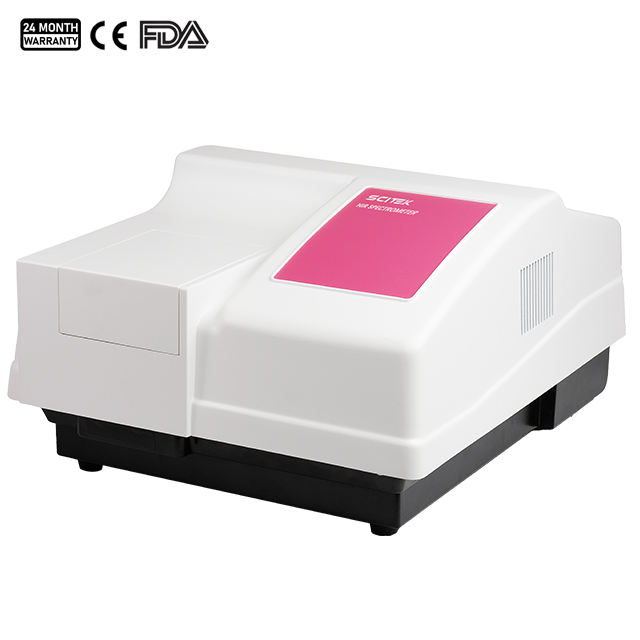

The SP-NIR430 is an economical NIR Spectrophotometer with excellent photometric performance in the 900nm-2500nm range. Designed to provide fast scanning speeds, instrument setup and better response times to maximize your productivity.
Model | SP-NIR430 |
---|---|
Measurement | Transmission |
Bandwidth | 8nm |
Wavelength Range | 900nm-2500nm |
Wavelength Accuracy | ≤0.2 |
Wavelength Reproducibility | ≤0.05 |
Stray Light | ≤0.1% |
Noise | ≤0.0005 Abs |
Analysis Time | 1 minute or above |
Port | USB2.0 |
Power Supply | 90-250V, 50/60Hz |
Temperature Requirement | 5-35 ℃ |
humidity Requirement | 5-85 %RH |
Size(W×D×H)(mm) | 360×460×240 |
Shipping Size(W×D×H)(mm) | 530x500x380 |
N.W./G.W. (kg) | 12/15 |
1. No need to prepare samples. Easy to use.
2. Wavelength range is 900nm-2500nm.
3. The main part of the performance is the international leader.
4. Built-in high quality PTFE reference module for automatic reference calibration.
5. The NIR spectrophotometer is equipped with polystyrene wavelength standard filter, automatic monitoring of wavelength to ensure accurate and stable measurement results.
6. Real-time monitoring of environmental temperature and humidity.

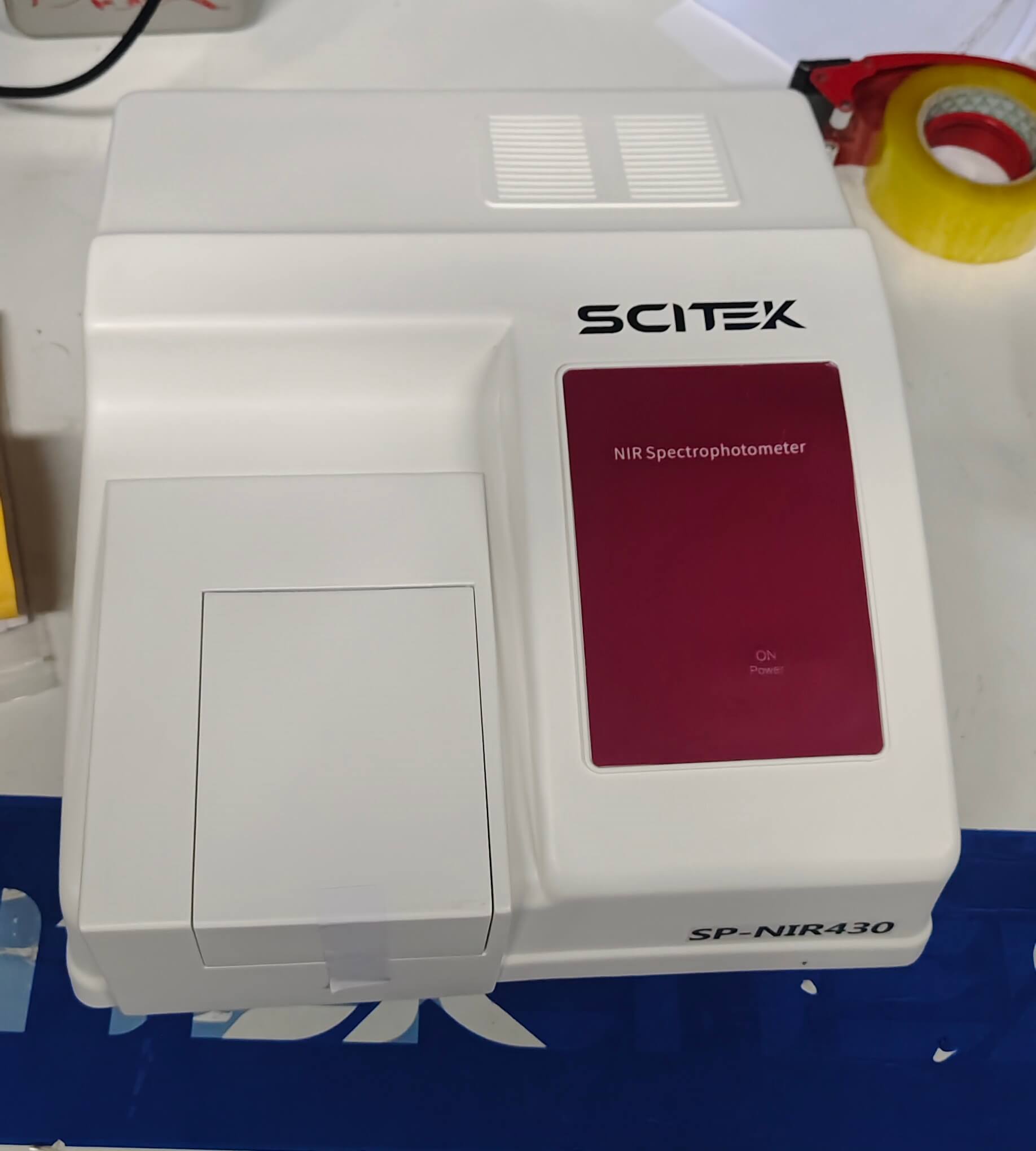

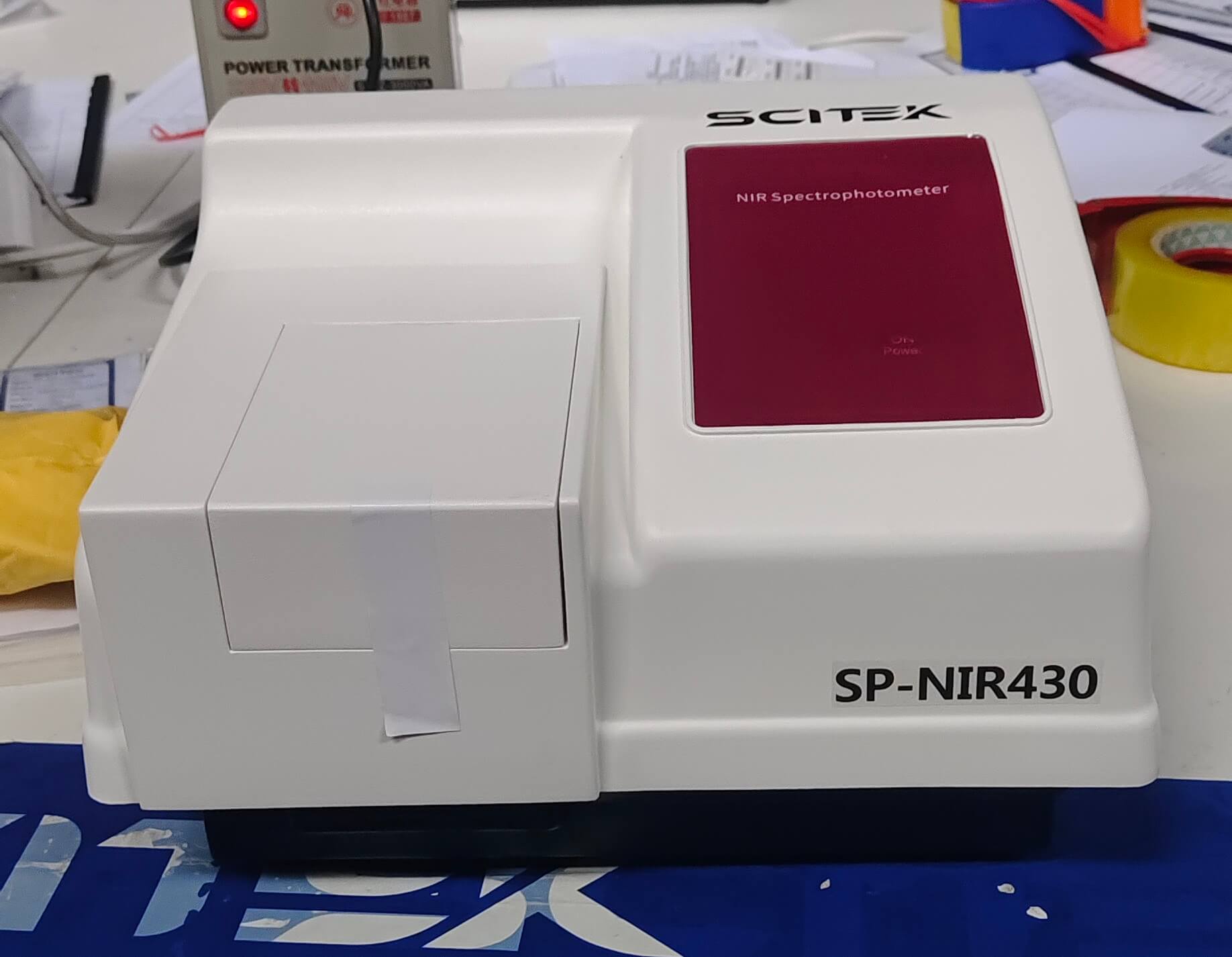

The overall design of the NIR Spectrophotometer is simple, with a slightly protruding lid section that facilitates the placement and removal of samples by the user.

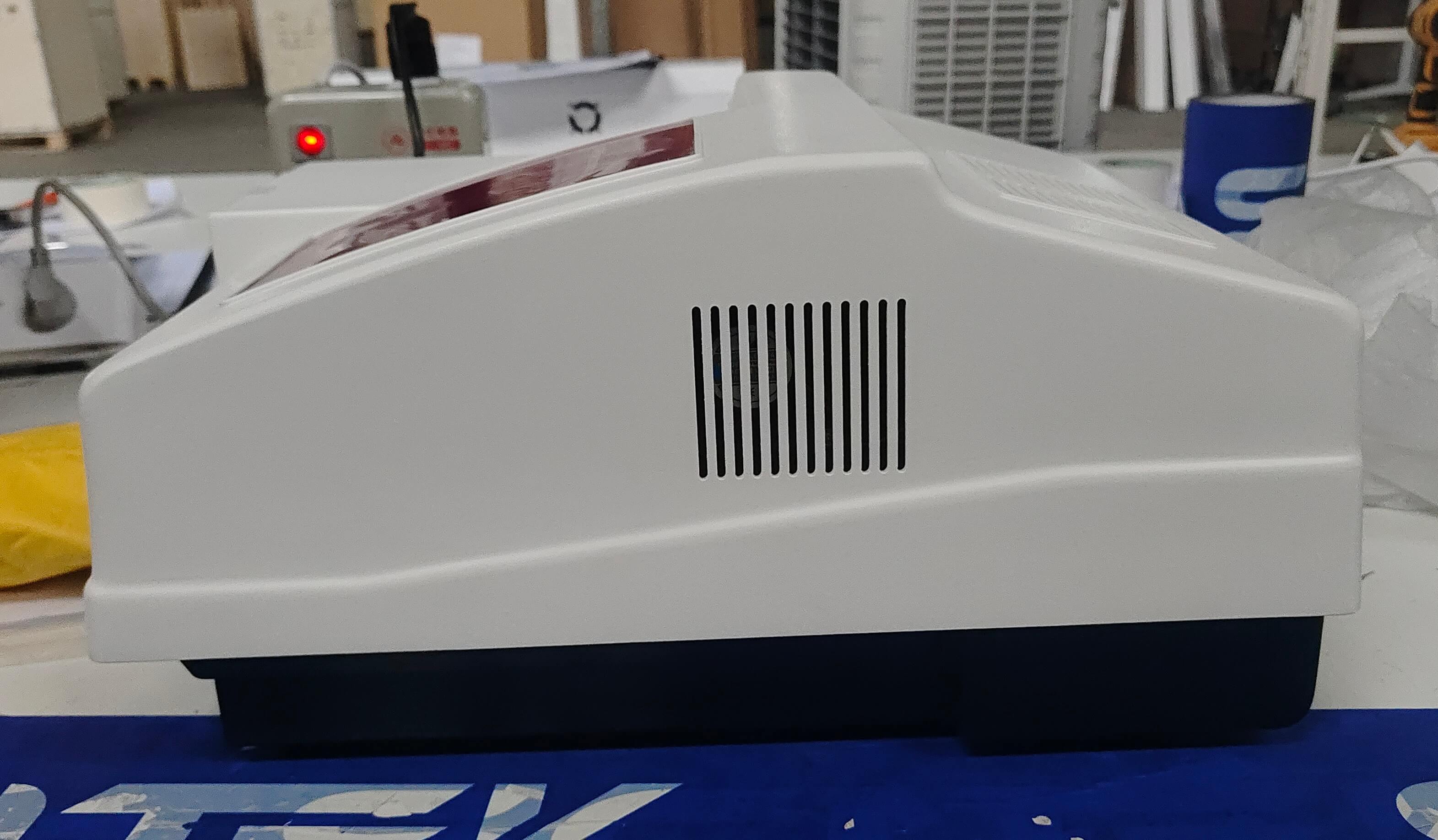

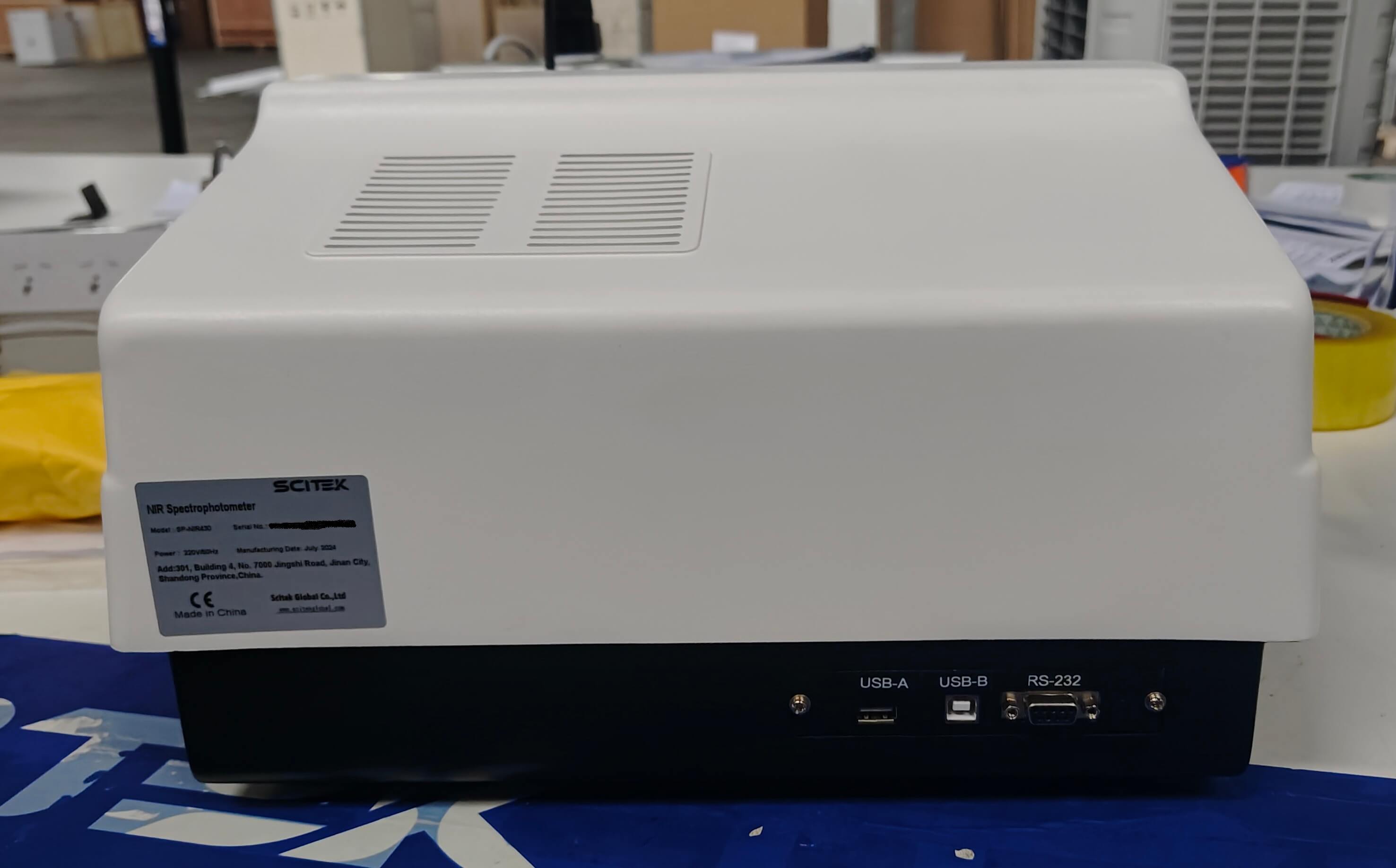

Vents, ports and power switches

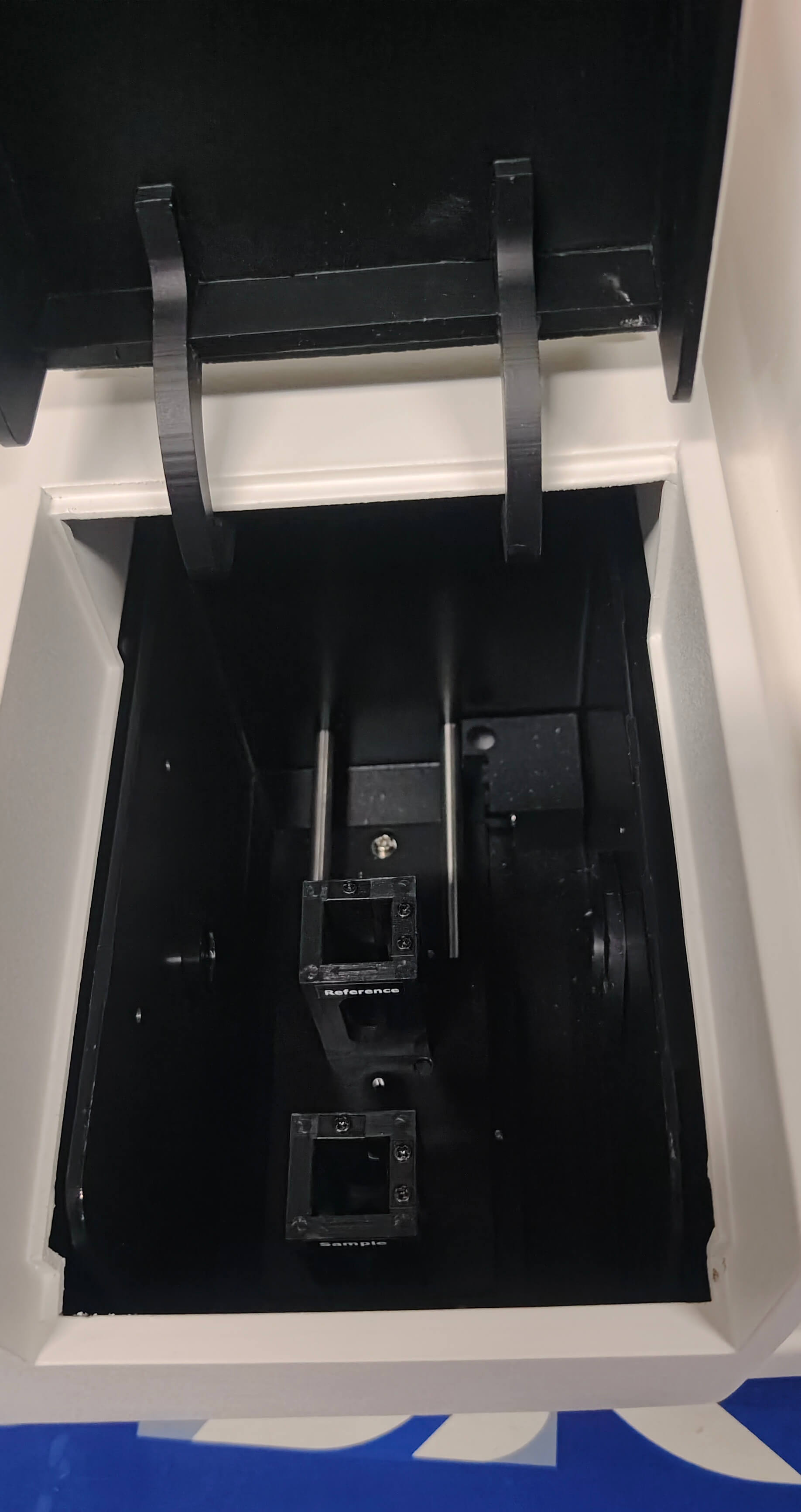

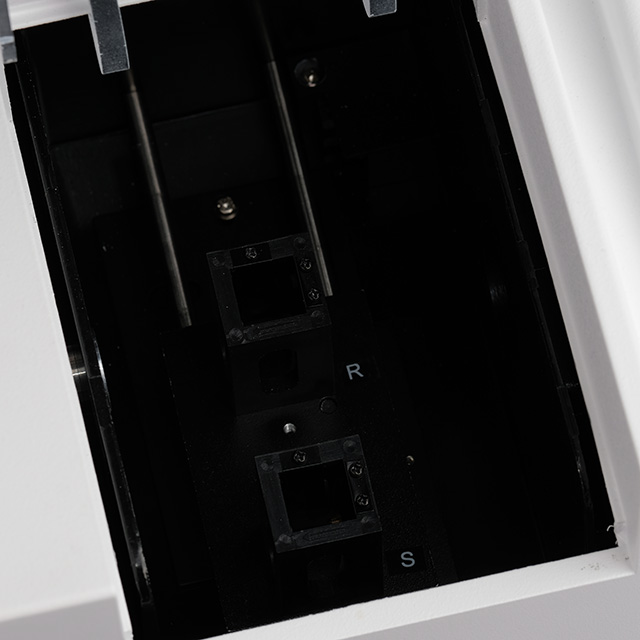

The interior is designed with a slot with a stand for easy placement of samples
