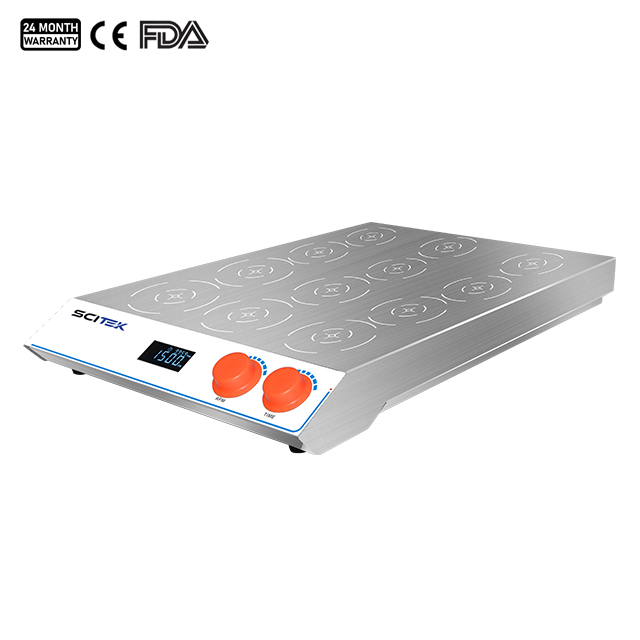

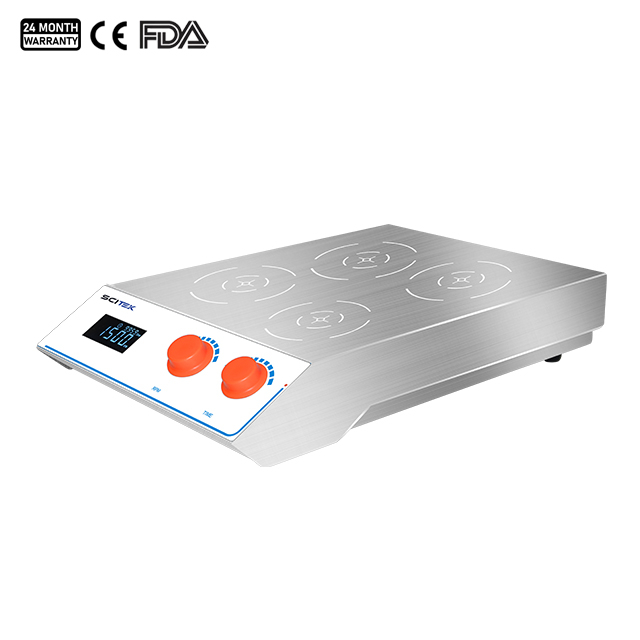

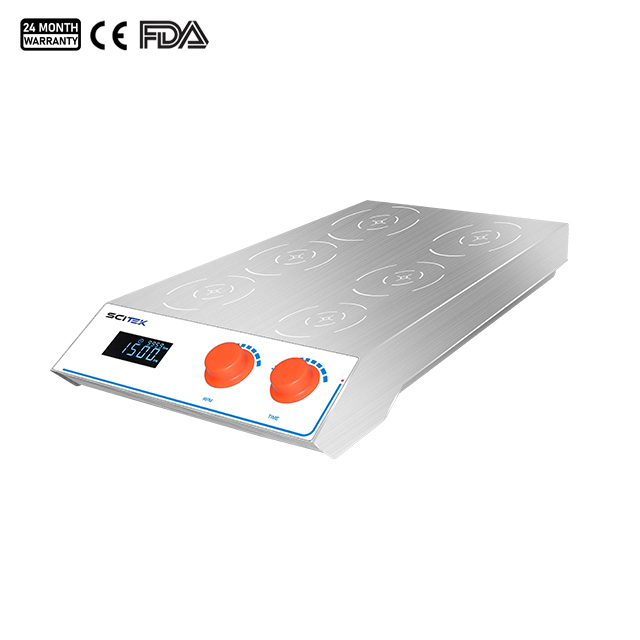

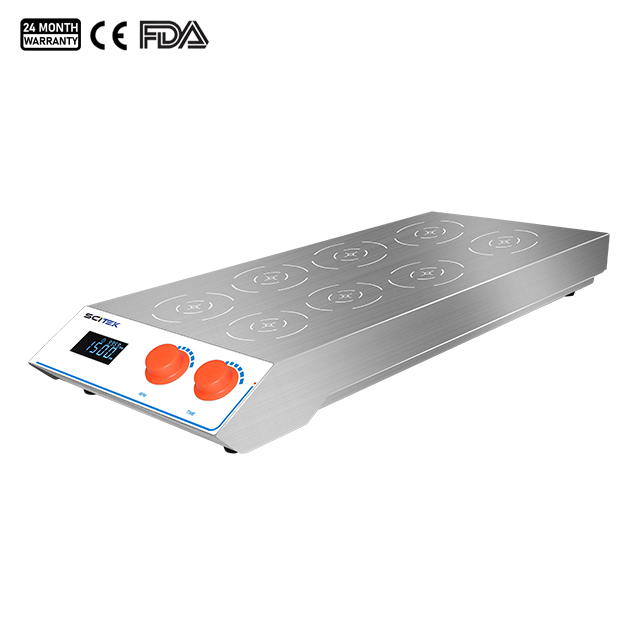

Multi-position Non-heated Magnetic Stirrer

Model : MMS-4D; MMS-6D; MMS-8D; MMS-12D;

Work Plate Size (WxD) : 290×240; 405×240; 520×240; 520×360;
Shell Material : 316 Stainless Steel
Speed Range : 200-2200
Display Mode : LCD
The multi-position non-heated magnetic stirrer is designed for high-efficiency experiments.
Availability:
Quantity:

Multi-position Non-heated Magnetic Stirrer Specifications:

ModelMMS-4DMMS-6DMMS-8DMMS-12D
Work Plate Size (WxD)290×240405×240520×240520×360
Shell material316 Stainless Steel
Work plate material316 Stainless Steel
Motor typeBrushless DC motor
Stirring positions46812
Max. stirring quantity(ml)1000x41000x61000x81000x12
Distance between work areas (mm)115
Speed range200-2200
Display modeLCD
Drive modeMotor drive
Operation modeSynchronous
Control methodDual knobs
Protection classIP64
Noise (db)≤27
Whole machine power (W)18253240
Time setting range (min)0~9999
Available stirrer size (mm)≤20
Allowable ambient temperature and humidity5-40℃, 80%RH
Power supply100-240V 50/60Hz
Size (W×D×H)(mm)350×240×75465×240×75580×240×75580×360×75
Shipping size (W×D×H)(mm)595×405×170600×405×170710×420×145710×420×145
N.W./G.W. (kg)4.5/5.35.5/7.27.0/8.010.0/11.0

Multi-position Non-heated Magnetic Stirrer Features:

  1. Designed with a wide voltage range of 100-240V, it has a wide range of applications

  2. Equipped with time setting function, adjustable within the range of 0~9999min

  3. High quality anti slip foot pads tightly adhere to the experimental table without gaps, ensuring smooth operation

  4. IP64 protection level, all-round splash proof and waterproof

  5. Each workstation operates 100% synchronously to ensure consistency in the sample operating environment

  6. Double knob design, adjustable time and speed, good starting performance, wide speed range

  7. Made of 316 stainless steel material, sturdy and strong, with superior corrosion and high temperature resistance

  8. DC brushless motor drive, low noise, low maintenance frequency, not need upkeep, long service life

  9. LCD screen displays real-time speed and time, with intuitive data and more accurate reading

  10. The standard stirrer has strong magnetic force and significant mixing effect, with a single station mixing volume of up to 1000ml

  11. The speed can be set to 200-2200rpm, allowing for smooth operation even at low speeds
