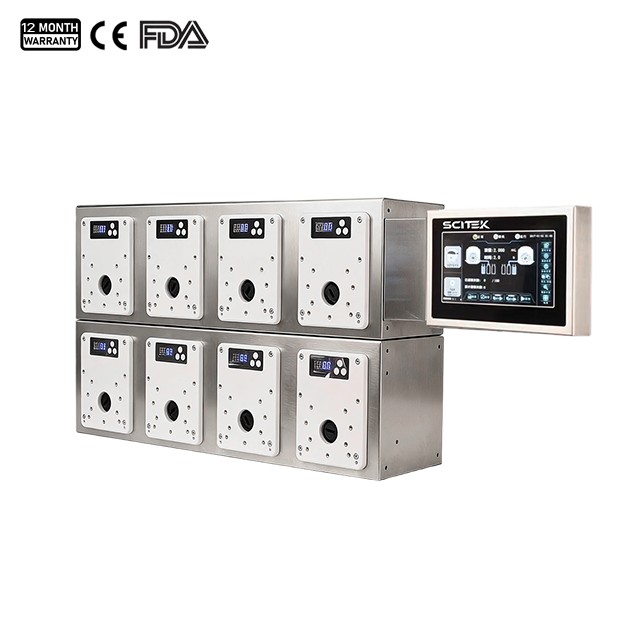

The modular filling system is designed for high-precision liquid filling. Typical application fields include the pharmaceutical and bioproduct industries, food and beverage industry, daily chemical and cosmetics industries, and chemical and lubricant industries.
Modular Filling System Feature:
1. 7-inch touch screen for intuitive display and user-friendly operation.
2. Programmable storage and recall function.
3. Stainless steel enclosure rated IP31 for enhanced durability and environmental protection.
4. Multi-layered flow control architecture ensures volumetric accuracy.
(1) High quality stepper motor drive, coupled with a robust and optimized fluidic pathway and control system, delivers consistent filling accuracy—inter-channel deviation < ±1%.
(2) Built-in calibration algorithms that have been verified multiple times, making it more convenient to use.
(3) Real-time speed fine-tuning capability allows dynamic compensation for flow drift induced by tubing fatigue or aging.
5. One-to-one correspondence between pump heads and channels, with fully independent channel-level control.
(1) Individual on/off activation and reversible filling direction per channel.
(2) Simultaneous or selective emptying and liquid recovery across single or multiple channels.
(3) User-definable retraction angle and retraction duration per channel.
(4) Each channel can be set with a communication address separately through film buttons and displayed through digital tubes.
6. Dual-mode control architecture: offline and online.
(1) Offline mode is local controlled through the touch interface.
(2)Online mode is controlled by external signals. In this mode, the integrated filling system supports automatic filling stop on missing bottles. Each filling system has a pair of contact-signal input ports.
7. Designed for flexible deployment—fully compatible with automated filling lines as well as manual benchtop operation.
Modular Filling System Specification:
Model
FS-32M
Channel Qty.
2–32 customizable
Volume Capacity
0.1–9999.99 mL
Filling Volume
0.1–100 mL
Volume Adjustment Resolution
0.01mL
Setting Time
0.1–6553.5 s
Filling Interval Time
0.1–6553.5 s
Time Adjustment Resolution
0.1 s
Number of Filling Cycle
1–65535
Retraction Angle
0–999°
Pre-Retraction Delay
0–60 s
Operating Ambient Temperature
0–40 ℃
Operating Ambient Relative Humidity
20%–80%
Enclosure Protection
IP31
Power Supply
220/110 V, 50/60 Hz
Customizable Options of Pump Head
DG0110, YZ1513, YZ2513S, DMD15-13
Modular Filling System Application:
The modular filling system is designed for high-precision liquid filling. Typical application fields include the pharmaceutical and bioproduct industries, food and beverage industry, daily chemical and cosmetics industries, and chemical and lubricant industries.
Modular Filling System Feature:
1. 7-inch touch screen for intuitive display and user-friendly operation.
2. Programmable storage and recall function.
3. Stainless steel enclosure rated IP31 for enhanced durability and environmental protection.
4. Multi-layered flow control architecture ensures volumetric accuracy.
(1) High quality stepper motor drive, coupled with a robust and optimized fluidic pathway and control system, delivers consistent filling accuracy—inter-channel deviation < ±1%.
(2) Built-in calibration algorithms that have been verified multiple times, making it more convenient to use.
(3) Real-time speed fine-tuning capability allows dynamic compensation for flow drift induced by tubing fatigue or aging.
5. One-to-one correspondence between pump heads and channels, with fully independent channel-level control.
(1) Individual on/off activation and reversible filling direction per channel.
(2) Simultaneous or selective emptying and liquid recovery across single or multiple channels.
(3) User-definable retraction angle and retraction duration per channel.
(4) Each channel can be set with a communication address separately through film buttons and displayed through digital tubes.
6. Dual-mode control architecture: offline and online.
(1) Offline mode is local controlled through the touch interface.
(2)Online mode is controlled by external signals. In this mode, the integrated filling system supports automatic filling stop on missing bottles. Each filling system has a pair of contact-signal input ports.
7. Designed for flexible deployment—fully compatible with automated filling lines as well as manual benchtop operation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
