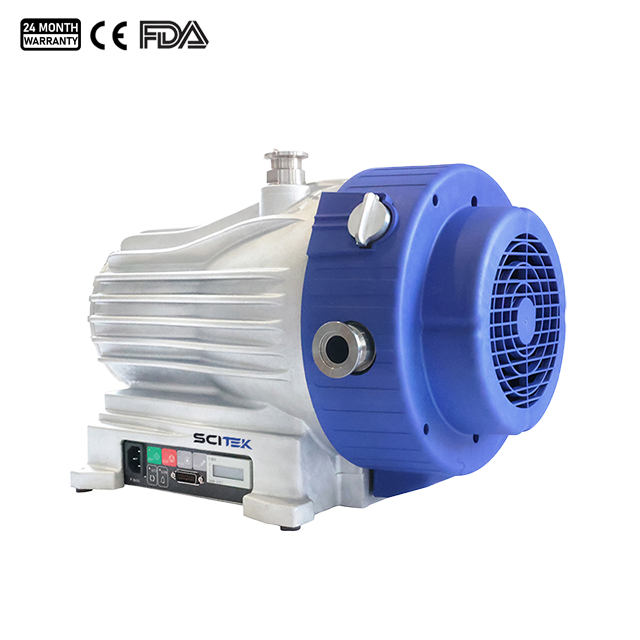

The second-generation dry vortex pump structure has excellent pumping capacity, ultimate vacuum performance, and advanced design features. The dry vortex pump (second-generation) has been optimized based on the first generation vortex pump, increasing pumping speed, achieving higher ultimate vacuum, lower power consumption, and noise. A smaller volume can be used to vacuum condensable vapors (including water, solvents, dilute acids, and bases) with the help of gas ballast function. The second-generation dry vortex pump also adopts optimized end face sealing technology, significantly extending the time interval for replacing the end face sealing strip. More suitable for applications involving water vapor and certain weakly corrosive substances.
Dry Vortex Pump Specifications:
| Model | VP-D10S | VP-D15S | VP-D20S |
|---|
| Pumping speed(m³/h) | 10 m³/h(6.7cfm) | 15 m³/h(8.9cfm) | 20 m³/h(13cfm) |
| UItimate pressure | ≤30pa/0.3 mbar | ≤20 pa/0.2mbar |
| Rotaryspeed(rpm) | 1500 rpm |
| Hlet/Outlet cannector | KF25 |
| Powersupply(w) | 550W | 750W |
| Ratedpower(v) | 100-240V/50-60 HZ |
| Size(WxDxH)(mm) | 442x278x308 |
| Weight (kg) | 25.2kg(56 Ib) | 25.6kg(56 Ib) | 25.8kg(57 Ib) |
| Vapour pumping capacity(g/h) | 160 | 250 |
| No ise level(dB(A) | 55 dbA |
| Cooling methad | Air-cooling |
| Warking temperature | 5-45℃ |
Dry Vortex Pump Features:
Variable frequency temperature control fan
Dual frequency and dual voltage design
Optimize the design of the vortex disk
Optimize end face seal design
Characteristics of High Flow Gas Town
Permanent magnet variable frequency motor drive
8000 hours of continuous working hours warranty
Scope of application:
Vacuum drying/drying
Gas recovery and recycling
Vacuum packing
Removing bubbles from battery capacitors
Glove box and exhaust station
