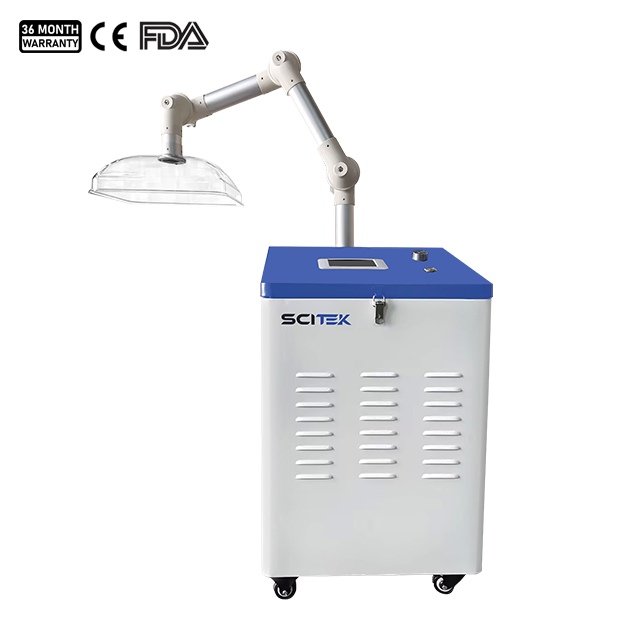

The mobile fume extractor is a versatile and portable device, which is designed to remove harmful fumes, dust, smoke, and airborne contaminants from the air in various work environments.
It is particularly popular in industries such as laboratories, welding and manufacturing where pollutants are generated during processes like welding, cutting or chemical handling.
Mobile Fume Extractor Specifications:
| Model | MFE-240 |
| External Size (W×D×H)(mm) | 460×460×700 |
| Connection Inner Diameter for Exhaust duct | 90mm |
| Control System | Display and Alarm | 7”LCD touch screen |
| Real-time monitoring and display temperature, humidity, Air velocity, VOC concentration and with integrated alarm system. |
| Airflow System | Airflow Volume | 240m³/h |
| Air filtration System | HEPA Filter | HEPA filter, ≥99.995% efficiency at 0.3μm |
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating, thickness ≥1.2mm |
| Electrical System | Blower | PSC blower, 24V electric current, stable performance, super quiet, no spark static electricity |
| Electric Current | 1.2A |
| Consumption | 30W |
| Power Supply | 220V±10%, 50Hz |
| Sound Emission | ≤50dB(A) |
| Environment Temperature | -30℃~70℃ |
| Standard Accessory | 1.LCD Touch Screen; 2.HEPA filter; 3.Pre-filter; 4.Universal casters (Total 4pcs, 2pcs with locking function). |
| Optional Accessory | 1. Active Carbon Filter; 2. BCGL OG Organic Gas Filter; 3. BCGL AG Acid Gas Filter. |
| Net Weight | 67kg |
| Gross Weight | 87kg |
| Shipping Size (W×D×H)(mm) | 650×750×950 |
| Shipping Volume | 0.5 m³ |
Mobile Fume Extractor Feature:
Mobile type for easy installation and operation.
Exterior material is electro-galvanized steel with antimicrobial Powder Coating, thickness ≥1.2mm, covered with a durable chemical resistant lead-free coating to maintain a high finish, Minimize the effects of corrosion and moisture.
7’’ LCD touch screen display, Real-time monitoring and display temperature, humidity, Air velocity, VOC concentration and with integrated alarm system.
Imported PSC blower, 24V electric current, stable performance, super quiet, no spark static electricity.
Efficient filtration system, following ASTM standards, effective for acid gas and organic gas, strong adsorption capacity, with HEPA filter, ≥99.995% efficiency at 0.3μm.
The interface with anti-electromagnetic interference power cord.
Mobile Fume Extractor Composition:

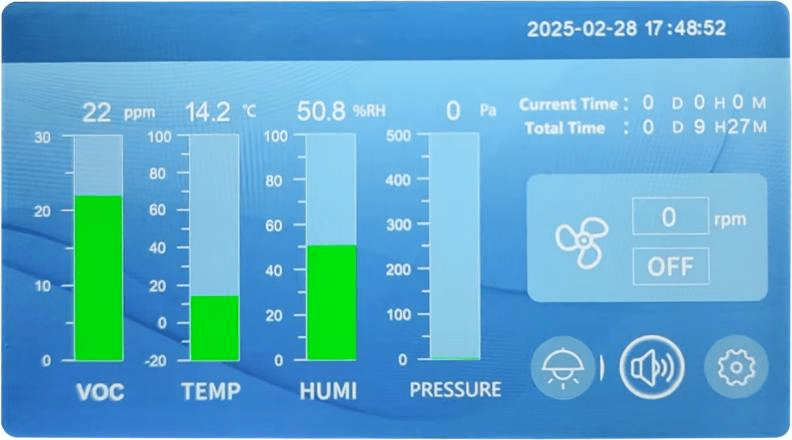

LCD Touch Screen
(Display VOC, Time, Temperature, Humidity, Pressure, Air Speed etc.)

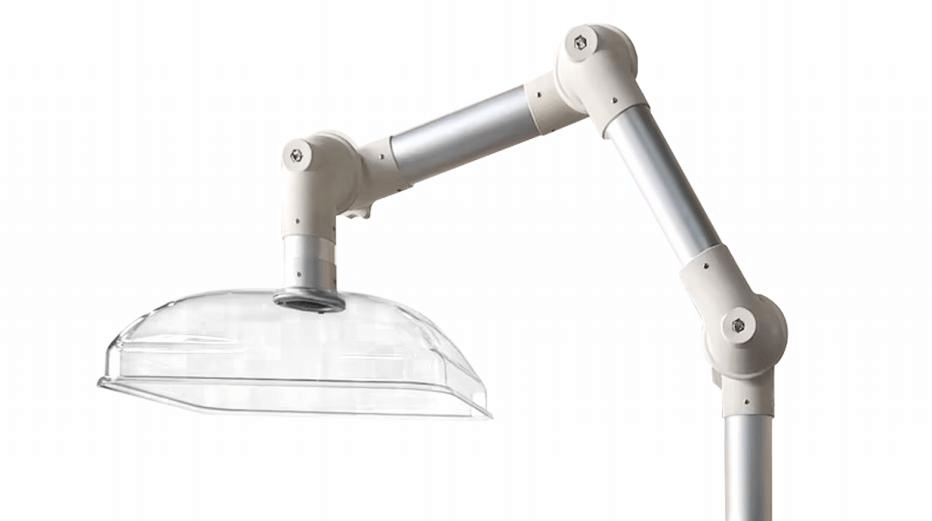

Exhaust Arm Aluminum alloy material, strong structure, the direction can be adjusted and fixed.

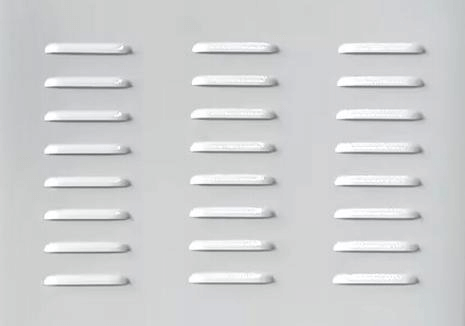

Front and back with air outlets, exhaust air is uniform.

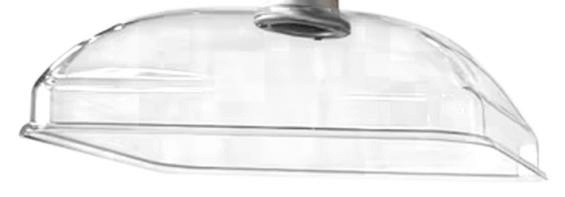

Acrylic Exhaust Canopy, provide negative pressure
