Microplate incubator shaker effortlessly handles high-throughput sample processing. Supports flexible incubation for individual plates, easily accommodating multi-batch experiments. Providing a stable and efficient solution for processes such as sample incubation, enzymatic catalysis, and cell culture, serves as essential equipment for life science labs.
Microplate Incubator Shaker Feature:
Accommodates up to 6 standard microplates (e.g., ELISA plates, cell culture plates, or deep-well plates) in a single run, meeting high-throughput experimental needs.
Supports independent incubation timing for each of the six plate positions, allowing for customized incubation cycles for different samples and offering greater flexibility in batch management (only for SK-MHP6).
Precise temperature control via PID algorithms and dual over-temperature protection (except for SK-MHP2) for safe, reliable operation.
Wrap-around heated lid design with automatic and manual control modes to minimize edge effects and ensure uniform heating.
Supports automatic recovery after power failure and dual over temperature protection.
Brushless DC motor, offering low noise, minimal interference, and maintenance-free operation—to create a quiet, comfortable laboratory environment.
Displays real-time operating and setting parameters, providing full visibility of the device status.
Microplate Incubator Shaker Specification:

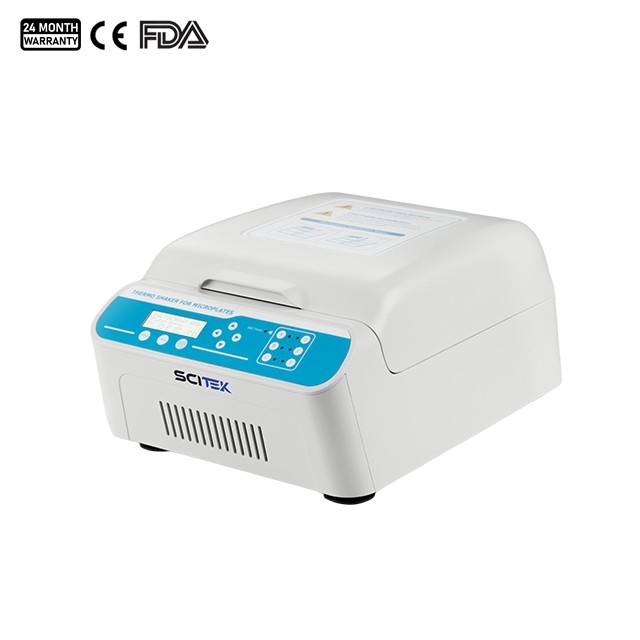

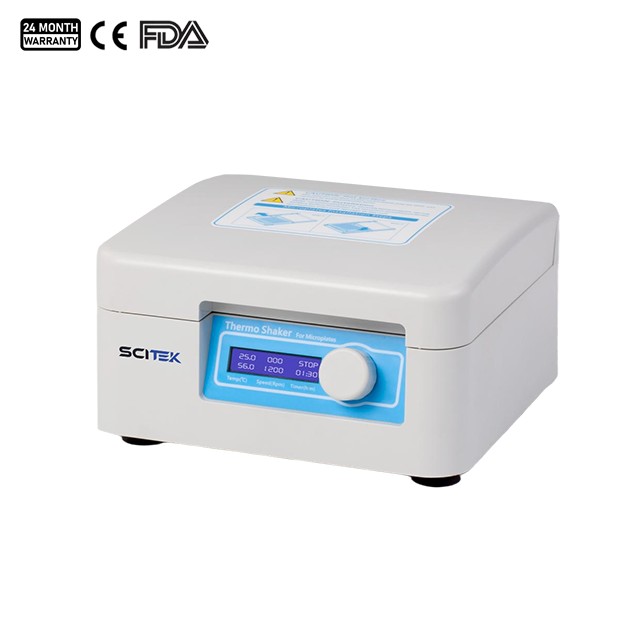

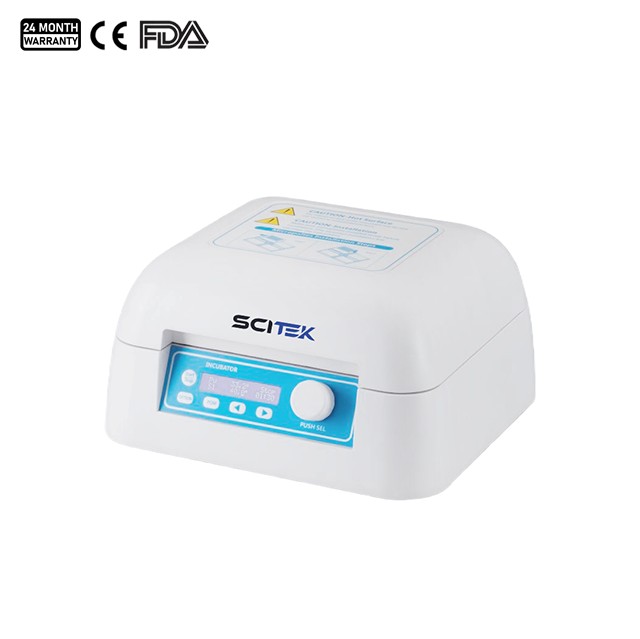

Model | SK-MHP2 | SK-MHP4I | SK-MHP6 |
Throughput | 2 | 4 | 6 |
Sample Capacity | Microplates | Microplates / Cell Culture Plates / Deep-well Plates |
Speed Range | 200–1600 rpm | 200–1350 rpm | 200–1600 rpm |
Timer | 1min–99h59min | 1min–99h59min /continuous operation |
Heating Temp. Range | RT.+5 to 80 ℃ | RT.+5 to 80 ℃ | RT.+5 to 100 ℃ |
Heating Time | ≤10 min | ≤10 min | ≤10 min |
Temp. Accuracy | ≤±0.5 ℃ |
Temp. Resolution | 0.1 ℃ |
Temp. Uniformity | ≤±0.5 ℃ |
Orbit Range | 3 mm |
Function | 1. Dual over-temperature protection | 1. Dual over-temperature protection 2. Temp. calibration 3. Auto preheat | 1. Dual over-temperature protection 2. Temp. calibration 3. Auto preheat 4. Auto fan cooling 5. Individual timers for up to 6 plates |
|
|
|
|
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 150 | 300 | 480 |
External Size (W×D×H)(mm) | 280×270×140 | 340×320×200 | 481×346×228 |
Shipping Size (W×D×H)(mm) | 410×350×240 | 460×440×300 | 580×440×350 |
N.W/G.W (kg) | 7/8 | 10/11.5 | 15/17 |
