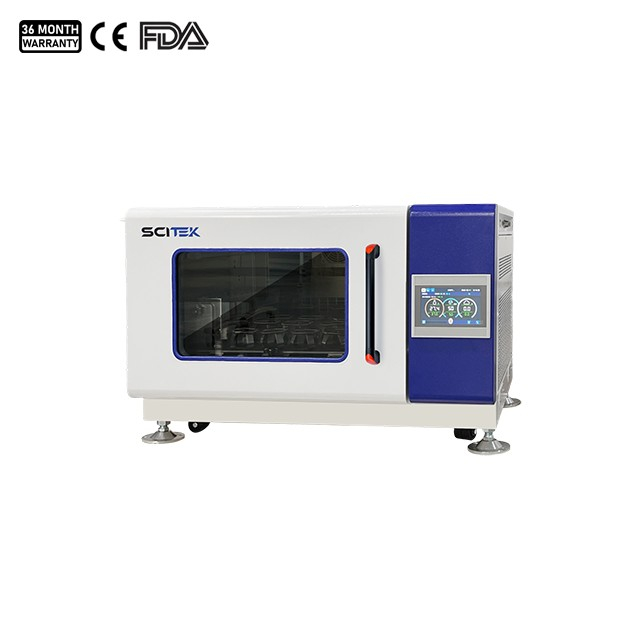

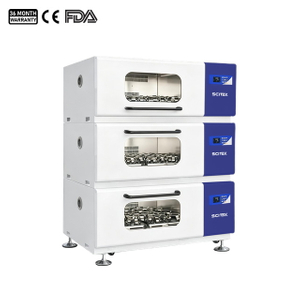

Stackable CO₂ Incubator Shaker Application:
CO₂ shaking incubator combines incubation and agitation functions, enabling the orbital shaking of samples within a stable CO₂ environment. Stackable design allows up to 3 units to be stacked vertically, effectively maximizing laboratory space utilization.Commonly used in applications such as cell culture, bio-pharmaceuticals, microbial fermentation, scientific research and quality control, and high-throughput processing.
Stackable CO₂ Incubator Shaker Feature:
1. 7-inch touch screen with customizable 5×30-stage programmable control system to set different temperature, speed, CO₂ concentration, time and other parameters,
2. Automatically and seamlessly switches between different programmes, supporting real-time monitoring of key parameters and historical data trends throughout the cultivation process
3. Double-layer glass door, ensuring excellent thermal insulation and safety.
4. UV sterilization system, ensuring a clean culture environment inside the chamber.
5. Brushed all-stainless steel, rounded-corner seamless inner chamber, offering an aesthetic appearance and easy cleaning.
6. Patented bearing technology ensures smooth startup and near-silent operation, with seamless, stable movement during opening and closing.
7. Supports flexible configurations, including benchtop, floor-standing, or dual/triple-stacking—maintaining rock-solid stability even when fully loaded in stacked arrangements.
8. Intelligent power-loss memory, automatically resuming operation based on original parameters once power is restored.
9. Automatic power-loss alerts to fully safeguard samples and data during long-term experiments.
10. Integrates an innovative door safety mechanism that effectively prevents liquid spills and protects operators.
11. USB port for one-touch export and backup of experimental data, enhancing the efficiency and security of data storage and traceability.
Stackable CO₂ Incubator Shaker Specification:
Model | ICB-C160ST |
Capacity | 160 L |
Display | 7.0 inch LED touch operation screen |
Shaking Motion | Orbital |
Rotation Speed | 2–300 rpm depending on load and stacking |
Speed Control Accuracy | 1 rpm |
Shaking Amplitude | 50 mm |
Temp.Control Mode | PID control mode |
Temp.Control Range | 4–60 °C |
Temp.Display Resolution | 0.1 °C |
Temp.Distribution | ±0.3 °C at 37 °C |
CO₂ Sensor | IR |
CO₂ Control Range | 0–20% |
CO₂ Display Resolution | 0.10% |
Timer | 0–999.9 h |
Illumination | FI tube, 30 W |
Max. Loading (kg) | 35 |
Platform Size (mm) | 590×465 |
Max. Capacity | 48×100/125 mL or 35×250 mL or 24×500 mL or 15×1000 mL or 8×2000 mL |
Maximum Expansion | Stackable up to 3 units |
Optional Function | Sliding black window; Door heating function |
Historical Data Storage | 800,000 |
Power Supply | 100–240 V, 50/60 Hz |
Consumption | 1300 W |
Internal Size (W×D×H) | 720×632×475 mm |
External Size (W×D×H) | 1000×725×620 mm |
Shipping Size (W×D×H) | 1150×860×755 mm |
N.W/G.W. | 156/183 kg |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
