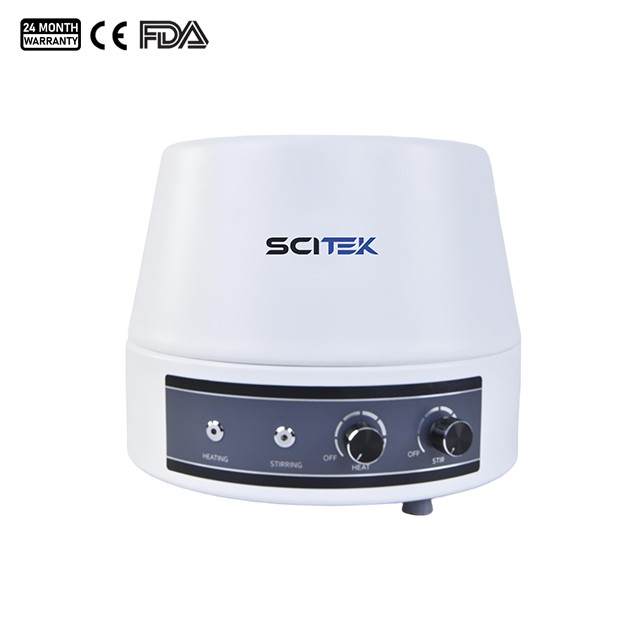

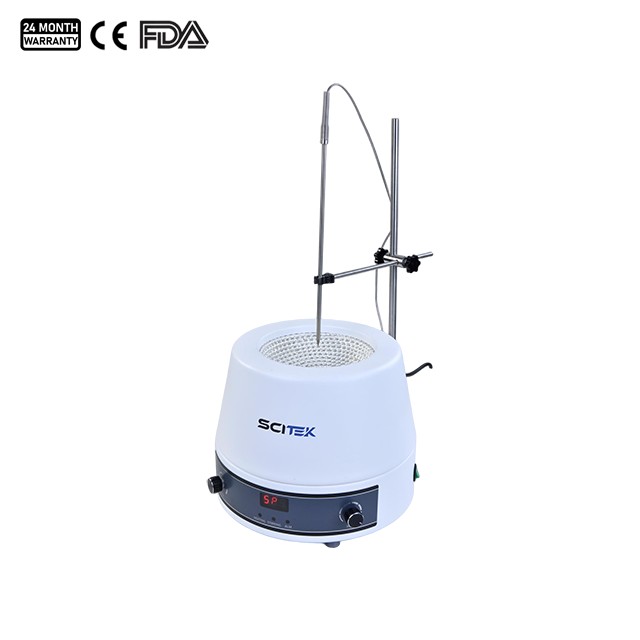

Magnetic Stirring Heating Mantle, IV Series

Model: MHE-IV; MHD-IV

Capacity (mL): 100, 250, 500, 1000, 2000
Surface Max. Temp.: 380 ℃
Speed Range: 0–1600 rpm
Timer: 0–999 mins (for MHD-IV)

The magnetic stirring ensures uniform temperature for the sample being heated.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Magnetic Stirring Heating Mantle Feature:

1. The outer shell is made of cold-rolled steel with anti-corrosion surface treatment.

2. The heating element, constructed with nickel-chromium alloy wire, exhibits rapid heating performance and a prolonged service life.

3. Magnetic stirring ensures uniform temperature.

4. With timer and over-temperature alarm. (MHD-IV)

Magnetic Stirring Heating Mantle Specification:

Model	MHE-IV/MHD-IV
Capacity (mL)	100	250	500	1000	2000
Heating Mode	Magnetic stirring and surface heat-conduction
Surface Max. Temp.	380 ℃
Min. Set Temp.	70 ℃
Working Mode	Continuous
Thermal insulation cotton	High quality aluminum silicate cotton
Speed Range	0–1600 rpm
Min. speed setting increment	200 rpm
Temperature Display Method	MHE-IV: Scale representation; MHD-IV: LED display
Timer	MHD-IV: 0–999 mins
Heating Power(W)	100	150	250	350	400
Power Supply	AC 220/110 V, 50/60 Hz
External Size (mm)	Φ196×176			Φ262×231	Φ302×232
Shipping Size (W×D×H)(mm)	246×246×213			317×317×268	361×361×270
N.W./G.W. (kg)	2.5/2.8			4/4.5	4.5/5
