Magnetic Stirrer, 1 Stirring Position

Model : MS-A; MS-B

Work Plate Size : φ 135mm (5 inch)
Motor Type : Brushless DC motor
Max. Stirring Quantity (H2O) : 3L
Speed Range : 0-1500rpm
Size(W×D×H)(mm) : 260×150×80
Magnetic stirrer is plug-and-play and portable, perfect for everyday stirring applications.
Availability:
Quantity:
Inquiry Add to Inquiry List

Magnetic Stirrer Specifications:

Model MS-A MS-B
Work Plate Size φ 135mm (5 inch) φ 135mm (5 inch)
Work Plate Material Nylon+GF Nylon+GF
Motor Type Brushless DC motor Brushless DC motor
Stirring Positions 1 1
Max. Stirring Quantity (H2O) 3L 3L
Max. Magnetic Bar (Length) 50mm 50mm
Speed Range 0-1500rpm 0-1500rpm
Speed Display LED Scale
Protection Class IP42 IP42
Motor Input Power 5W 5W
Motor Output Power 3W 3W
Power 15W 10W
Power Supply 100-120/200-240V, 50/60Hz
Permissible Ambient
Temperature and Humidity		 10-40℃, 80%RH 10-40℃, 80%RH
Size(W×D×H)(mm) 260×150×80 260×150×80
Shipping Size (W×D×H)(mm) 300×240×220 300×240×220
N.W./G.W. (kg) 1.8/3 1.8/3

Magnetic Stirrer Features:

MS-B

Max speed is 1500rpm.

Stirring quantity of H2O at 3L.

Nylon + GF shell provides good chemical resistance.


MS-A

Digital control, LED display

Max speed is 1500rpm.

Stirring quantity of H2O at 3L.

Nylon + GF shell provides good chemical resistance.

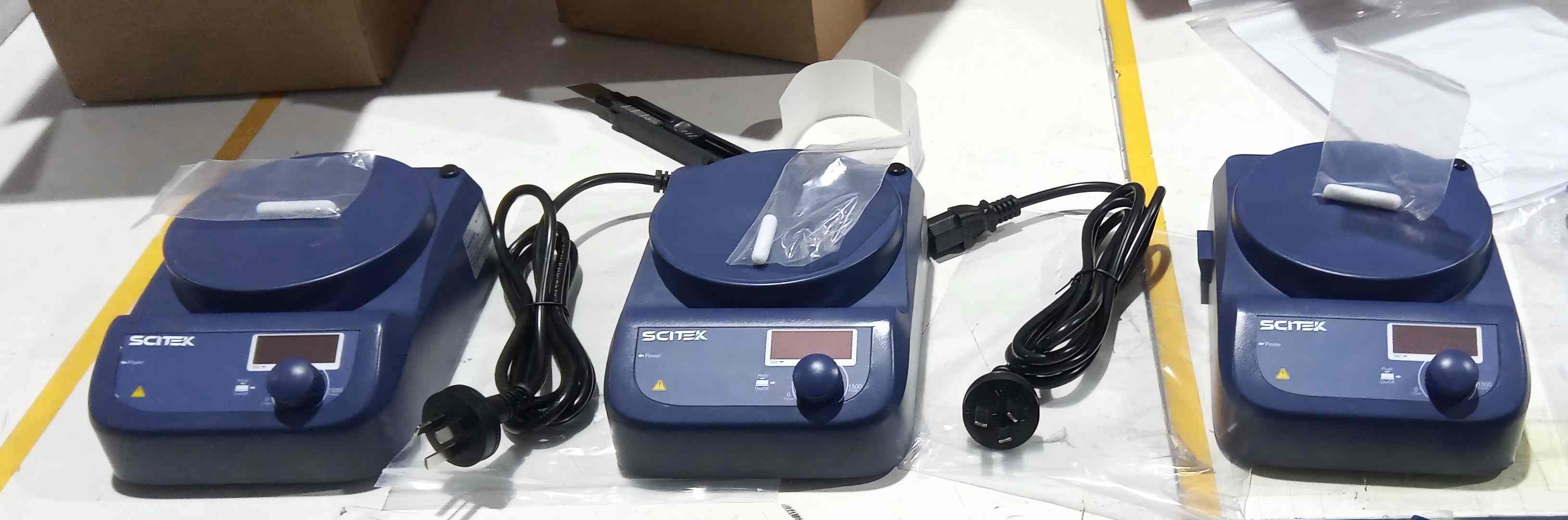

Magnetic Stirrer (1)

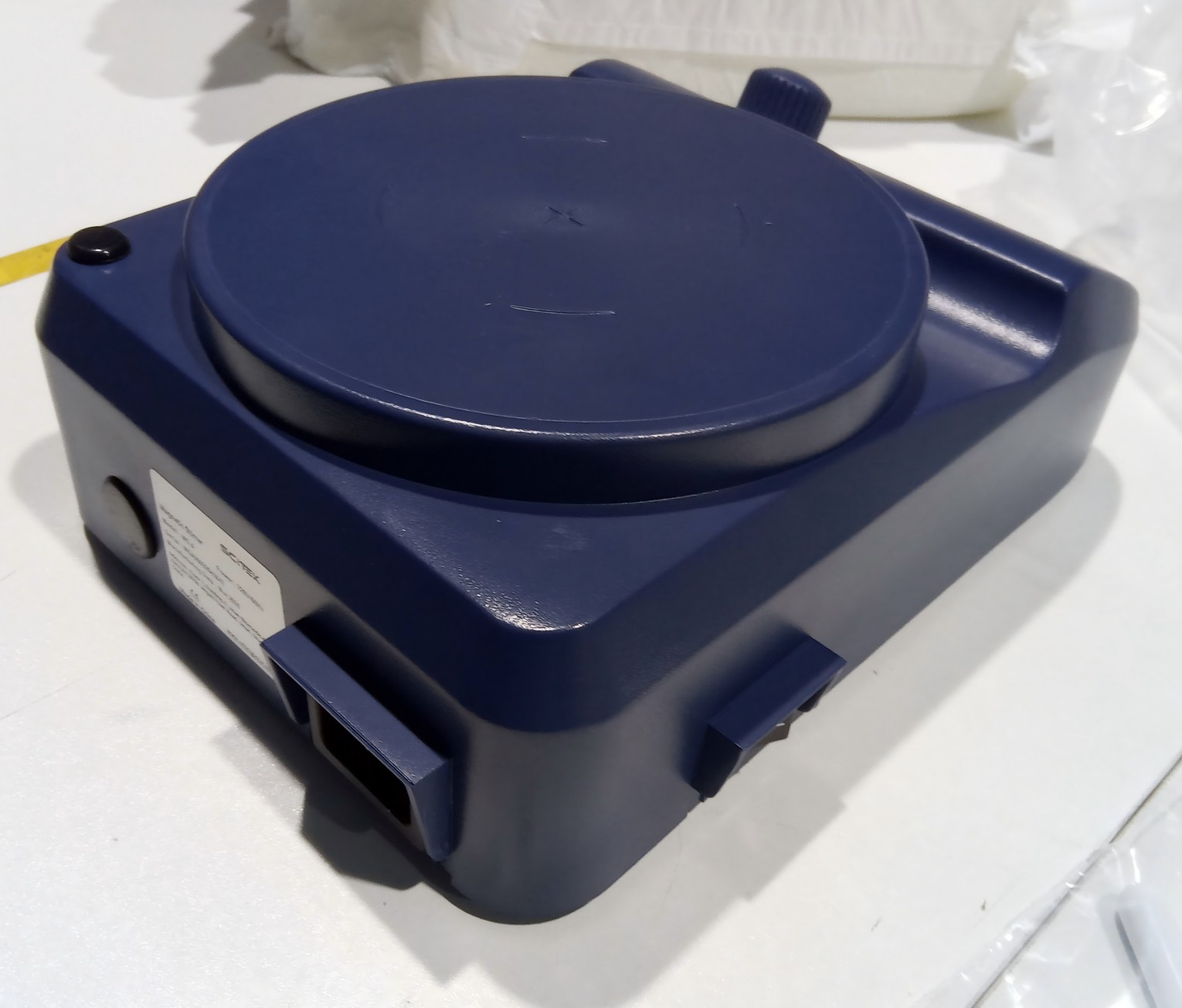

Magnetic Stirrer (3)

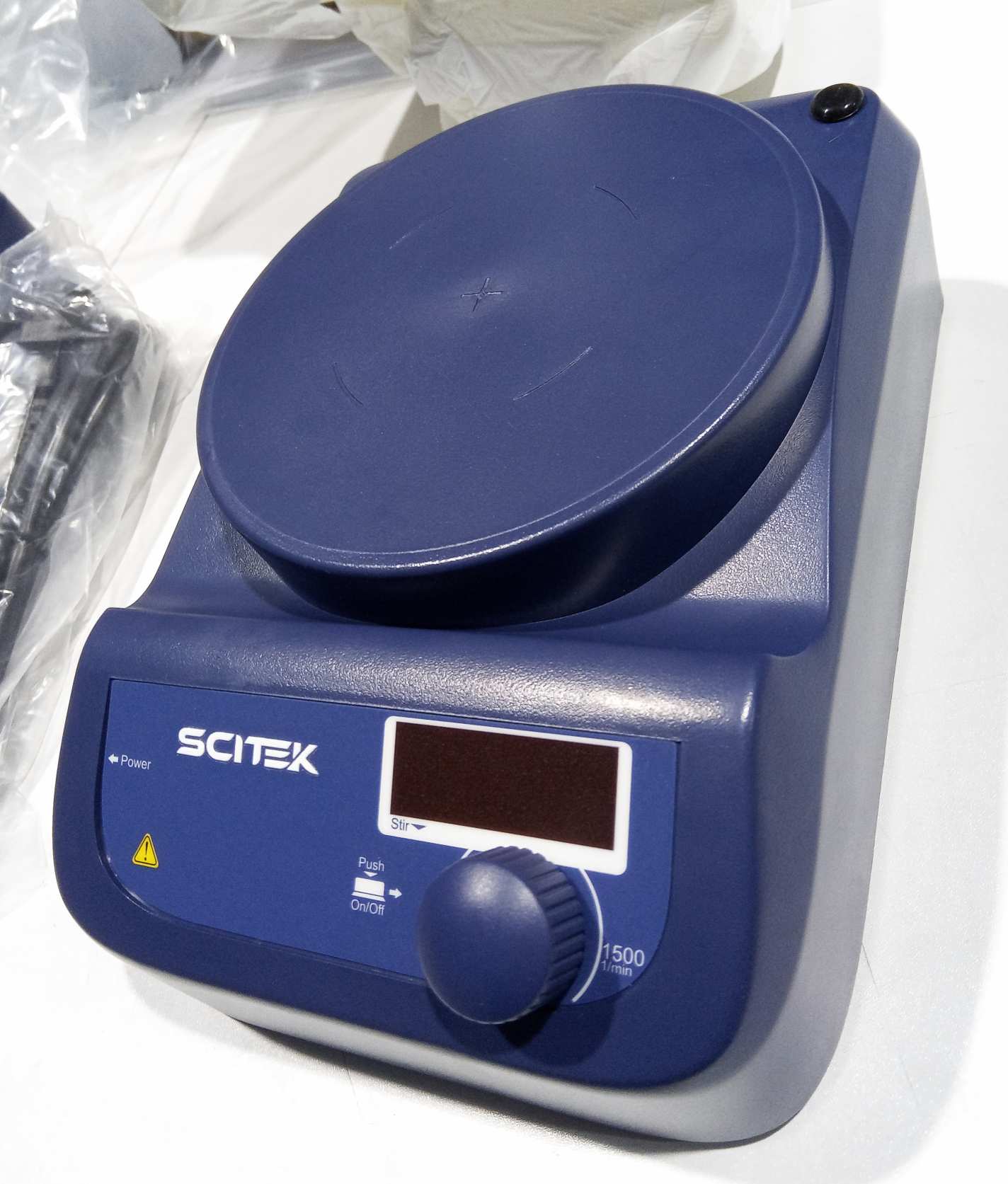

Magnetic Stirrer (7)

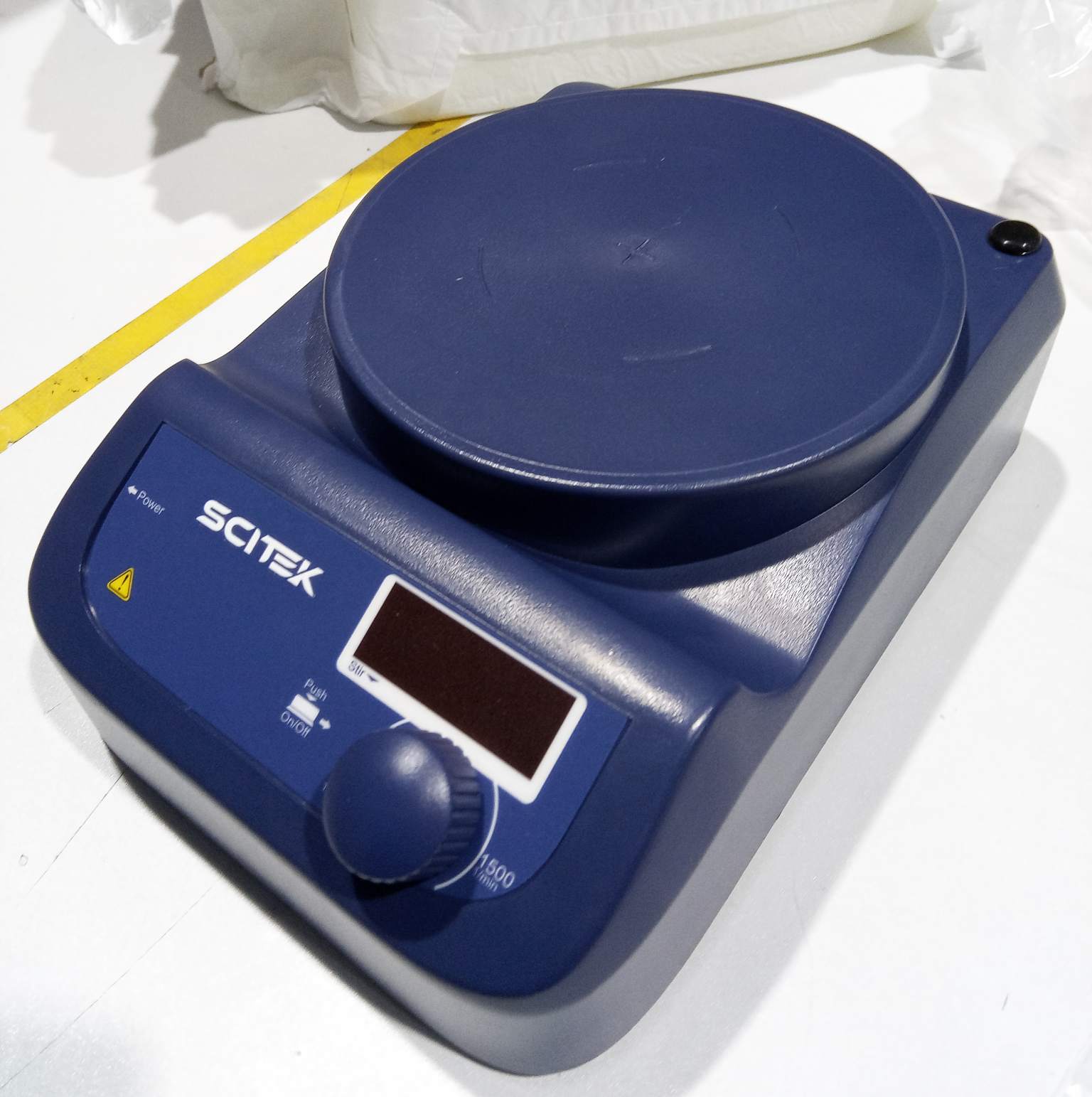

Magnetic Stirrer (5)

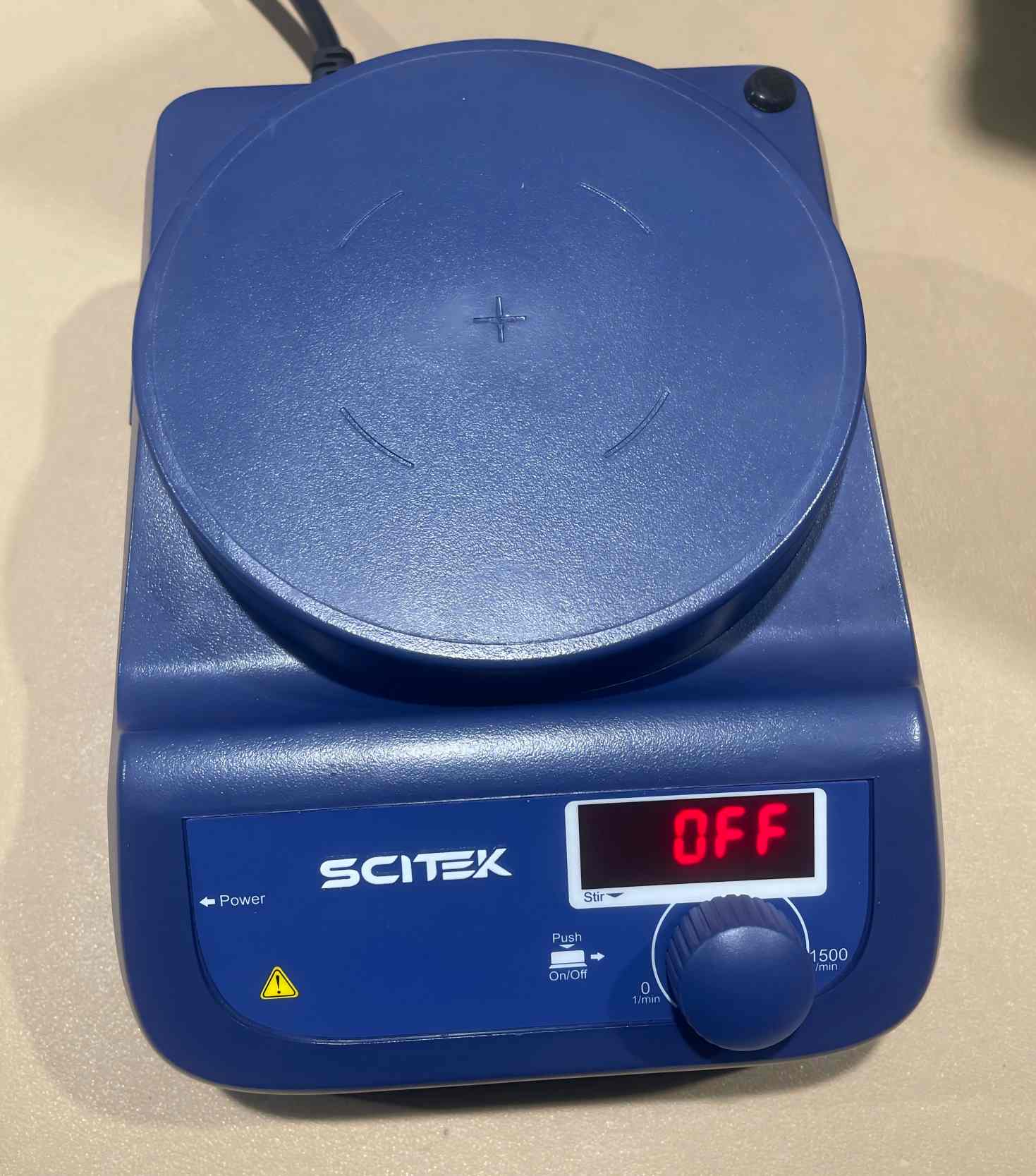

Magnetic Stirrer (6)

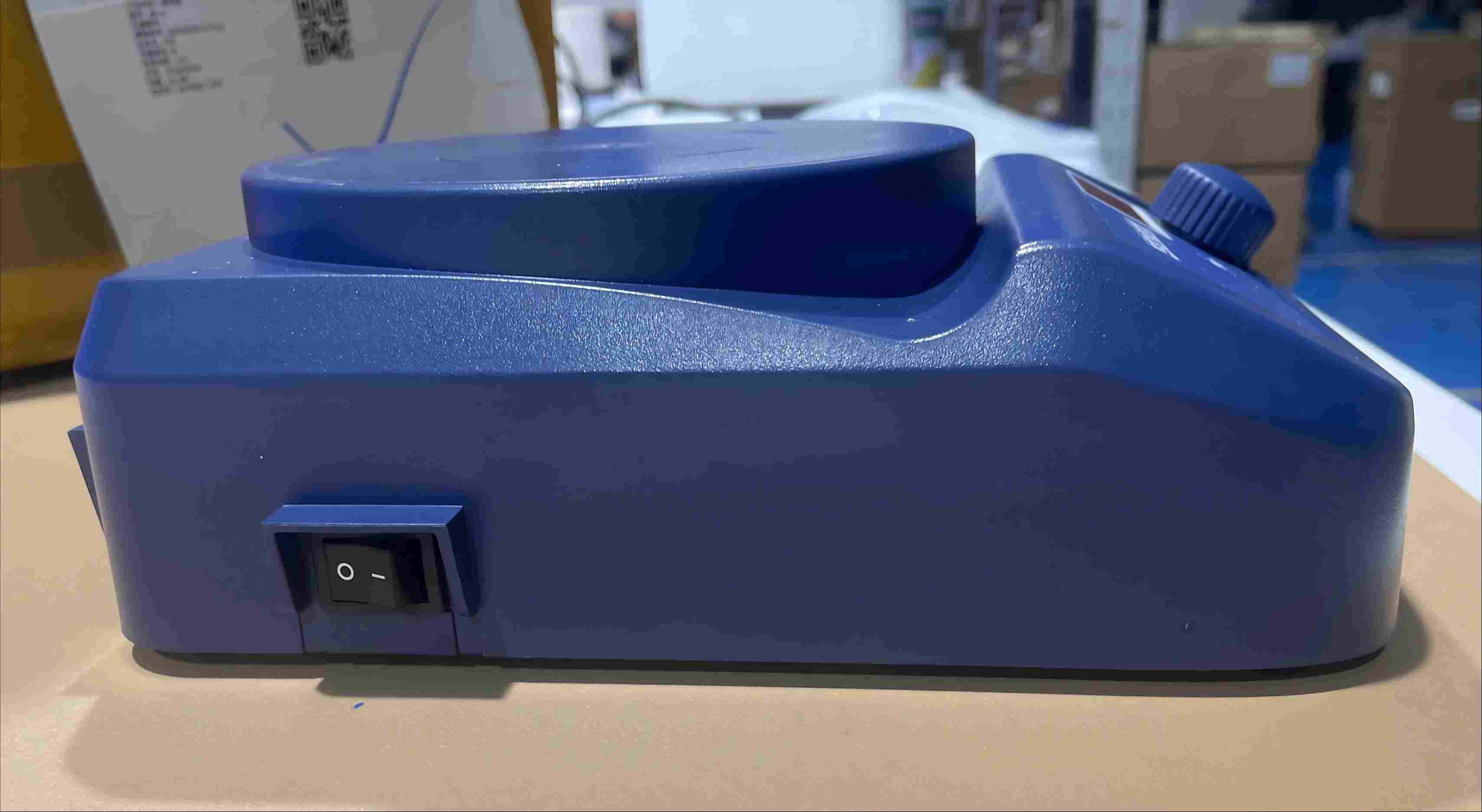

Magnetic Stirrer (4)

Magnetic Stirrer (2)


download Magnetic Stirrer MS-A MS-S.pdf
