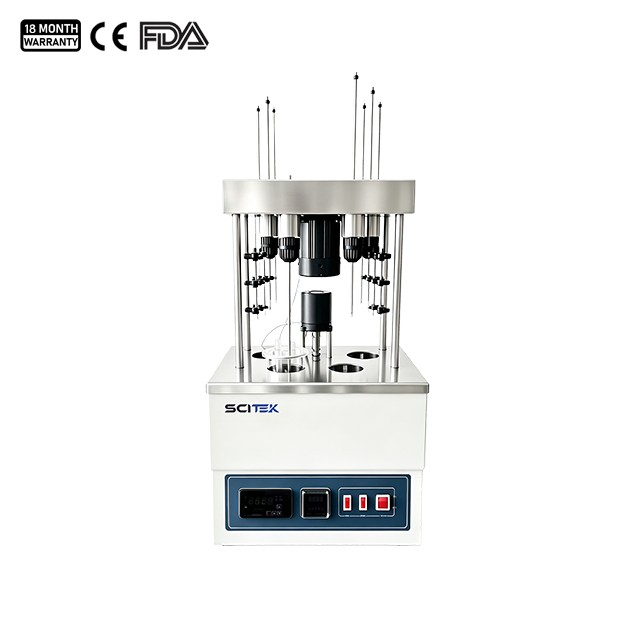

Lubricating Oils Rust-Preventing Characteristics Tester Application:
Lubricating Oils Rust-Preventing Characteristics Tester measure the rust-preventative properties of mineral oils containing inhibitors within aqueous mixtures. Commonly employed to simulate to simulate moisture ingress during equipment operation to precisely assess the oil's rust-preventive performance, functioning as essential quality control equipment for assessing oil quality in the power generation, petrochemical and aviation sectors, as well as in research institutes.
Lubricating Oils Rust-Preventing Characteristics Tester Feature:
Equipped with a 1000W auxiliary heater and a 600W temperature-control heater, balancing high efficiency with high precision.
Independent three-motor design for stable, reliable operation while eliminating mechanical crosstalk.
Specialized grinding chuck for steel rods with speeds reaching 1700–1800 r/min, optimizing the workflow.
Lubricating Oils Rust-Preventing Characteristics Tester Specification:
Model | LOT-1142 |
Heating Method | High-efficiency electric heating plate |
Temperature Control Point | 60 °C (Standard Test Temperature) |
Temperature Range | Ambient to 160 °C |
Temperature Accuracy | ± 0.5 °C |
Stirring Speed | 1,000 ± 50 rpm |
Pressure Monitoring | High-precision analog pressure gauge |
Specimen Stirring Motor | Power: 90 W, Rated Speed: 1,400 rpm |
Bath Circulation Motor | Power: 40 W, Rated Speed: 1,450 rpm |
Steel Bar Grinding Motor | Power: 60 W, Adjustable Speed: 1,700 to 1,800 rpm |
Heating System | Auxiliary Heating: 1000 W; |
Temperature Control Heating: 600 W; |
Power Supply | AC 220±10%V, 50/60Hz |
External Size (W×D×H) | 500×350×700 mm |
Shipping Size (W×D×H) | 590×430×780 mm |
N.W./G.W. | 32/43 kg |
